WPG MRTALP4625DC3 Operating Instructions Manual

Lowprofile manual rotator /tilter 600, dc-voltage, with intelli-grip® technology & pad frame t-arm assemblies
Hide thumbs Also See for MRTALP4625DC3:
Table of Contents

Advertisement

Quick Links

Download this manual
KEEP FOR FUTURE REFERENCE
OPERATING
INSTRUCTIONS
INTENDED FOR USE BY SKILLED
PROFESSIONALS • READ AND
UNDERSTAND BEFORE OPERATING
LOW-
PROFILE
MANUAL
ROTATOR
/TILTER 600,
DC-VOLTAGE,
WITH INTELLI-GRIP®
TECHNOLOGY & PAD
FRAME T-ARM ASSEMBLIES

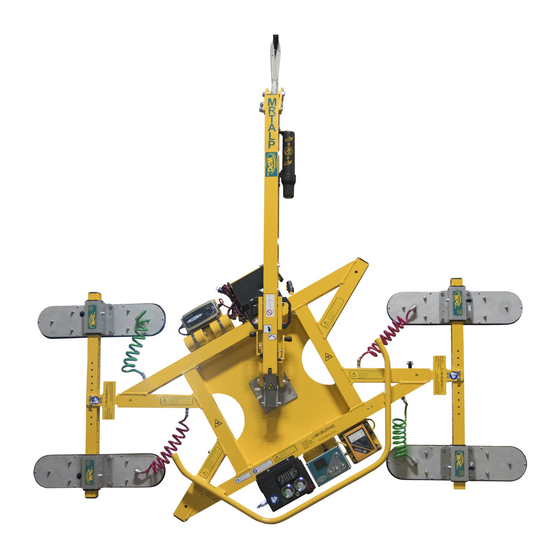

Model numbers: MRTALP4625DC3 (shown),
MRTALP410TDC3
Record serial number in blank space above (to locate, see serial
Rev 1.0/2-21
label on the product).
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341 (phone)
406-628-8231 (phone)
406-628-8354 (fax)
www.WPG.com
MRTALP4-DC3: #35058AUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRTALP4625DC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WPG MRTALP4625DC3

Summary of Contents for WPG MRTALP4625DC3

  • Page 1 UNDERSTAND BEFORE OPERATING LOW- PROFILE MANUAL ROTATOR /TILTER 600, DC-VOLTAGE, WITH INTELLI-GRIP® TECHNOLOGY & PAD FRAME T-ARM ASSEMBLIES Model numbers: MRTALP4625DC3 (shown), MRTALP410TDC3 Record serial number in blank space above (to locate, see serial Rev 1.0/2-21 MRTALP4-DC3: #35058AUS label on the product).
  • Page 2 MRTALP4-DC3: #35058AUS Rev 1.0/2-21...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ..................3 SAFETY....................5 OPERATING FEATURES................6 ASSEMBLY....................7 ...........9 SSEMBLE ISASSEMBLE THE RAME Installing/Removing T-Arm Assemblies................9 Installing/Removing Vacuum Pads..................9 Connecting/Disconnecting Vacuum Hoses ...............10 .................11 DJUST THE RAME Repositioning Vacuum Pads....................12 Repositioning T-Arm Cross Members................12 INTENDED USE ..................13 ................13 HARACTERISTICS ................13 PERATING NVIRONMENT...
  • Page 4 TABLE OF CONTENTS In Case of a Power Failure....................22 .................23 OTATE THE ..................24 ILT THE ............26 ELEASE THE ADS FROM THE ................27 FTER SING THE IFTER Transporting the Lifter ......................27 Storing the Lifter .......................27 INSPECTIONS AND TESTS..............29 ................29 NSPECTION CHEDULE ....................30 ESTING Lifter/Load Compatibility Test...................30...

  • Page 5: Specifications

    Designed for use with hoisting equipment, MRTALP4-DC3 lifters support loads using vacuum and Product Description manipulate loads using manual 180° rotation and mechanically assisted, manual 90° tilt motions. Model Number MRTALP4625DC3 MRTALP410TDC3 6" x 25" [15 cm x 64 cm] nominal diiameter 10" [25 cm] nominal diameter Vacuum Pads...
  • Page 6 SPECIFICATIONS Note: Standard MRTALP410TDC3 (top) and MRTALP4625DC3 models are shown. MRTALP4-DC3: #35058AUS Rev 1.0/2-21...

  • Page 7: Safety

    SAFETY Wear personal protective Make sure the contact surfaces of equipment that is appropriate for the load and vacuum pad are clean the load material. Follow trade before attaching the lifter (see association guidelines. “MAINTENANCE”). Do not remove or obscure safety Position the vacuum pads correctly labels.

  • Page 8: Operating Features

    16 BATTERY CHARGER 17 BATTERY Not shown: NOTIFICATION BUZZER Note: A standard MRTALP4625DC3 is shown. Although some of the following photos do not show this specific lifter, they all illustrate how this kind of lifter functions. For information about specific parts, see “REPLACEMENT PARTS”...

  • Page 9: Assembly

    ASSEMBLY 1) Remove all shipping materials and save them with the shipping container for future use. If necessary, assemble the lift bar (fig. 2A). Tighten the bolts (item 2 in fig. 2A) securely. 3) Adjust the lift point to optimize the lifter's hang angle: 3.1) Remove the retaining bolt (item 3 in fig.
  • Page 10 ASSEMBLY Make sure hook has restraining latch (circled). 4.3) Attach the hoisting hook to the lift point (fig. 4D-E). Only use rigging rated for Maximum Load Note: Use rigging (fig. 4F) as needed to make sure the Capacity plus Lifter Weight. hook does not interfere with the load.

  • Page 11: T O Assemble /Disassemble The Pad Frame

    ASSEMBLY SSEMBLE ISASSEMBLE THE RAME Installing/Removing T-Arm Assemblies Note: Always position T-arms as shown in “OPERATING FEATURES”. Insert a T-arm assembly into the pad frame (fig. 1A). 2) Use a cotterless hitch pin to secure the T-arm (fig. 2A). 3) Install the second T-arm assembly likewise. To remove the T-arm assemblies, reverse these steps.

  • Page 12: Connecting/Disconnecting Vacuum Hoses

    ASSEMBLY Connecting/Disconnecting Vacuum Hoses To connect a vacuum hose, push the male and female ends of Make sure quick the quick connector together until they lock (fig. 1A). connectors seal completely and all vacuum To disconnect a vacuum hose, move the release ring on the hoses function correctly (see female end until the quick connector separates (fig.

  • Page 13: T O Adjust The Pad Frame

    ASSEMBLY DJUST THE RAME The illustrations above show the range of MRTALP4-DC3 vacuum pad positions available to accommodate different load dimensions and weight distribution. Note: These adjustments do not affect the lifter’s Maximum Load Capacity. Rev 1.0/2-21 MRTALP4-DC3: #35058AUS...

  • Page 14: Repositioning Vacuum Pads

    ASSEMBLY Repositioning Vacuum Pads Remove the cotterless hitch pin (fig. 1A) that secures a sliding/movable pad mount to the pad frame. 2) Position the pad mount as required on the T-arm assembly. 3) Use the cotterless hitch pin to secure the pad mount. Repeat these steps to position other pad mounts as needed.

  • Page 15: Intended Use

    1..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 2..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information.

  • Page 16: Typical Applications

    1..Although lifter use may be possible at higher elevations, lifting capacity is reduced whenever the lifter is unable to attain vacuum in the green range on the vacuum gauges. Contact WPG for more information. 2..Special provisions may allow the lifter to operate outside the specified temperature range. Contact WPG for more information. MRTALP4-DC3: #35058AUS...

  • Page 17: Operation

    OPERATION EFORE SING THE IFTER Determine whether the vacuum lifter is capable of each intended task (see “SPECIFICATIONS” “INTENDED USE”). Then complete the following preparations: Taking Safety Precautions • Be trained in all industry and regulatory Read all directions and safety standards for lifter operation in your region.

  • Page 18: Performing Inspections And Tests

    OPERATION Performing Inspections and Tests • Follow the “I ” “T ”. NSPECTION CHEDULE ESTING • Service the 2 air filters whenever a bowl contains Examine air filters regularly liquid or other contaminates, or an element and service when needed. appears dirty (see “A ”...

  • Page 19: T O Attach The Pads To A Load

    OPERATION TTACH THE ADS TO A Make sure that the contact surfaces of the load and the vacuum pads are clean (see ). Positioning the Lifter on the Load Attach lifter to load as directed below. Failure to follow instructions could result in load damage or personal injury.

  • Page 20: Powering Up The Lifter

    OPERATION Powering up the Lifter Press the lifter's power button ( — fig. 1A). The vacuum pump will run for a few seconds, ® as a normal function of the Intelli-Grip self- diagnostics. The lifter automatically tests the 9-volt battery for the notification buzzer each time the lifter is powered up.

  • Page 21: Reading The Vacuum Gauges

    1..The gauge face colors do not correspond with the circuit colors. 2..If the lifter is used above the maximum Operating Elevation (see “SPECIFICATIONS”), it may not be able to maintain sufficient vacuum for lifting. Contact WPG for more information. Rev 1.0/2-21...

  • Page 22: Ift And Ove The Oad

    OPERATION IFT AND OVE THE About the Tilt Linkage The tilt linkage minimizes operator effort and Unbalanced loads may tilt automatically holds a balanced load in either unexpectedly during lifter operation. the upright or the flat position. However, an Make sure load is positioned unbalanced load may tilt unexpectedly, correctly on lifter.

  • Page 23: Interpreting The Lift Light

    OPERATION Interpreting the Lift Light When the vacuum lifter is ready to lift Never lift load unless lift the Maximum Load Capacity, the light is illuminated, vacuum lift light turns on automatically and because premature lifting could the vacuum pump turns off temporarily, to result in load release and personal injury.

  • Page 24: Controlling The Lifter And Load

    OPERATION Controlling the Lifter and Load When the lifter is ready, use the hoisting equipment to raise the lifter and load as needed. Use a control handle (circled in fig. 1A) to keep the lifter and load in the required position. Once there is enough clearance, you may move the load as required.

  • Page 25: T O Rotate The Load

    OPERATION OTATE THE Make sure load is positioned correctly on lifter (as previously directed). Never disengage rotation and tilt latches at the same time, because this could result in load damage or personal injury. Never rotate load when lifter is attached “above center” (see “T TTACH THE ADS TO...

  • Page 26: T O Tilt The Load

    OPERATION ILT THE Make sure load is positioned correctly on lifter (as previously directed). Never disengage tilt and rotation latches at the same time, because this could result in load damage or personal injury. Make sure the load has enough clearance to tilt without contacting anyone or anything.
  • Page 27 OPERATION A load with overhang may force you to release the handle as the load approaches the flat position. In this case, use hand cups (circled in fig. 1A) or other appropriate means to control the load. Note: The pad frame automatically latches when tilted to the vertical position.

  • Page 28: T O Release The Pads From The Load

    OPERATION ELEASE THE ADS FROM THE Make sure load is at rest and fully supported before releasing vacuum pads. 1) Hold the “function” button ( — fig. 1A) and the “release” button ( — fig. 1A). If the vacuum seal does not break, follow the directions on the LCD screen.

  • Page 29: After Using The Lifter

    OPERATION FTER SING THE IFTER Press the power button ( — fig. 1A) and the “function” button ( — fig. 1A) to power down the vacuum lifter. 2) Charge the battery after each workday as needed (see “12-V ATTERY ”). ECHARGE 3) Use the hoisting equipment to lower the lifter gently onto a stable support.
  • Page 30 OPERATION Disconnect the electrical connectors (figs. 3A-B and figs. 3C-E) to prevent battery discharge. 4) Store the lifter in a clean, dry location. Store the battery between 32° and 70° F [0° — 21° C]. Avoid storage above 100° F [38° C]. MRTALP4-DC3: #35058AUS Rev 1.0/2-21...

  • Page 31: Inspections And Tests

    2..The Periodic Inspection is also required whenever the lifter has been out of service for 1 year or more. Keep a written record of all Periodic Inspections. If necessary, return the lifter to WPG or an authorized dealer for repair (see “LIMITED...

  • Page 32: Testing

    12" Hg [-41 kPa] for 5 minutes. If not, lifting this load requires additional precautions (eg, a load sling). Contact WPG for more information. 8) Lower the load after 5 minutes or before the vacuum level diminishes to 12" Hg [-41 kPa].

  • Page 33: Operational Tests

    2..During this time, the LCD screen displays “WARNING: Is load attached?”, the notification buzzer chirps and the strobe light flashes. 3..For more information, search for your lifter’s Model Number on www.wpg.com and select the “Troubleshooting” link on the product page.

  • Page 34: Rated Load Test

    7) Prepare a written report of the test and keep it on file. 1..An equivalent simulation may also be used. Contact WPG for more information. 2..A “qualified person” has successfully demonstrated the ability to solve problems relating to the subject matter and work, either by possessing a recognized degree in an applicable field or a certificate of professional standing, or by possessing extensive knowledge, training and experience.

  • Page 35: Maintenance

    MAINTENANCE Note: Refer to SERVICE MANUAL #36106 when applicable. ACUUM AINTENANCE Pad-to-Load Friction Coefficient The friction coefficient represents the lifter's ability to resist load slippage. The Maximum Load Capacity assumes a friction coefficient of 1.0, based on testing of clean, new, standard rubber vacuum pads on clean, dry, regular glass.

  • Page 36: Pad Cleaning

    4) Allow the pad to dry completely before using the lifter. 1..A brush with bristles that do not harm rubber can help remove contaminates clinging to sealing edges. If these cleaning methods are not successful, contact WPG or an authorized dealer for assistance. MRTALP4-DC3: #35058AUS...

  • Page 37: T O Replace Sealing Ring In Vpfs10T Pads

    MAINTENANCE VPFS10T P EPLACE EALING ING IN If the lifter has VPFS10T vacuum pads, replace sealing rings (#49724RT or #49724TT) as follows: 1) Remove the old sealing ring (fig. 1A). Note: Make sure the entire vacuum pad is clean, including the mounting groove.

  • Page 38: Eplace Ad Nserts In Vpfs625 Pads

    MAINTENANCE VPFS625 P EPLACE NSERTS IN If the lifter has VPFS625 vacuum pads, replace pad inserts as follows: 1) Remove the lock nuts and washers that secure the top plate to the face plate of the pad assembly (fig. 1A). 2) Remove the top plate (fig.
  • Page 39 The red error light can indicate other problems, depending on the mode selected and level of charging; if necessary, contact WPG for assistance. 5..The charger automatically reduces the charging rate when the battery is fully charged.

  • Page 40: Notification Buzzer Battery Replacement

    MAINTENANCE OTIFICATION UZZER ATTERY EPLACEMENT 1) Power down the lifter. 2) Release the buzzer battery holder by pressing inward and sideward in the direction marked on the holder. Slide the battery tray out (fig. 3A). 4) Install a new 9-volt battery according to the polarity markings. 5) Slide the battery tray back into position.

  • Page 41: 12-Volt Battery Recharge

    MAINTENANCE ® D NTELLI IAGNOSTIC ODES Refer to the following table when a diagnostic code appears on the LCD screen. Codes are listed in alphanumeric order. If the Explanations/Directions do not resolve the issue, contact qualified service personnel. All relevant parts are listed in “REPLACEMENT PARTS”.
  • Page 42 MAINTENANCE Strobe Buzzer Code On-Screen Message Light Explanations/Directions Pattern Activity continuous Once “Power Save” mode is activated, “attach” and “Control head revision lockout” (while button (none) “release” functions are prevented in connection with Code is held) C06. Service is required. occasional “EEPROM error, cell #”...
  • Page 43 “Vacuum not increasing 1 chirp every V020 securely (see “Sealing the Pads on the Load” “Reading normally” 2 seconds the Vacuum Gauges”). This Code can be activated by use at high elevation. If so, contact WPG for directions. Rev 1.0/2-21 MRTALP4-DC3: #35058AUS...
  • Page 44 2 seconds system. See relevant topics in “ASSEMBLY,” “OPERATION” “INSPECTIONS AND TESTS”, and “MAINTENANCE”. In case of high elevation, contact WPG for directions. Once “Power Save” mode is activated, “attach” and “release” functions are prevented due to a vacuum sensor V040 “Lockout (vacuum sensor error)”...

  • Page 45: Replacement Parts

    Shoulder Bolt – Socket Head – 5/16" x 1/2" x 1/4-20 Thread (for mounting VPFS10T pads) * Length as required; sold by the foot (approx. 30.5 cm). SERVICE MANUAL #36106 for additional parts. ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 1.0/2-21...

  • Page 46: Limited Warranty

    Contact the WPG Technical Service Department. When factory service is required, ship the complete product – prepaid – along with your name, address and phone number to the street address listed at the bottom of this page. WPG may be reached by phone or fax numbers listed below.
  • Page 47 Rev 1.0/2-21 MRTALP4-DC3: #35058AUS...
  • Page 48 MRTALP4-DC3: #35058AUS Rev 1.0/2-21...
