KEEP FOR FUTURE REFERENCE
INSTRUCTIONS
International Version
P.O. Box 368 – 908 West Main
Laurel, MT USA 59044
phone 800-548-7341
phone 406-628-8231
STOCK NUMBER: 59418
fax 406-628-8354

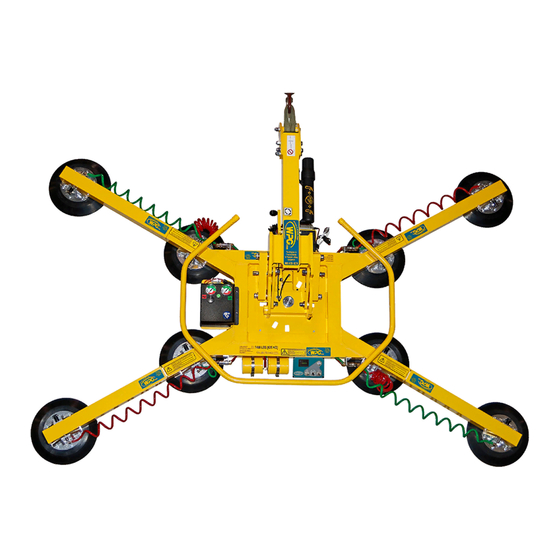

MRTA8 TILT LOCK
READ ALL INSTRUCTIONS AND WARNINGS
BEFORE USING THIS PRODUCT
DESIGNED FOR THE MATERIALS HANDLING PROFESSIONAL
Advertisement
Table of Contents
Related Manuals for WPG MRTA8
Summary of Contents for WPG MRTA8
- Page 1 International Version P.O. Box 368 – 908 West Main Laurel, MT USA 59044 phone 800-548-7341 phone 406-628-8231 STOCK NUMBER: 59418 fax 406-628-8354 MRTA8 TILT LOCK READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT DESIGNED FOR THE MATERIALS HANDLING PROFESSIONAL...
-
Page 3: Specifications
Option Weight: 4 lbs [2 kg] Note: Make sure to add the weight of all options to the Lifter Weight when you are selecting appropriate hoisting equipment (see ASSEMBLY in MRTA8 lifter's instruction manual). WARNINGS Powr-Grip is pleased to offer the most reliable materials handling products available. -
Page 4: Installation
INSTALLATION 1) TILT STOP CAM (vertical/existing) 2) 1/4" DIA. X 5/16" SHOULDER SCREW 3) TILT LOCK RAMP PLATE (vertical) 4) 1/4-20 X 1/2" FLAT-HEAD SCREW 5) SPRING W/MOUNTING RING 6) 3/8" ID FLAT WASHER 7) TILT LOCK CATCH PLATE 8/9) 3/8" DIA X 5/16" SHOULDER SCREW 10) 1/4-20 X 3/4"... - Page 5 5) If either of the tilt lock plate slots do not align with the tilt linkage, the width of the tilt lock plate assembly may be adjusted, as follows: Loosen the four 1/4-20 x 3/4" socket-head screws (#10), to allow the individual sections of the lock plate assembly to slide with respect to each other.
-
Page 6: Operation
(such as when using the lifter to install glass in multi-story buildings). The Tilt Lock is a secondary safety device and does not eliminate the need to load the lifter correctly (see OPERATION: T in MRTA8 lifter's instruction manual). PPLY THE ADS TO A Caution: Failure to load lifter correctly may damage Tilt Lock or other lifter components. -
Page 7: Maintenance
MAINTENANCE When performing inspections and tests as directed in the MRTA8 lifter's instruction manual, be sure to include all parts of the Tilt Lock whenever applicable. REPLACEMENT PARTS LIST Stock No. Description (with # from INSTALLATION illustration) Qty. 66464 1/4-20 Thread x 3/8" Long Locking Spring Plunger with Round Knob 65027 0.3125"... -
Page 8: Limited Warranty
LIMITED WARRANTY Powr-Grip products are carefully constructed, thoroughly inspected at various stages of production, and individually tested. They are warranted to be free from defects in workmanship and materials for a period of one year from the date of purchase. If a problem develops during the warranty period, follow the instructions hereafter to obtain warranty service. - Page 9 Rev 1.0/2-17 #35204...
- Page 10 Rev 1.0/2-17 #35204...
