TABLE OF CONTENTS SPECIFICATIONS ..................3 SAFETY....................5 OPERATING FEATURES................6 ASSEMBLY....................7 INTENDED USE ..................9 .................9 HARACTERISTICS ..................10 NDIRECT OADING ................10 PERATING NVIRONMENT ................10 ISPOSAL OF THE IFTER OPERATION..................11 ................11 EFORE SING THE IFTER Taking Safety Precautions ....................11 Performing Inspections and Tests ..................11 .................12 SE THE HUTOFFS...
Page 4
Pad-to-Load Friction Coefficient ..................24 Pad Inspection ........................24 Pad Cleaning ........................25 VPFS10T P ..........26 EPLACE EALING ING IN REPLACEMENT PARTS................27 REGISTRATION AND LIMITED WARRANTY ..........28 WPG P ...............28 EGISTER THIS RODUCT ..............28 BOUT THE IMITED ARRANTY Obtaining Warranty Service or Repair Service..............28 MT-10TAC: #35089...
(see definition under “Rated Load Test”). 2..Available with other rubber compounds for special purposes (see www.wpg.com). 3..Vacuum pads, filter elements and other wear-out items are excluded. Rev 32.0/11-23...
Page 6
SPECIFICATIONS Note: Standard MT-10T vacuum lifters are shown. MT-10TAC: #35089 Rev 32.0/11-23...
SAFETY Wear personal protective equipment Make sure the contact surfaces of the that is appropriate for the load load and vacuum pads are clean material. Follow trade association before attaching the lifter (see guidelines. “MAINTENANCE”). Do not remove or obscure safety Position the vacuum pads correctly on labels.

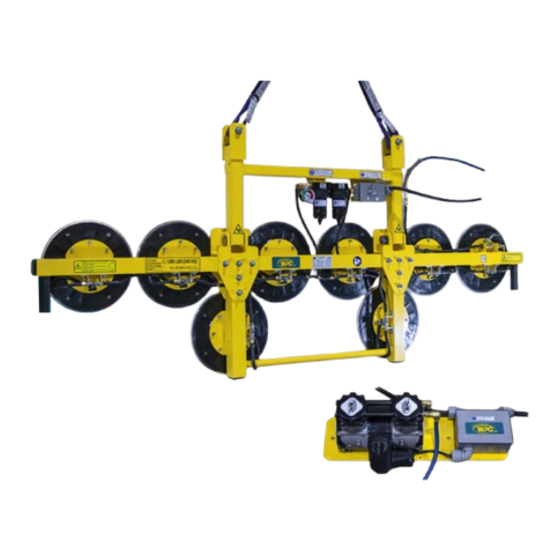

OPERATING FEATURES Features shown here are underlined on their first appearance in each section following. LIFT SLING VACUUM PAD PAD FRAME PAD SHUTOFF POWER SWITCH VACUUM CONTROL VALVE VACUUM GAUGE CONTROL HANDLES AIR FILTERS 10 VACUUM PUMP ASSEMBLY Note: A standard MT810TAC is shown. Although some of the following photos do not show this specific lifter, they all illustrate how this kind of lifter functions.
ASSEMBLY 1) Remove all shipping materials and save them with the shipping container for future use. 2) Suspend the lifter from appropriate hoisting equipment: 2.1) Select a crane and/or hoist rated for the Maximum Load Capacity plus the Lifter Weight. Note: Any lifter use must comply with all statutory or regulatory standards for hoisting equipment in your region.
Page 10
ASSEMBLY 3) Attach the vacuum pump assembly securely to the hoisting equipment in a protected location where the vacuum package will move with the lifter and will not interfere with 1, 2 hoisting equipment (see arrows in fig. 3A for two potential mounting locations). Connect the power cable: Make sure power source has ground fault circuit interrupter.
2..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 3..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information.
1..Although lifter use may be possible at higher elevation, lifting capacity is reduced whenever the lifter is unable to attain vacuum in the green range on the vacuum gauge. Contact WPG for more information. 2..Special provisions may allow the lifter to operate outside the specified temperature range. Contact WPG for more information. MT-10TAC: #35089...
OPERATION EFORE SING THE IFTER Determine whether the vacuum lifter is capable of each intended task (see “SPECIFICATIONS” “INTENDED USE”). Then complete the following preparations: Taking Safety Precautions • Be trained in all industry Read all directions and safety rules before using and regulatory standards lifter.
OPERATION SE THE HUTOFFS Each pad shutoff on the pad frame controls the vacuum line to the adjacent vacuum pad. Activating or deactivating the airflow at specific pads enables the lifter to handle loads with different weights and dimensions (see “SPECIFICATIONS”) or to avoid holes in the load surface. To support the maximum load weight and larger load Closing any pad shutoff dimensions, all pads must be activated;...
OPERATION TTACH THE ADS TO A Generating Airflow Place the power switch in the “on” position ( — fig. 1A), to engage the vacuum pump. Keep pump running throughout lift. The lifter is designed for the vacuum pump to run continuously.
2..Although a vacuum pad may become distorted during shipping or storage, this condition should correct itself with continued use. 3..If the lifter is used above the maximum Operating Elevation (see “SPECIFICATIONS”), it may not be able to maintain sufficient vacuum for lifting. Contact WPG for more information. MT-10TAC: #35089...
OPERATION IFT AND OVE THE Interpreting the Vacuum Gauge Vacuum is sufficient to lift the Never lift load unless vacuum gauge registers Maximum Load Capacity in the green range, because premature lifting whenever the vacuum gauge registers could result in load release and personal injury. in the green range.
OPERATION Never allow any pad shutoff to be opened or closed while lifting, because this could result in a load release and personal injury. In Case of a Power Failure A vacuum reserve tank helps maintain vacuum temporarily in the event of a power failure. Although the lifter is designed to support the load for at least 5 minutes without power, this depends on many factors, including the “L...
OPERATION ILT THE 1) Make sure the load has enough clearance to tilt without contacting anyone or anything. 2) Tilt the load to the position needed: • Tilting the load to the upright position (fig. 1A) happens automatically when it is lifted. •...
OPERATION ELEASE THE ADS FROM THE Make sure load is at rest and fully supported before releasing vacuum pads. Do not move lifter until pads release completely, because such movement could result in load damage or personal injury. Place the vacuum control valve lever perpendicular to the vacuum line (ie, “release”...
OPERATION Storing the Lifter Disconnect the electrical connectors (figs. 1A-1B). Use the covers supplied to keep the vacuum pads clean (fig. 2A). CE/UKCA – To prevent the lifter from tipping over on relatively horizontal surfaces, place the vacuum pads facedown on a clean, smooth, flat surface.
2..The Periodic Inspection is also required whenever the lifter has been out of service for 1 year or more. Keep a written record of all Periodic Inspections. If necessary, return the lifter to WPG or an authorized dealer for repair (see “REGISTRATION AND LIMITED...
12" Hg [-41 kPa] for 5 minutes. If not, lifting this load requires additional precautions (eg, a load sling). Contact WPG for more information. 8) Lower the load after 5 minutes or before the vacuum level diminishes to 12" Hg [-41 kPa].
INSPECTIONS AND TESTS Perform the following tests before placing the lifter in service initially, following any repair, when directed in the “I ”, or whenever necessary: NSPECTION CHEDULE Operational Tests Test all features and functions of the lifter (see “OPERATING FEATURES” and “OPERATION”). Vacuum Test 1) Clean the faces of the vacuum pads (see “Pad...
7) Prepare a written report of the test and keep it on file. 1..An equivalent simulation may also be used. Contact WPG for more information. 2..A “qualified person” has successfully demonstrated the ability to solve problems relating to the subject matter and work, either by possessing a recognized degree in an applicable field or a certificate of professional standing, or by possessing extensive knowledge, training and experience.
MAINTENANCE Note: Refer to SERVICE MANUAL #36275 when applicable. ACUUM AINTENANCE Pad-to-Load Friction Coefficient The friction coefficient represents the lifter's ability to resist load slippage. The Maximum Load Capacity assumes a friction coefficient of 1, based on testing of clean, new, standard rubber vacuum pads on clean, dry, regular glass.
4) Allow the pad to dry completely before using the lifter. 1..A brush with bristles that do not harm rubber can help remove contaminates clinging to sealing edges. If these cleaning methods are not successful, contact WPG or an authorized dealer for assistance. Rev 32.0/11-23...
MAINTENANCE VPFS10T P EPLACE EALING ING IN If the lifter has VPFS10T vacuum pads, replace sealing rings (#49724RT or #49724TT) as follows: 1) Remove the old sealing ring (fig. 1A). Note: Make sure the entire vacuum pad is clean, including the mounting groove.
* — Quantity as required ** — Length as required; sold by the inch (approx 2.5 cm). SERVICE MANUAL #35275 for additional parts. ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 32.0/11-23 MT-10TAC: #35089...
PRODUCT REGISTRATION page at wpg.com and complete the form. Registration keeps you advised of important updates and notifications, and simplifies inquiries to WPG regarding your product. Registration is not required to activate your Limited Warranty (see next section). BOUT THE...
