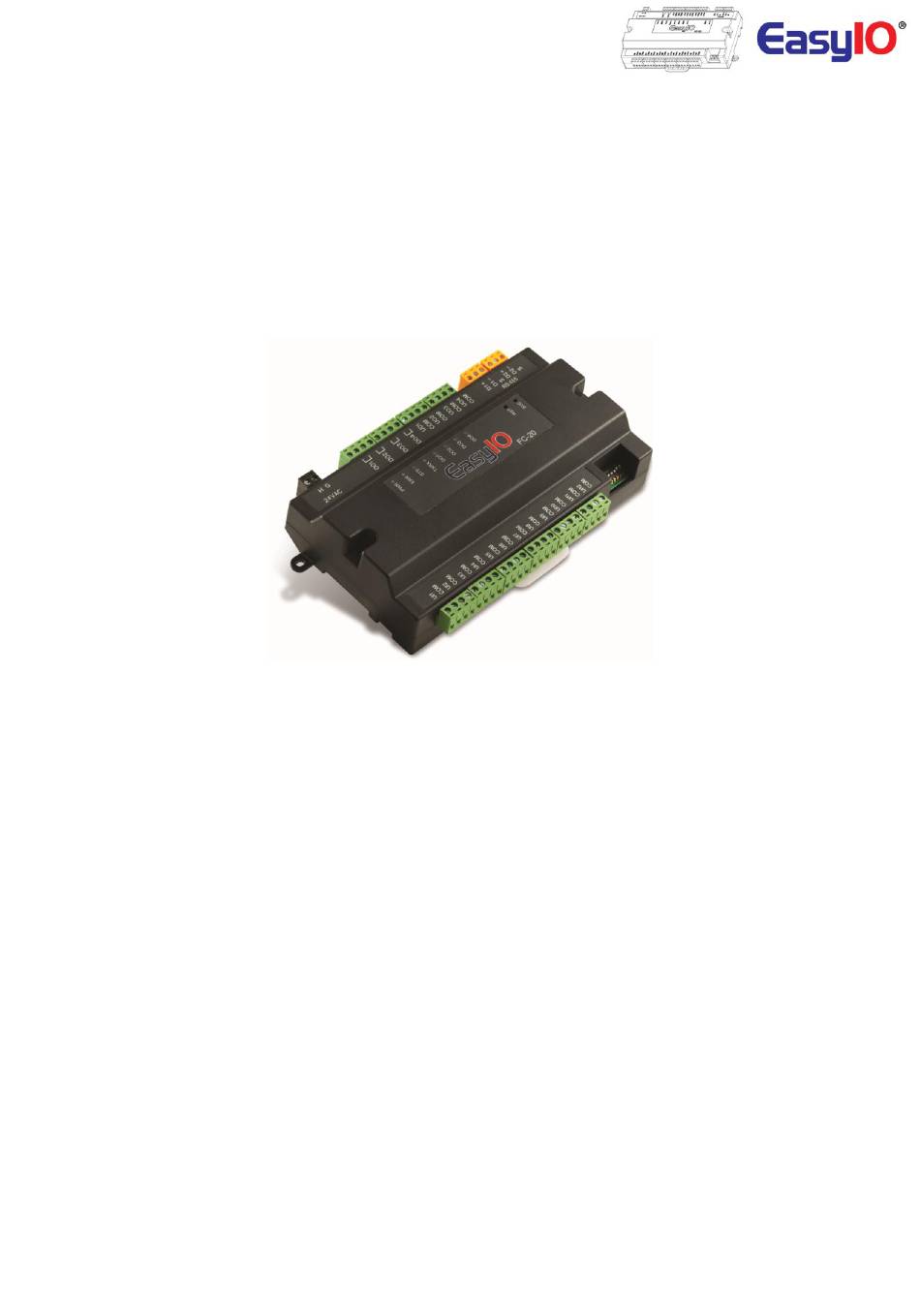

- Page 1 EasyIO FC-20 – Installation Guide FC20 Series Installation Guide...
- Page 2 EasyIO FC-20 – Installation Guide Document Change Log Feb 2013 Document created. Jan 2018 Updated disclaimer and support channel emails addresses...
- Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
- Page 4 EasyIO FC-20 – Installation Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Table Of Contents
EasyIO FC-20 – Installation Guide Table of Contents Introduction ..............................6 Dimension ............................... 6 Physical Installation Instructions ........................8 Opening the Top Cover ..........................11 Technical Support ............................12... -
Page 6: Introduction
EasyIO FC-20 – Installation Guide Introduction This document provides the installation guide/mounting guide for the EasyIO FC-20 controller. Do not mount the EasyIO FC-20: In an area where excessive moisture, corrosive fumes or explosion vapors are present. Where excessive vibration or shock is likely occur... - Page 7 EasyIO FC-20 – Installation Guide Side view and back view. Improved DIN rail mounting for easy dismantling. Alternate mounting option dimension...
-
Page 8: Physical Installation Instructions
EasyIO FC20 – Installation Guide v1.1 Physical Installation Instructions Step 1 Securely fasten the DIN rail to the enclosure base plate. Typical industrial DIN rail, 35mm Step 2 Use a screwdriver to unlock the 2 numbers of locking clips. - Page 9 EasyIO FC20 – Installation Guide v1.1 Step 3 Position the EasyIO FC-20 on the DIN rail mount till it hooks over the top edge of the DIN rail. Push the controller towards the bottom part of the DIN rail Step 4 Press/flatten the EasyIO FC-20 to make sure the bottom of the base cover touches the enclosure base plate.
- Page 10 Image shows a typical “DIN rail end clip(end stopper)” The EasyIO FC-20 comes with 2 mounting holes as optional mounting. Occasionally if DIN rail mounting is not practical, you can use screws to mount the EasyIO FC-20 to an enclosure base plate.
-
Page 11: Opening The Top Cover
EasyIO FC20 – Installation Guide v1.1 Opening the Top Cover Step 1 Use a Philips screwdriver to unscrew the 2 Philips screw located on top the top cover. Remove the 2 Button Head Philips screws Step 2 Hold both end of the top cover to lift up the top cover. Occasionally a small flat head screw driver might come handy in case the top cover stuck to the bottom cover. -
Page 12: Technical Support
EasyIO FC20 – Installation Guide v1.1 Technical Support For technical issue, please contact Worldwide and Asia Pacific Support support@easyio.com Americas Support support@easyio.pro Europe Support support@easyio.eu...
