EasyIO FT Series – User Reference v1.0
EasyIO FT Series User Reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EasyIO FT Series

Summary of Contents for EasyIO FT Series

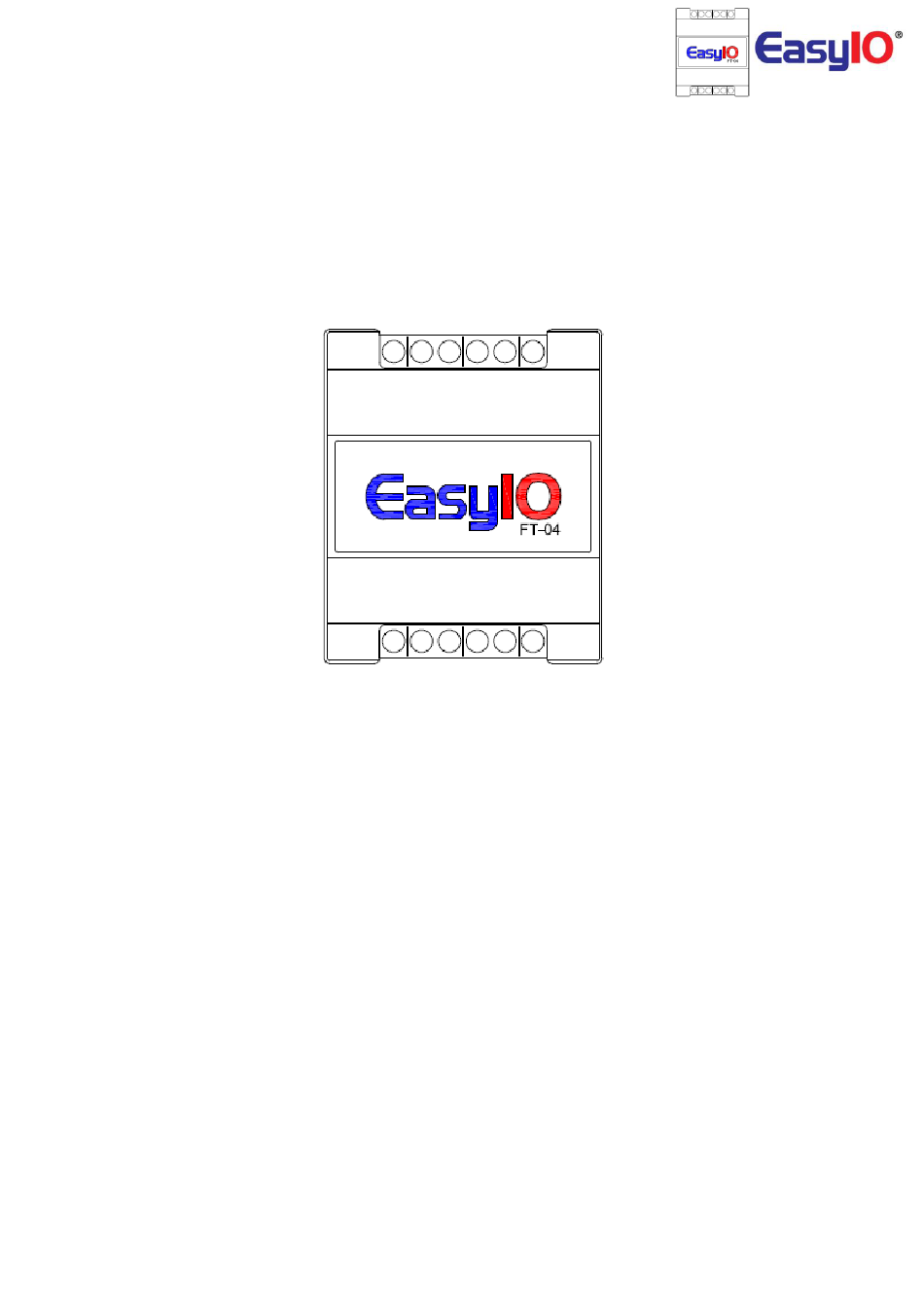

  • Page 1 EasyIO FT Series – User Reference v1.0 EasyIO FT Series User Reference...
  • Page 2 EasyIO FT Series – User Reference v1.0 Document Change Log Jan 2018 Document created.
  • Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
  • Page 4 EasyIO FT Series – User Reference v1.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    Establish a connection for the first time ....................... 14 AP Config..............................15 Establish connection of FT to a Wi-Fi network ..................... 16 Scan Wi-Fi ..............................16 Connecting to FT Series (CPT Tool) ....................... 17 LED Indicator ..............................18 Technical Support ............................18...

  • Page 6: Prerequisites

    Introduction EasyIO FT Series is the most smallest wireless Sedona controller in the market. It is equipped with a all in one microprocessor with built in Wi-Fi, the first in the Automation industry, with a 240MHz processor and also with a lightweight freeRTOS V8.2.0 OS for premium performance.

  • Page 7: Hardware Configurations

    Hardware Configurations Power supply Connection Both AC and DC can be used for EasyIO FT Series controller. Refer to electrical specification for the working range. In order to avoid damage on the controller input/output devices and RS485 connection, use individual power supply for each controller. If a single power supply is used to power up multiple EasyIO FW series, make sure controller power supplies are connected with the same polarity.

  • Page 8: Input Output Configuration

    EasyIO FT Series – User Reference v1.0 Input Output configuration FT Series range of products comes in few options. Options are referring to IO (Input/Output) configurations. EIA-485 Protocol Supported Model FT-04B Sedona BACnet IP server (Voltage Only) Jumpers Configurations Below image shows the jumper setting for Universal Input and Watchdog Jumper...

  • Page 9: Wiring Diagram

    EasyIO FT Series – User Reference v1.0 Wiring diagram Below diagram shows the general wiring diagram for FT series according to its model.

  • Page 10: Digital Output Wiring Connection

    EasyIO FT Series – User Reference v1.0 Digital Output Wiring Connection EasyIO FT Series digital output is for general purpose isolated digital output connections (relay output). Pilot Duty rating is as below (Pilot Duty);  24 VAC , 2.0A ...

  • Page 11: Analog Output Connection

    EasyIO FT Series – User Reference v1.0 Analog Output Connection EasyIO FT series has Analog Output connections. Each Analog Output can only drive voltage. The working range for voltage is 0 – 10V. Universal Output 1 ~ 2 Channels Voltage: 0 – 10VDC , Min Impedance 10K Ohm.

  • Page 12: Universal Input Connection

    EasyIO FT Series – User Reference v1.0 Universal Input Connection EasyIO FT series has non-isolated universal inputs. The universal input supports two type of analog signal i.e. resistance and voltage via hardware jumper and internal register settings: Universal Input 2 Channel...

  • Page 13: Network And Wireless

    Access Point SSID : FT-xxxxxx , where xxxxxx is the last 6 digit of the MAC address. Mac Address label located at the bottom casing of each FT series controller. The MAC address label is available below circuit board as well Password for FT-xxxxxx SSID by default is 12345678.

  • Page 14: Login Details

    A brand new FT controller Wi-Fi Access Point is always enable. It has DHCP server enable. The best approach to connect to a brand new FT series controller is by utilizing its DHCP server and run automatic IP address in your device.

  • Page 15: Ap Config

    EasyIO FT Series – User Reference v1.0 Step 3 Use any HTML5 compatible web browser and connect to the FT controller with the IP address 192.168.4.1. Step 4 Once connected you should be able to see 3 options. AP Config...

  • Page 16: Establish Connection Of Ft To A Wi-Fi Network

    Establish connection for the first time In this chapter we will guide you to connect the FT Series controller to a Wi-Fi network. Once this chapter is completed your FT series controller is a Wi-Fi client to a Wi-Fi network.

  • Page 17: Connecting To Ft Series (Cpt Tool)

    Before proceeding to this chapter, please make sure you manage to connect to the FT controller using the above chapter, Establish connection for the first time In this chapter we will guide you to connect to a EasyIO FT Series controller with CPT tools for programming.

  • Page 18: Led Indicator

    EasyIO FT Series – User Reference v1.0 Step 2. A successful connection will open the FW Series Sedona programming environment. Proceed to create your Sedona program, installing additional kits and etc. LED Indicator Colour Behaviour Description Constantly Blinking at 1 Hz...

This manual is also suitable for:

Ft-04bFt-04
