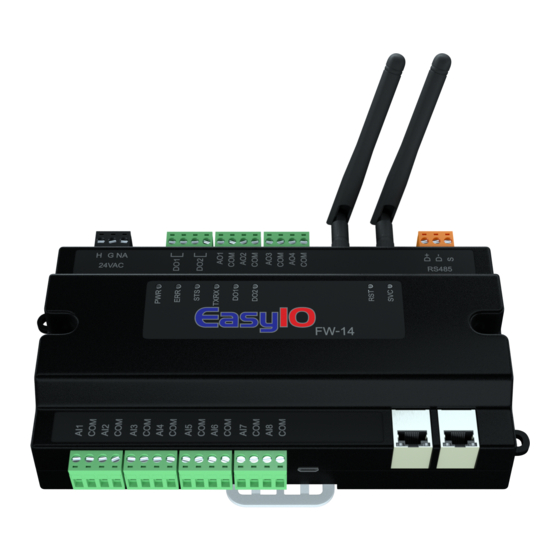

EasyIO FW-14 V3 - Instruction Manual
Installation Guide on typical industrial 35mm DIN rail
Pull to Unlock the Clip
Push to lock clip
Wiring Guide
WARNING
: Class 2 Devices Wiring Only – Do Not Reclassify and Install as Class 1, 3 or Power and Lighting
Wiring
ATTENTION
: Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer
avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage.
DO1 ~ DO2 is a voltage free contact. External power source is needed either 24 Vac or 24 Vdc.
V1.01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EasyIO FW-14 V3
Summary of Contents for EasyIO FW-14 V3
- Page 1 EasyIO FW-14 V3 - Instruction Manual Installation Guide on typical industrial 35mm DIN rail Pull to Unlock the Clip Push to lock clip Wiring Guide WARNING : Class 2 Devices Wiring Only – Do Not Reclassify and Install as Class 1, 3 or Power and Lighting...
- Page 2 EasyIO FW-14 V3 - Instruction Manual Input Rating (UL Listing) Type Rating Terminal Supply 24Vac(+/-5%), 20VA; 24Vdc(+15%/-15%), H (Vcc), G (Ground) 15VA, Class 2 Universal Inputs Voltage: 0-10 Vdc Class 2; UI1 ~ 8 and COM (8 sets) Resistance: 500-500K Ohms...
- Page 3 EasyIO FW-14 V3 - Instruction Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
