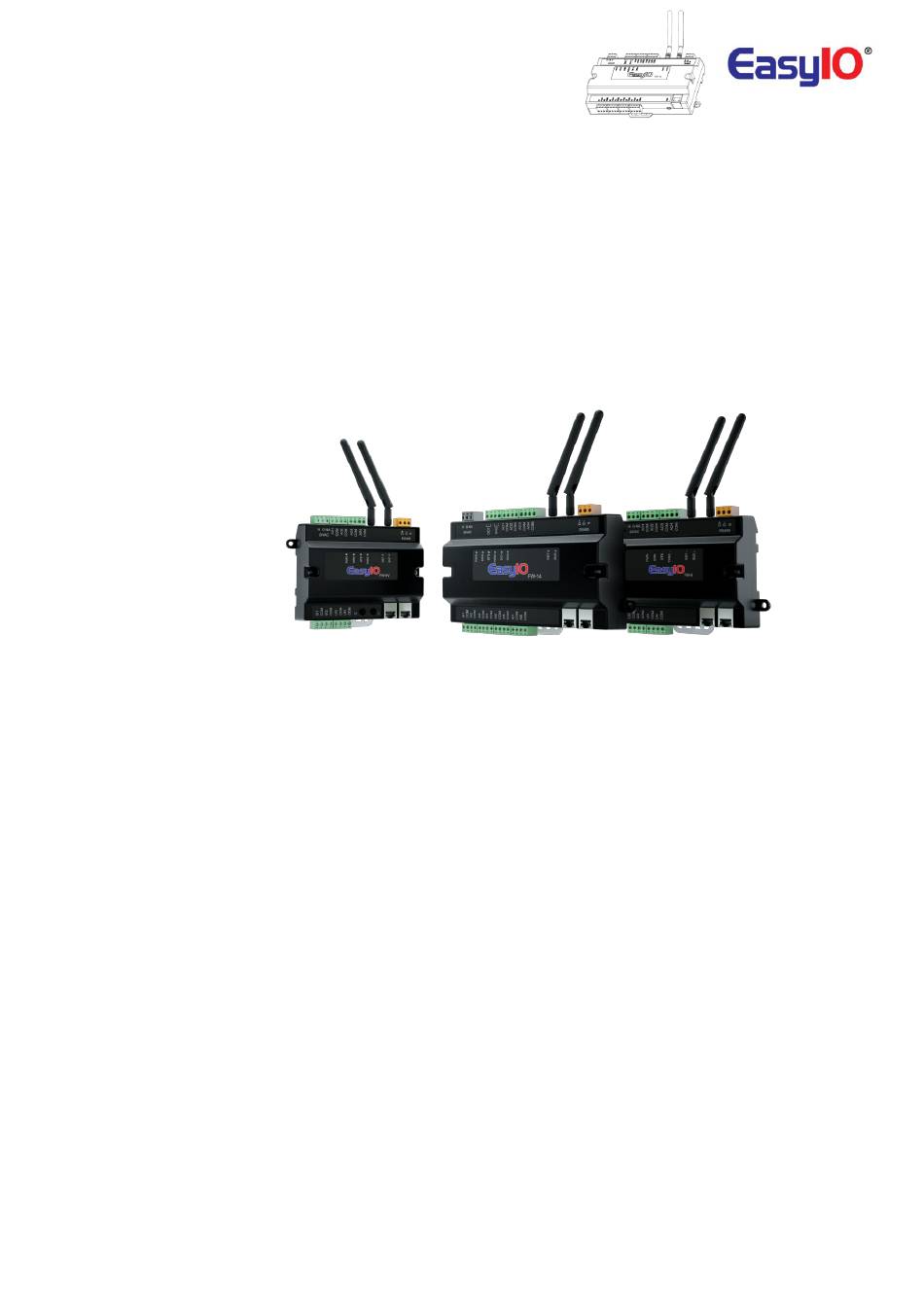

- Page 1 FW Series – firmware upgrade guide v2.0 EasyIO FW Series Firmware Upgrade guide...
- Page 2 FW Series – firmware upgrade guide v2.0 Document Change Log August 2017 Document created. Dec 2018 Updated disclaimer and support channel emails addresses May 2019 Update to include FW-28...
- Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
-
Page 4: Table Of Contents
FW Series – firmware upgrade guide v2.0 Table of Contents Introduction ..............................5 Login Details for Web Browser ........................5 Precaution ............................... 5 Prerequisites ..............................6 Firmware Upgrade Procedure ........................6 Kits version VS Firmware version ........................11 Technical Support ............................12... -
Page 5: Introduction
FW Series – firmware upgrade guide v2.0 Introduction All products in the FW Series are equipped with a built-in “boot -loader”. This feature is designed save time and effort when updating the controller firmware. Firmware upgrade process for FW series is done through web browser. -
Page 6: Prerequisites
(For detail user guide about wifi network please refer to EasyIO FW Series – User Reference) By default the EasyIO FW controller SSID is FW-xxxx , where xxxx is the last 4 digit of the MAC address. Default password for the SSID is 12345678 EasyIO FW-xxxx SSID will automatically assign an IP address for computer. - Page 7 Then select Utility menu, Step 7 Once you are in the utility page, select Firmware Upgrade option. Step 8 Locate the firmware file in your computer and reference to it. FW series firware file extension is *.tar.gz or *tar.zz.
- Page 8 EasyIO for recovery process. Ensure the controller is supplied with a constant 24Vac or 24Vdc supply during the flashing...
- Page 9 “platform” (plat) in the service folder or login to the web browser and go to the firmware upgrade page to verify the firmware and MCU version. **V1 FW Series will has a version number of V1.0bxx** **V2 FW Series will has a version number of V2.0bxx** Version property slot shows the version number.
- Page 10 FW Series – firmware upgrade guide v2.0 Image above is a V1 FW series controller. Image above is a V2 FW series controller.
-
Page 11: Kits Version Vs Firmware Version
Segment 4 - “.12” –identifies the Sedona firmware version number and therefore denotes the compatible controller firmware build (or version) number. In this case the Sedona firmware version number is “12” and therefore is only compatible with firmware build (or Firmware version number) b12 of the FW series controller firmware. -
Page 12: Technical Support
FW Series – firmware upgrade guide v2.0 Technical Support For technical support issues please contact technical support person as below; Worldwide Support : support@easyio.com North America Support : support@easyio.pro Europe Support : support@easyio.eu...
