EasyIO FS32 – User Reference v1.4
EasyIO FS Series User Reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS Series and is the answer not in the manual?

Questions and answers

Related Manuals for EasyIO FS Series

Summary of Contents for EasyIO FS Series

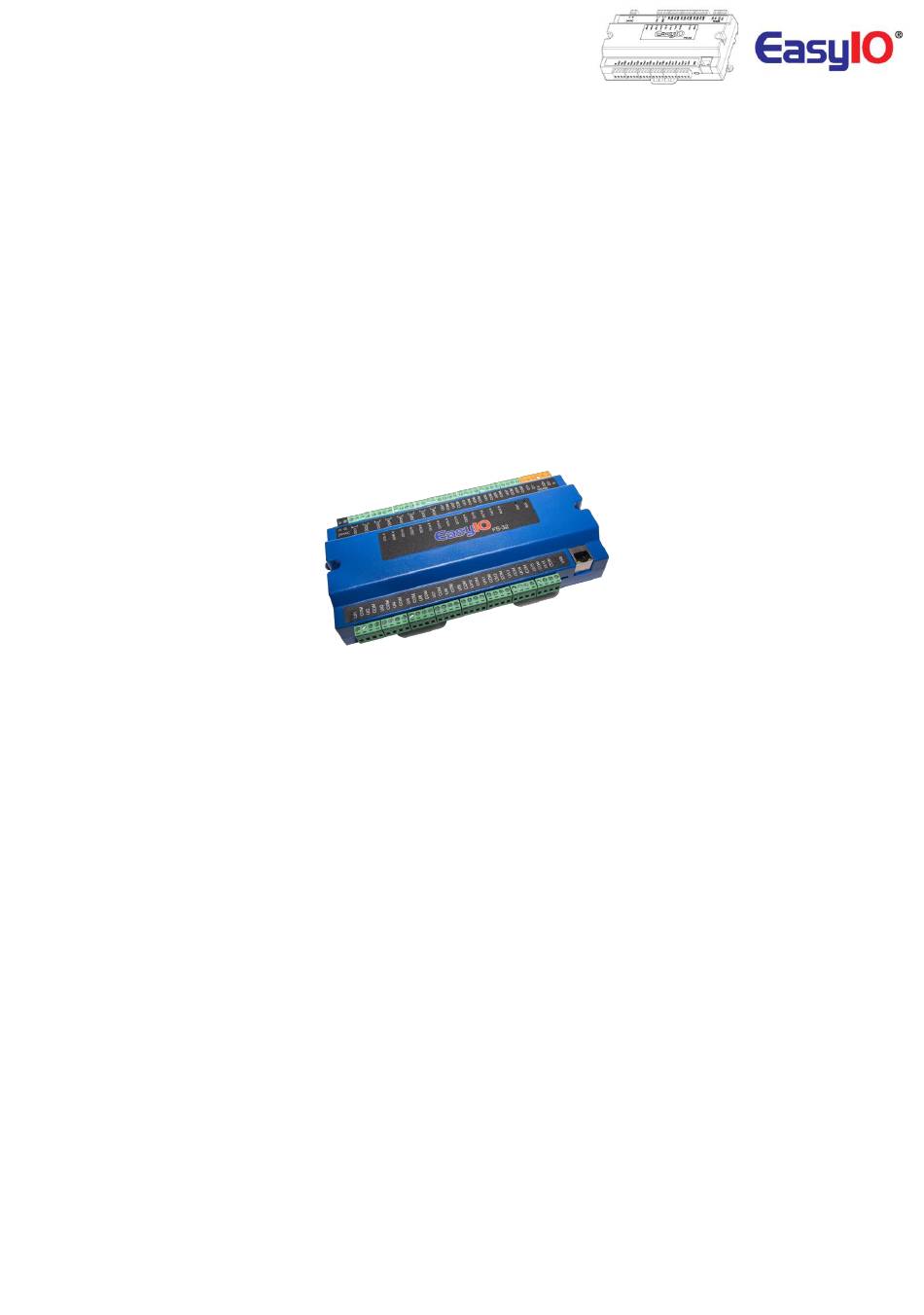

  • Page 1 EasyIO FS32 – User Reference v1.4 EasyIO FS Series User Reference...
  • Page 2 EasyIO FS32 – User Reference v1.4 Document Change Log March 2019 Remove RS485 built-in jumper note. FS Series DO NOT have EOL jumper. December 2019 Added IP changing option.
  • Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.

  • Page 4: Table Of Contents

    EasyIO FS32 – User Reference v1.4 Table of Contents Hardware Specifications ..........................5 Power Supply Specification ........................5 RS485 Specification ............................ 6 Jumpers Setting ............................7 Wiring diagram ............................8 Digital Output Wiring Connection ......................9 Universal Input Connection ........................10 Universal Output Connection ........................

  • Page 5: Hardware Specifications

    Hardware Specifications Power Supply Specification Both AC and DC can be used for EasyIO FS Series controller. Refer to electrical specification for the working range. In order to avoid damage on the controller input/output devices and RS485 connection, use individual power supply for each controller. If a single power supply is used, make sure controller power supplies are connected with the same polarity.

  • Page 6: Rs485 Specification

    RS485 connection must be terminated at both ends with termination resistor, typically 120Ohms. It is recommended to use shielded twisted pair wire (STP) for the wiring. The FS series DOES NOT have any build-in 120 Ohm resistor. A physical 120 Ohm resistor is required and EasyIO do not supply them.

  • Page 7: Jumpers Setting

    EasyIO FS32 – User Reference v1.4 Jumpers Setting Below image shows the jumper setting for Universal Input, Universal Output, Watchdog.

  • Page 8: Wiring Diagram

    EasyIO FS32 – User Reference v1.4 Wiring diagram...

  • Page 9: Digital Output Wiring Connection

    EasyIO FS32 – User Reference v1.4 Digital Output Wiring Connection EasyIO FS Series digital output is for general purpose isolated digital output connections (relay output).  24 VAC , 2.0A   24 VDC , 2.0A  Digital Output 8 Channels (FS-32) , 2 Channels (FS-20)

  • Page 10: Universal Input Connection

    EasyIO FS32 – User Reference v1.4 Universal Input Connection EasyIO FS series has non-isolated universal inputs. Each channel comes with Programmable Gain Amplifiers which improve accuracy at lower range. The universal input supports three mode of analog signal i.e. resistance, voltage and current transmitter...
  • Page 11 EasyIO FS32 – User Reference v1.4 Universal Input as Pulse Input specifications, Max 20Hz...

  • Page 12: Universal Output Connection

    EasyIO FS32 – User Reference v1.4 Universal Output Connection EasyIO FS series has Universal Output connections. Each Universal Output can be configured to drive voltage or current output or digital output via hardware jumper setting and internal register settings. The operating range for voltage mode is 0 – 10V and for current mode either 0 – 20mA or 4 – 20mA.
  • Page 13 EasyIO FS32 – User Reference v1.4 Universal Output Connection as Digital Output Remarks: Universal Output as Digital Output Only DC power source can be use. If AC power source it will damage the controller. Max DC power source is 24VDC.

  • Page 14: Buttons And Indications

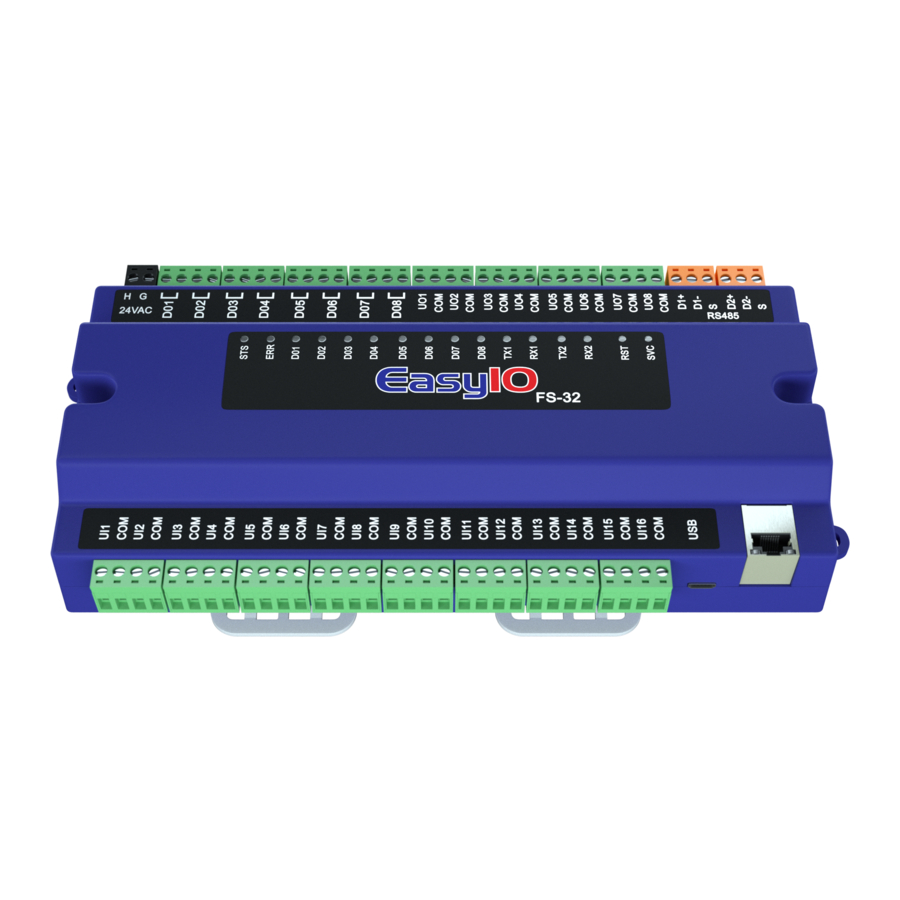

    The Service button is used to activate the built-in boot loader program for software upgrade. Each digital output has a correspondence LED to indicate its current state. Image shows the Reset button, Service button and also TXRX indicators. Image shown is an EasyIO FS-32 unit.

  • Page 15: Login Details

    EasyIO FS32 – User Reference v1.4 Login Details EasyIO FS Series details are as below. Sedona Login Username : admin Password : <no password> FTP client Webuser Login This login allows to perform graphics deployment. Username : webuser Password : 123456...

  • Page 16: Changing Ip Address

    EasyIO FS32 – User Reference v1.4 Changing IP address By default the EasyIO FS Series controller IP address is 192.168.10.12. Changing the IP address can be done through CP T tools and also web browser. CPT tools Step 1 Login to the FS32 via Sedona workbench. Locate the object “IP” under the Service folder.

  • Page 17: Web Browser

    At the network manager page, configure the new IP address and hit SAVE. Controller will reboot and a manual reconnection to the controller with the newly assign IP address is required. The FS Series controller support DHCP IP address as well. To enable DHCP Client mode, select USING DHCP option.

  • Page 18: Restore Factory Settings

    EasyIO FS32 – User Reference v1.4 Restore factory settings This procedure is done with by toggling reset button and hold down the “Service” button while the controller is booting up. A restore to factory settings will perform the following 1. Restore the IP address to the default which is 192.168.10.12 2.
