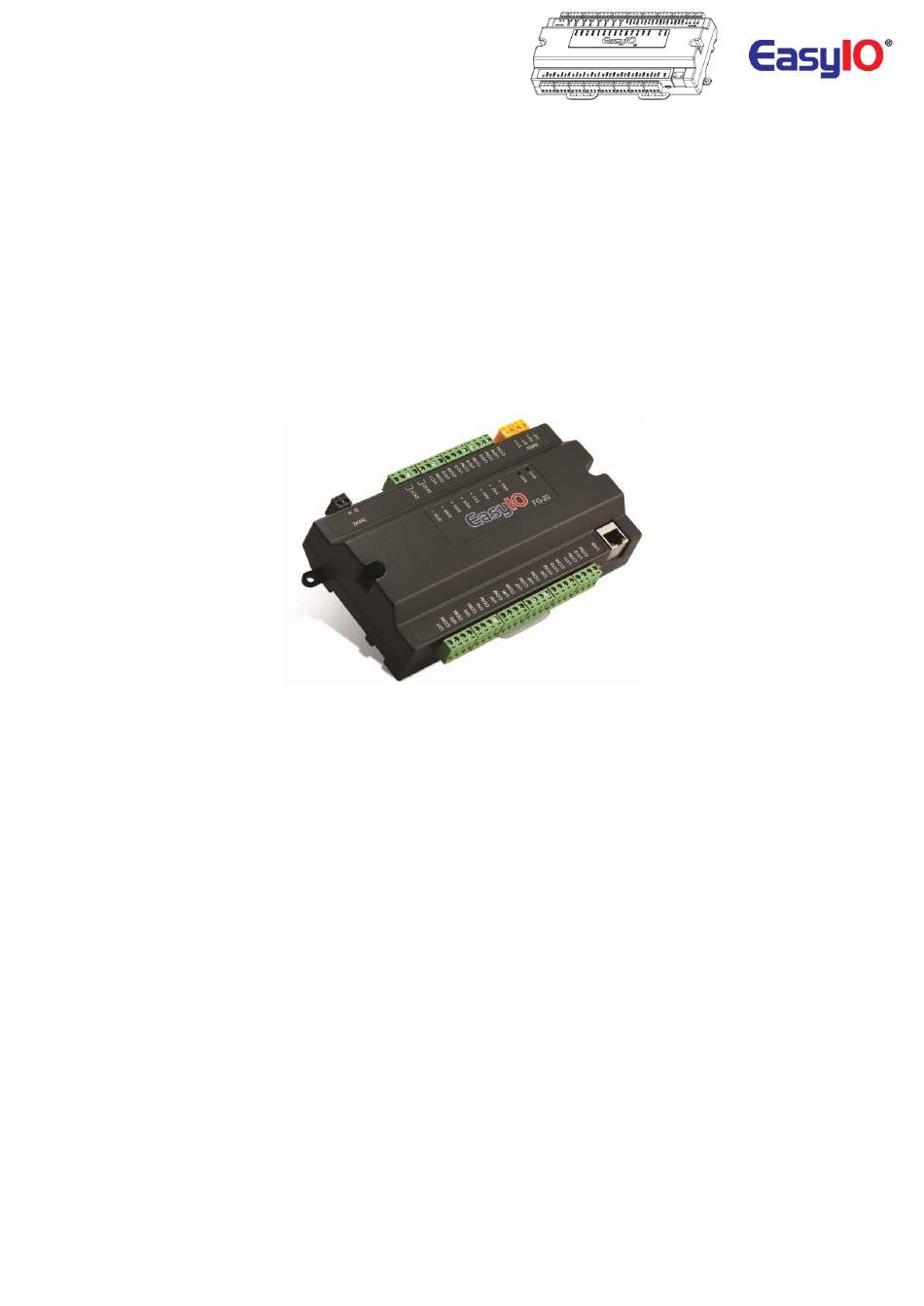

- Page 1 EasyIO FG-20– Installation Guide v1.3 FG-20 Installation Guide...
- Page 2 EasyIO FG-20– Installation Guide v1.3 Document Change Log Feb 2013 Document created. Dec 2013 Micro SD card installation August 2015 Micro SD card installation for EasyIO FG+. Dec 2018 Updated disclaimer and support channel emails addresses...
- Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
- Page 4 EasyIO FG-20– Installation Guide v1.3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Table Of Contents
EasyIO FG-20– Installation Guide v1.3 Table of Contents Introduction ..............................6 Dimension ............................... 6 Physical Installation Instructions ........................8 Opening the Top Cover ..........................11 Micro SD Card Installation ..........................12 EasyIO FG ..............................12 EasyIO FG+ ..............................15 Technical Support ............................17... -
Page 6: Introduction

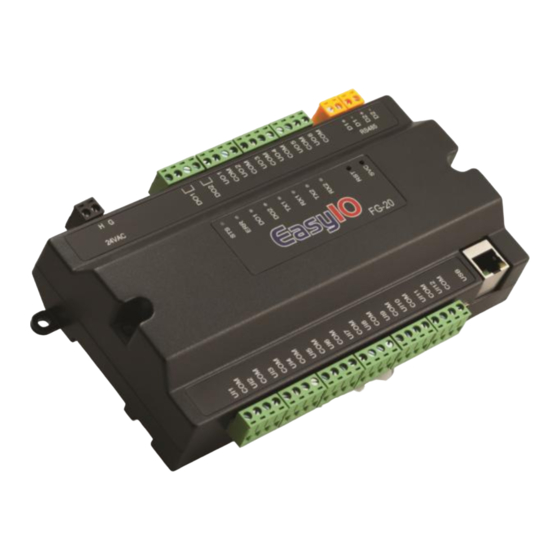

EasyIO FG-20– Installation Guide v1.3 Introduction This document provides the installation guide/mounting guide for the EasyIO FG20 controller. Do not mount the EasyIO FG-20: In an area where excessive moisture, corrosive fumes or explosion vapors are present. Where excessive vibration or shock is likely occur... - Page 7 EasyIO FG-20– Installation Guide v1.3 Side view and back view. Improved DIN rail mounting for easy dismantling. Alternate mounting option dimension...
-
Page 8: Physical Installation Instructions
EasyIO FG32 – Installation Guide Physical Installation Instructions Step 1 Securely fasten the DIN rail to the enclosure base plate. Typical industrial DIN rail, 35mm Step 2 Use a screwdriver to unlock the 2 numbers of locking clips. - Page 9 EasyIO FG32 – Installation Guide Step 3 Position the EasyIO FG20 on the DIN rail mount till it hooks over the top edge of the DIN rail. Push the controller towards the bottom part of the DIN rail Step 4 Press/flatten the EasyIO FG20 to make sure the bottom of the base cover touches the enclosure base plate.
- Page 10 Image shows a typical “DIN rail end clip(end stopper)” The EasyIO FG20 comes with 2 mounting holes as optional mounting. Occasionally if DIN rail mounting is not practical, you can use screws to mount the EasyIO FG20 to an enclosure base plate.
-
Page 11: Opening The Top Cover
EasyIO FG32 – Installation Guide Opening the Top Cover Step 1 Use a Philips screwdriver to unscrew the 2 Philips screw located on top the top cover. Remove the 2 Button HeadPhilips screws Step 2 Hold both end of the top cover to lift up the top cover. Occasionally a small flat head screw driver might come handy in case the top cover stuck to the bottom cover. -
Page 12: Micro Sd Card Installation
EasyIO FG32 – Installation Guide Micro SD Card Installation Each EasyIO FG Series comes with a micro SD memory card slot. SD card is used for CPT graphics, SQL history trending and also backup storage. Specifications Remark Brand tested recommended... - Page 13 EasyIO FG32 – Installation Guide Step 3 Carefully lift the metal cage up approximately 120 towards the left. Step 4 Insert/place the micro SD card. Make sure the micro SD card pins are in contact with the micro SD card slot.
- Page 14 EasyIO FG32 – Installation Guide Step 5 Close the metal cage by tilting it downwards towards the right. Step 6 Press metal cage firmly down and slide it outside of the controller towards the right to secure the micro SD card.
-
Page 15: Easyio Fg
EasyIO FG32 – Installation Guide EasyIO FG+ Step 1 Locate the micro SD card slot at the top right corner. EasyIO FG+ comes with slide-in type of micro SD card holder. Step 2 Slide the micro SD card with contact pins face down. - Page 16 EasyIO FG32 – Installation Guide Step 3 Carefully push the micro SD card in until it is lock. A click sound indicates the micro SD card is locked in position. Step 4 To remove the micro SD card , push the micro SD card in towards the holder until you hear a click sound.
-
Page 17: Technical Support
EasyIO FG32 – Installation Guide Technical Support For technical issue, please contact respective region support channel. Worldwide and Asia Pacific Support support@easyio.com Americas Support support@easyio.pro Europe Support support@easyio.eu...
