EasyIO FG-32 – Installation Guide v1.1
FG-32 Installation Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FG-32 and is the answer not in the manual?

Questions and answers

Summary of Contents for EasyIO FG-32

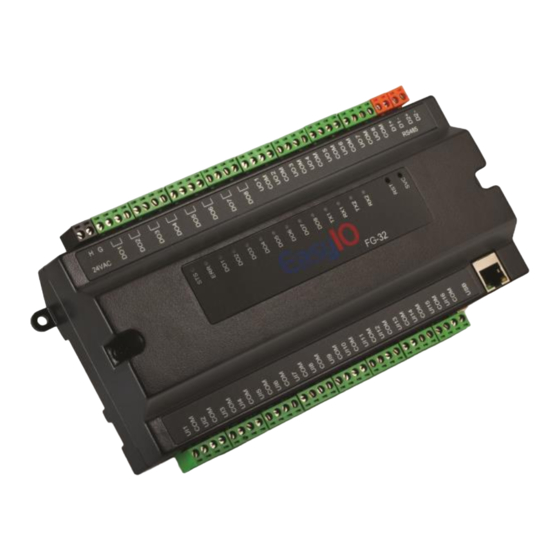

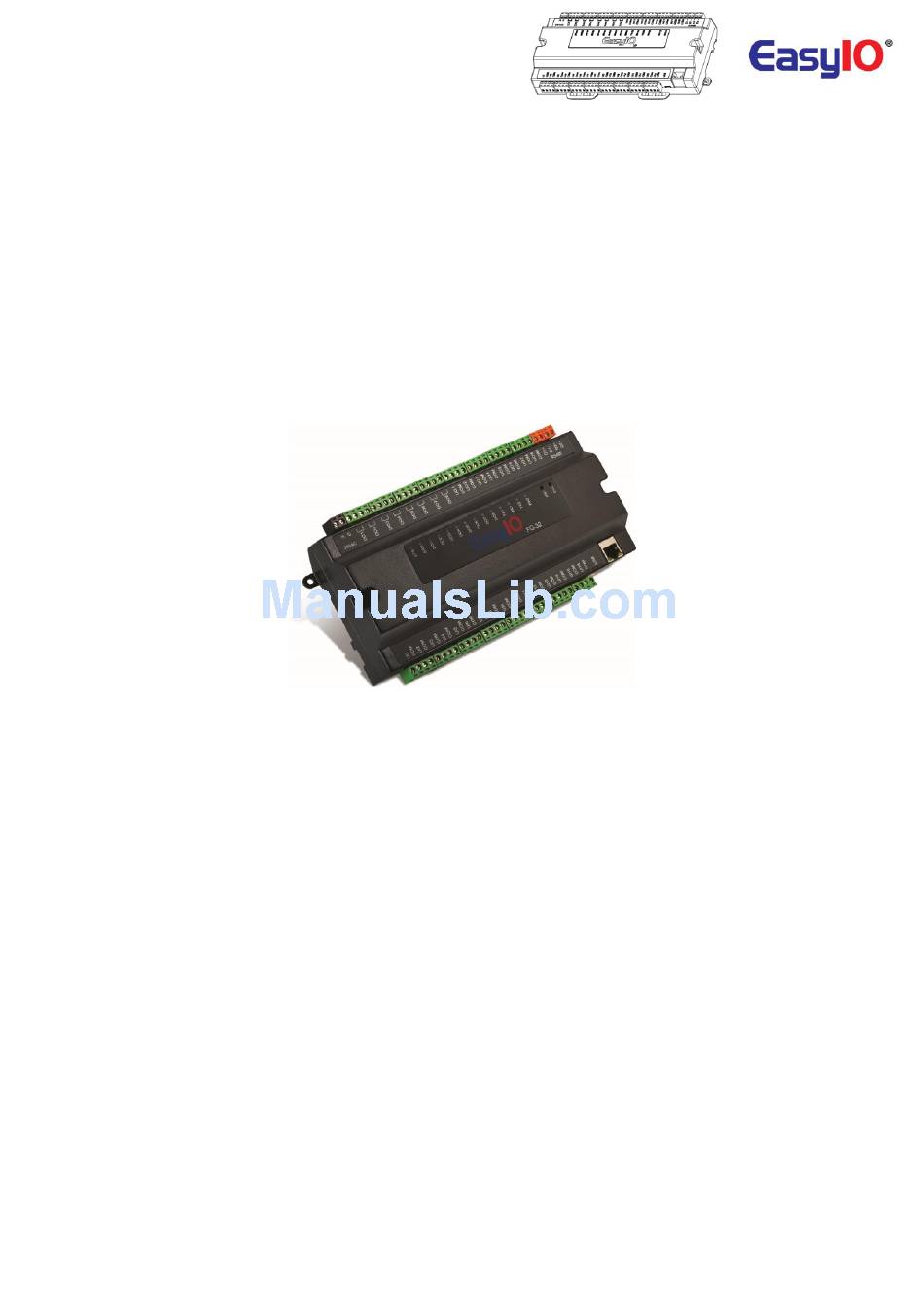

  • Page 1 EasyIO FG-32 – Installation Guide v1.1 FG-32 Installation Guide...
  • Page 2 EasyIO FG-32 – Installation Guide v1.1 Document Change Log March 2013 Document created. Dec 2013 Micro SD card installation...
  • Page 3 EasyIO FG-32 – Installation Guide v1.1 Disclaimer EasyIO FG-32 is a product by EasyIO Holdings Pte Ltd ® The EasyIO FG-32 was built on the Sedona Framework Sedona Framework is a trademark of Tridium, Inc.
  • Page 4: Table Of Contents

    EasyIO FG-32 – Installation Guide v1.1 Table of Contents Introduction ............................5 Dimension ............................... 5 Physical Installation Instructions ......................7 Opening the Top Cover ......................... 10 Micro SD Card Installation ........................11 Technical Support ..........................14...
  • Page 5: Introduction

    EasyIO FG-32 – Installation Guide v1.1 Introduction This document provides the installation guide/mounting guide for the EasyIO FG-32 controller. Do not mount the EasyIO FG-32: In an area where excessive moisture, corrosive fumes or explosion vapors are present. Where excessive vibration or shock is likely occur...
  • Page 6 EasyIO FG-32 – Installation Guide v1.1 Side view and back view. Improved DIN rail mounting for easy dismantling. Alternate mounting option dimension...
  • Page 7: Physical Installation Instructions

    EasyIO FG-32 – Installation Guide v1.1 Physical Installation Instructions Step 1 Securely fasten the DIN rail to the enclosure base plate. A standard DIN rail width 35mm. Typical industrial DIN rail, 35mm Step 2 Use a screwdriver to unlock the 2 numbers of locking clips. Eventually you may use your finger.
  • Page 8 EasyIO FG-32 – Installation Guide v1.1 Step 3 Position the EasyIO FG-32 on the DIN rail mount till it hooks over the top edge of the DIN rail. Push the controller towards the bottom part of the DIN rail Step 4 Press/flatten the EasyIO FG-32 to make sure the bottom of the base cover touches the enclosure base plate.
  • Page 9 Image shows a typical “DIN rail end clip(end stopper)” The EasyIO FG-32 comes with 2 mounting holes as optional mounting. Occasionally if DIN rail mounting is not practical, you can use screws to mount the EasyIO FG-32 to an enclosure base plate.
  • Page 10: Opening The Top Cover

    EasyIO FG-32 – Installation Guide v1.1 Opening the Top Cover Step 1 Use a Philips screwdriver to unscrew the 2 Philips screw located on top the top cover. Remove the 2 Button HeadPhilips screws Step 2 Hold both end of the top cover to lift up the top cover. Occasionally a small flat head screw driver might come handy in case the top cover stuck to the bottom cover.
  • Page 11: Micro Sd Card Installation

    Class 4 Class 10 Please note that the Micro SD card in the EasyIO FG Series is optional and the controller does not complete with the SD Micro Card as standard. The SD Micro card can be purchased separately that have the following specifications.
  • Page 12 EasyIO FG-32 – Installation Guide v1.1 Step 3 Carefully lift the metal cage up approximately 120 towards the left. Step 4 Insert/place the micro SD card. Make sure the micro SD card pins are in contact with the micro SD card slot.
  • Page 13 EasyIO FG-32 – Installation Guide v1.1 Step 5 Close the metal cage by tilting it downwards towards the right. Step 6 Press metal cage firmly down and slide it outside of the controller towards the right to secure the micro SD card.
  • Page 14: Technical Support

    EasyIO FG-32 – Installation Guide v1.1 Technical Support For technical issue, please contact Email :support@easyio.com...
