EasyIO FW Series – User Reference v3.0
EasyIO FW Series
User Reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW Series and is the answer not in the manual?

Questions and answers

Related Manuals for EasyIO FW Series

Summary of Contents for EasyIO FW Series

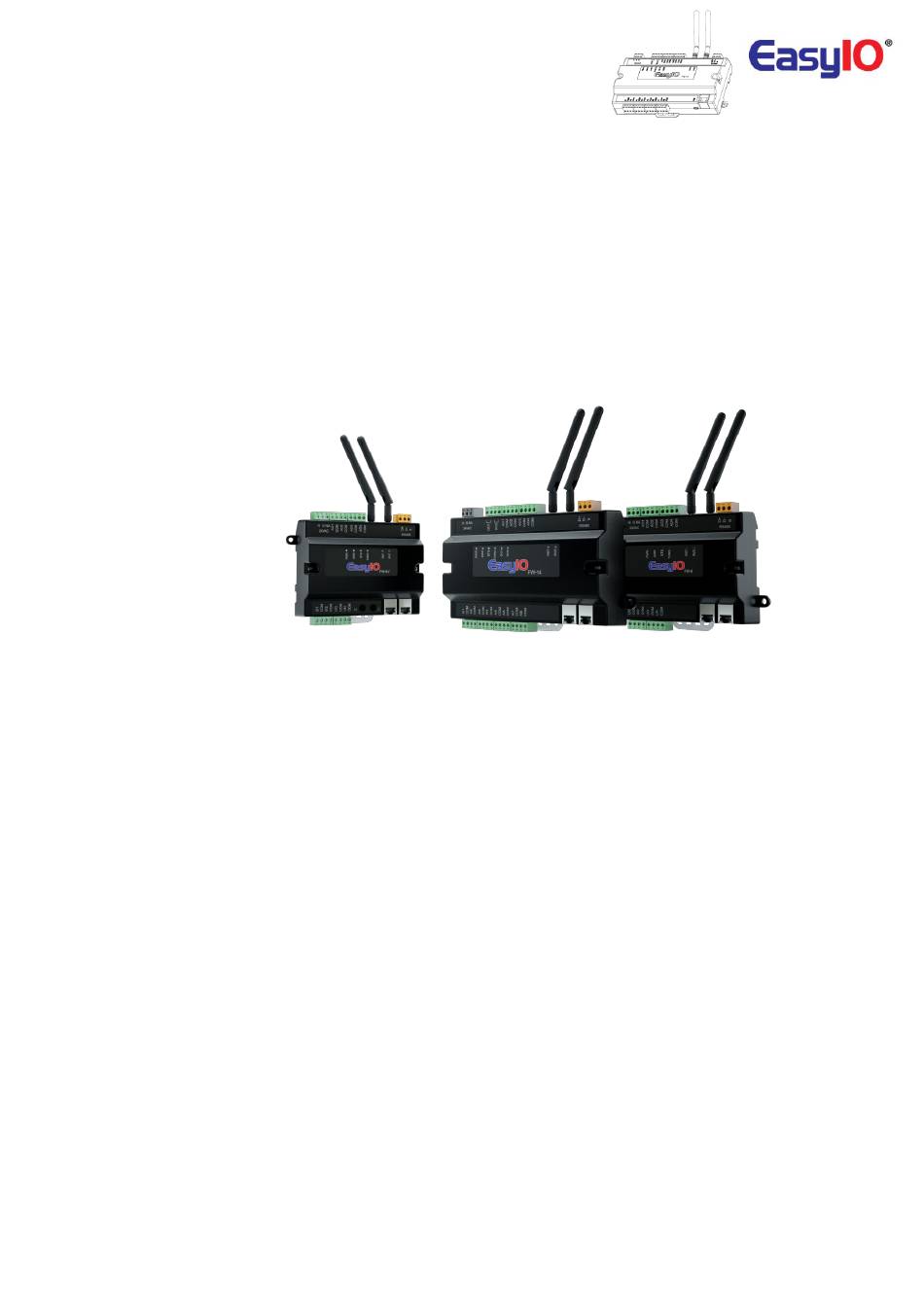

  • Page 1 EasyIO FW Series – User Reference v3.0 EasyIO FW Series User Reference...
  • Page 2 EasyIO FW Series – User Reference v3.0 Document Change Log May 2017 Document created. Oct 2017 Updated AO min load impedance to 10,000 ohms. Jan 2018 Updated Login details IP address. Jan 2018 Updated AO specification and include a warning.
  • Page 3 While every effort has been made to assure the accuracy of this document, EasyIO Holdings Pte Ltd is not responsible for damages of any kind, including without limitation consequential damages, arising from the application of the information contained herein.
  • Page 4 EasyIO FW Series – User Reference v3.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    EasyIO FW Series – User Reference v3.0 Table of Contents Introduction ..............................6 Hardware Configurations ..........................7 Power supply Connection ........................... 7 Input Output configuration ........................8 RS485 Connection ............................8 Jumpers Configurations ..........................9 FW-28 ..............................9 FW-14 ..............................10 FW-08 ..............................

  • Page 6: Introduction

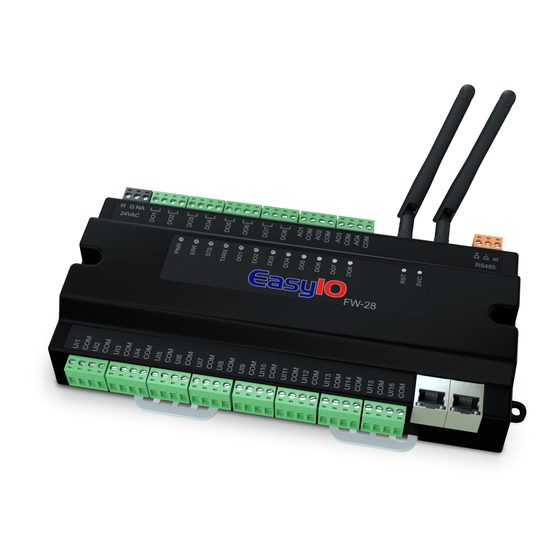

    EasyIO FW Series – User Reference v3.0 Introduction EasyIO FW Series is the most powerful wireless Sedona controller in the market. It is equipped with two 32-bit Processors, the first in the Automation industry, with a 580MHz MTK processor and an ARM M0 Cortex for the I/O management and A-D processing, and also with a Linux 3.18 OS for premium...

  • Page 7: Hardware Configurations

    Hardware Configurations Power supply Connection Both AC and DC can be used for EasyIO FW Series controller. Refer to electrical specification for the working range. In order to avoid damage on the controller input/output devices and RS485 connection, use individual power supply for each controller. If a single power supply is used to power up multiple EasyIO FW series, make sure controller power supplies are connected with the same polarity.

  • Page 8: Input Output Configuration

    EasyIO FW Series – User Reference v3.0 Input Output configuration FW Series range of products comes in few options. Options are referring to IO (Input/Output) configurations. Pressure Ethernet EIA-485 Protocol Supported Model Sensor FW-28 4 (Voltage only) Sedona BACnet IP and MSTP Client...

  • Page 9: Jumpers Configurations

    EasyIO FW Series – User Reference v3.0 Daisy Chain Network Topology Jumpers Configurations FW-28 Below image shows the jumper setting for Universal Input and Watchdog Jumper...
  • Page 10 EasyIO FW Series – User Reference v3.0 FW-14 Below image shows the jumper setting for Universal Input and Watchdog Jumper...
  • Page 11 EasyIO FW Series – User Reference v3.0 FW-08 Below image shows the jumper setting for Universal Input and Watchdog Jumper FW-08V Below image shows the jumper setting for Universal Input and Watchdog Jumper...

  • Page 12: Wiring Diagram

    EasyIO FW Series – User Reference v3.0 Wiring diagram Below diagram shows the general wiring diagram for FW series according to its model. FW-28...
  • Page 13 EasyIO FW Series – User Reference v3.0 FW-14...
  • Page 14 EasyIO FW Series – User Reference v3.0 FW-08...
  • Page 15 EasyIO FW Series – User Reference v3.0 FW-08V...

  • Page 16: Digital Output Wiring Connection

    EasyIO FW Series – User Reference v3.0 Digital Output Wiring Connection EasyIO FW Series digital output is for general purpose isolated digital output connections (relay output). Pilot Duty rating is as below (Pilot Duty);  24 VAC , 2.0A ...

  • Page 17: Analog Output Connection

    EasyIO FW Series – User Reference v3.0 Analog Output Connection EasyIO FW series has Analog Output connections. Each Analog Output can only drive voltage. The operating range for voltage mode is 0 – 10V. **We DO NOT recommend you to drive a relay directly from UO 0-10V mode as it is not design for it and will damaged the UO.

  • Page 18: Universal Input Connection

    EasyIO FW Series – User Reference v3.0 Universal Input Connection EasyIO FW series has non-isolated universal inputs. The universal input supports three type of analog signal i.e. resistance and voltage via hardware jumper and internal register settings: Universal Input 8 Channels Voltage 0 - 10V DC (+/-0.05V)

  • Page 19: Differential Pressure Sensor (Fw-08V)

    Differential Pressure Sensor (FW-08V) **Applicable to FW-08V only** EasyIO FW-8V has an on board differential pressure sensor or some called it Air Flow sensor. The sensor is pre-calibrated by manufacturer and it gives digital signal instead of analog signal. The sensor calibration is calibrated with temperature compensation which gives excellent accuracy.

  • Page 20: Network And Wireless

    EasyIO FW Series – User Reference v3.0 Network and Wireless EasyIO FW series comes with on board wireless connection and 2 ethernet ports. The wireless network comply to IEEE 802.11 standards. It supports IEEE 802.11 B/G/N standard. Each unit is supplied with two (2) 2dBi RP-SMA female jack antenna.
  • Page 21 SSID 2 : Conf-xxxx , where xxx is the last 4 digit of the MAC address 01 (Hidden by default) Mac Address label located at the bottom casing top right hand corner of each FW series controller. The MAC address label is available on the circuit board as well , above the ethernet ports.
  • Page 22 Both SSID (SSID 1 and SSID 2) and ethernet ports has a DHCP server built in. If you are connected to the FW series controller via Wi-Fi or Ethernet you will obtain an IP address assign by the DHCP server.

  • Page 23: Login Details

    : hellocpt Utility Menu To access the FW Series Utility menu, connect to the FW series controller using any web browser. Step 1 In the web browser address bar type in the FW series controller IP address (default is 192.168.10.30).
  • Page 24 At the dashboard screen, click expand icon, at the bottom left to view the sidebar. Then select Utility menu, Utility menu consist of several configuration for the FW series controller. The menu are as below. 1. Network Configuration 2. Date Time Configuration 3.

  • Page 25: Date Time Configuration

    Date Time Configuration This menu is used to perform date and time configuration for the FW controller. The FW Series controller supports Network Time Protocol (NTP) synchronization. To change the Date and Time of the controller, go to the DateTime tab.

  • Page 26: Logo Config

    200kb and NO larger than 641px * 315px. Format supported are *.jpeg, *.png and *.gif as well. Service Config This menu is used to create a auth_key to be used with built in FW Series Data exporter. Refer to FW Series SQL User guide for further details.

  • Page 27: Buttons And Indications

    EasyIO FW Series – User Reference v3.0 Buttons and Indications The controller will do a hardware reset when the Reset Button is pressed whenever manual restart is required. The Service button is used to activate the built-in boot loader program for software upgrade.
  • Page 28 EasyIO FW Series – User Reference v3.0 Button and LED indications. Image shown is an EasyIO FW-14. LED Conditions Description Pattern: continuously blinking. ERR is to indicate whenever there is Communication errors between FM-02 module and base board. Pattern: constantly light up.

  • Page 29: Restore Factory Settings

    4. Dashboard files Follow the steps below to restore to factory settings. Step 1 Make sure you backup the Sedona apps if you have connection to the EasyIO FW-14. Step 2 Power down the controller then power up Within 5 seconds HOLD down the service button (right button) until the Error LED starts to flash fast.

  • Page 30: Technical Support

    EasyIO FW Series – User Reference v3.0 Technical Support For technical issue, please contact respective region support channel. Worldwide and Asia Pacific Support support@easyio.com Americas Support support@easyio.pro Europe Support support@easyio.eu...
