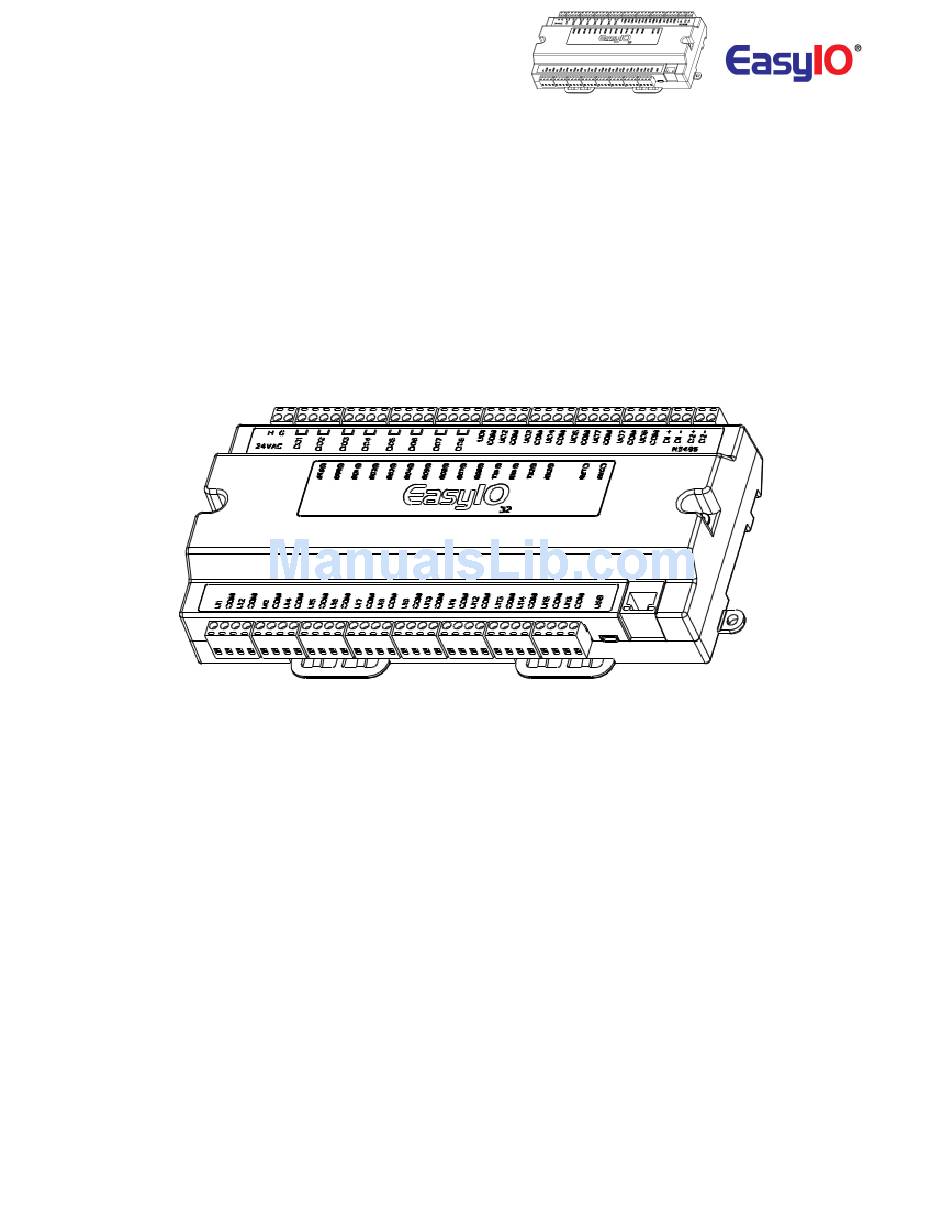

  • Page 1 FG 32 DDC – pre release user guide – V1.4 FG32 pre-release user guide...
  • Page 2 FG 32 DDC – pre release user guide – V1.4 Document Change Log Nov 2012 Document created. Nov 2012 Added new chapter for restoring FG32 back to default apps. Added in new chapter for Changing IP address Jumpers setting diagram updated on page 8. Watchdog jumpers settings added.

  • Page 3: Table Of Contents

    Device Specifications ..........................5 Device Dimension ........................... 6 Input / Output Configurations ........................ 7 Jumper Configurations ..........................8 Connecting to FG32 Sedona DDC via Sedona workbench ..............9 Install platform files and kits files ....................... 9 Login Details ............................12 Troubleshoot ............................13 Checklist point 1.

  • Page 4: Introduction

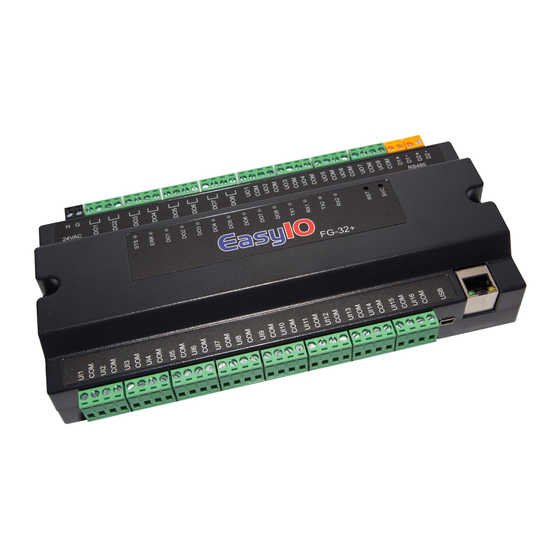

    Introduction We are getting ready to release our new FG series of Controllers, starting with the EasyIOFG32 DDC controller, product reference: EasyIO-FG-GC-32. It is equipped with two 32-bit Processors, the first in the Automation industry, with an ARM9 200 MHz Samsung processor, an ARM M3 Cortex for the I/O management and A-D processing, and also with a Linux 2.6 OS for premium performance.

  • Page 5: Device Info

    FG 32 DDC – pre release user guide – V1.4 Device Info Device Info Model EasyIO-FG-32 Description EasyIO-FG32 Sedona series: 32 I/O Controller Name FG32 DDC Device Specifications Mechanical Dimensions 233mm x 124mm x 44mm (approx) Material UL Approved Plastic...

  • Page 6: Device Dimension

    FG 32 DDC – pre release user guide – V1.4 Device Dimension Below are the dimensions for the EasyIO FG32. Top View. Width including connectors are approx 124mm Side view and back view. Improve DIN rail mounting for easy dismantling.

  • Page 7: Input / Output Configurations

    FG 32 DDC – pre release user guide – V1.4 Input / Output Configurations Input/Output Configuration 1 - Universal Input 16 Channels Voltage 0 - 10V DC (+/-0.005V) Current 0-20mA DC Resistance 0 - 30K (+/-10 Ohm), 0 - 10K (+/-5 Ohm), 0 - 1.5K (+/-1 Ohm) Thermistor 10K, 10K Shunt, 1K Balco, 1K Platinum : All (+/-0.01 Deg-C) UI as Digital Input...

  • Page 8: Jumper Configurations

    FG 32 DDC – pre release user guide – V1.4 Jumper Configurations : Current : On , EOL terminated EIA 485 Jumper Universal : Voltage Settings Output Jumper : Off , EOL Not terminated : Open Collector Watchdog Universal Input Jumpers Settings Jumper Settings = Resistance...

  • Page 9: Connecting To Fg32 Sedona Ddc Via Sedona Workbench

    FG 32 DDC – pre release user guide – V1.4 Connecting to FG32 Sedona DDC via Sedona workbench In order to connect to the new EasyIO FG32 DDC, some files are needed. EasyIO FG32 has a different sedona platform, files and kits. These kits are hardware dependent.
  • Page 10 FG 32 DDC – pre release user guide – V1.4 Step 4 For Niagara Ax 3.5.xx user. Drag and drop it in to the sedona root folder. Hit “Yes” on the pop up to merge the files. Step 5 For Niagara Ax 3.6.xx user. Drag and drop it in to the sedona root folder. Hit “Yes” on the pop up to merge the files.
  • Page 11 FG 32 DDC – pre release user guide – V1.4 Step 6 For Niagara Ax 3.7.xx user. Drag and drop it in to the sedona root folder. Hit “Yes” on the pop up to merge the files. Step 7 Re-open workbench and connect to EasyIO FG32 controller.

  • Page 12: Login Details

    FG 32 DDC – pre release user guide – V1.4 Login Details EasyIO FG32 details are as below. Sedona Login Username : admin Password : <no password> Default IP address : 192.168.10.11 Default Subnet : 255.255.255.0 Default Gateway : 0.0.0.0 Note : In order to login, the host PC (laptop) has to be in the same subnet.

  • Page 13: Troubleshoot

    FG 32 DDC – pre release user guide – V1.4 Troubleshoot In order to make sure all the files are copied correctly into the directory, follow below checklist to verify all the files are in place. Checklist point 1. Platform file is in the platform folder. Checklist point 2.

  • Page 14: Changing Ip Address

    Changing the IP address can only be done via sedona workbench at the moment. Step 1 Login to the FG32 via sedona workbench. Locate the object “IP” under the sedona service folder. Step 2 Go into the property sheet of the “IP” object.

  • Page 15: Restoring Fg32 Back To Default Apps

    Then a reboot or restart of the VM will erase all the objects in the sedona apps. The second way of restoring the FG32 back to default apps is via ftp client software. This way can be use as well if the FG32 sedona VM is not connectable and the controller keep rebooting due to some incompatible sedona apps loaded.
  • Page 16 Unzipped the backup file email by easyIO tech support. Step 5 Transfer the app.sab and kit.scode in to the FG32 “mnt ” folder. MNT folder is at the root of the FG32 directory. Overwrite the existing files in the FG32.
  • Page 17 FG 32 DDC – pre release user guide – V1.4 Step 6 After transfer is successful, cycle power of the controller and re-enable the watchdog jumpers(refer page 8). Step 7 Connect to the FG32 via sedona workbench. If above steps done correctly, sedona workbench connection will be good.

  • Page 18: Technical Support

    FG 32 DDC – pre release user guide – V1.4 Technical Support For technical support issues please contact technical support person as below ; Email :support@easyio.com...
