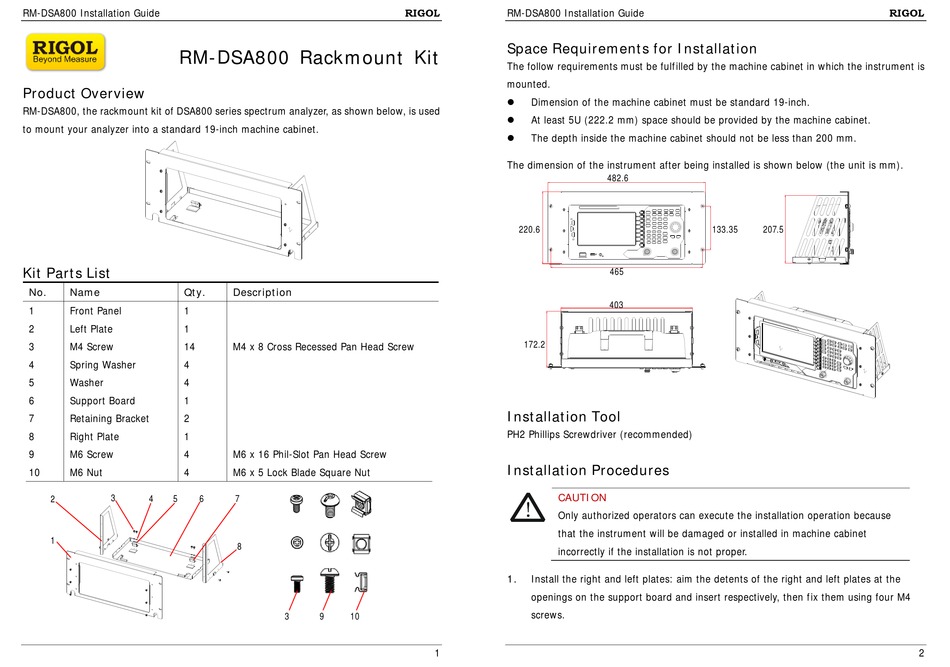

Rigol RM-DSA800 Installation Manual

RM-DSA800 Installation Guide
RM-DSA800 Rackmount Kit

Product Overview

RM-DSA800, the rackmount kit of DSA800 series spectrum analyzer, as shown below, is used
to mount your analyzer into a standard 19-inch machine cabinet.

Kit Parts List

No. Name Qty.
1 Front Panel 1
2 Left Plate 1
3 M4 Screw 14
4 Spring Washer 4
5 Washer 4
6 Support Board 1
7 Retaining Bracket 2
8 Right Plate 1
9 M6 Screw 4
10 M6 Nut 4
3
4 5 6
2
1
RIGOL
Description
M4 x 8 Cross Recessed Pan Head Screw
M6 x 16 Phil-Slot Pan Head Screw
M6 x 5 Lock Blade Square Nut
7
8
3 9 10
RM-DSA800 Installation Guide

Space Requirements for Installation

The follow requirements must be fulfilled by the machine cabinet in which the instrument is
mounted.
Dimension of the machine cabinet must be standard 19-inch.

At least 5U (222.2 mm) space should be provided by the machine cabinet.

The depth inside the machine cabinet should not be less than 200 mm.

The dimension of the instrument after being installed is shown below (the unit is mm).
482.6
220.6
465
403
172.2

Installation Tool

PH2 Phillips Screwdriver (recommended)

Installation Procedures

CAUTION
Only authorized operators can execute the installation operation because
that the instrument will be damaged or installed in machine cabinet
incorrectly if the installation is not proper.
1. Install the right and left plates: aim the detents of the right and left plates at the
openings on the support board and insert respectively, then fix them using four M4
screws.
1
RIGOL
133.35 207.5
2
