Installation Guide
RIGOL
This rack mount kit is designed to mount RIGOL DS1000B series digital oscilloscope into a
19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.

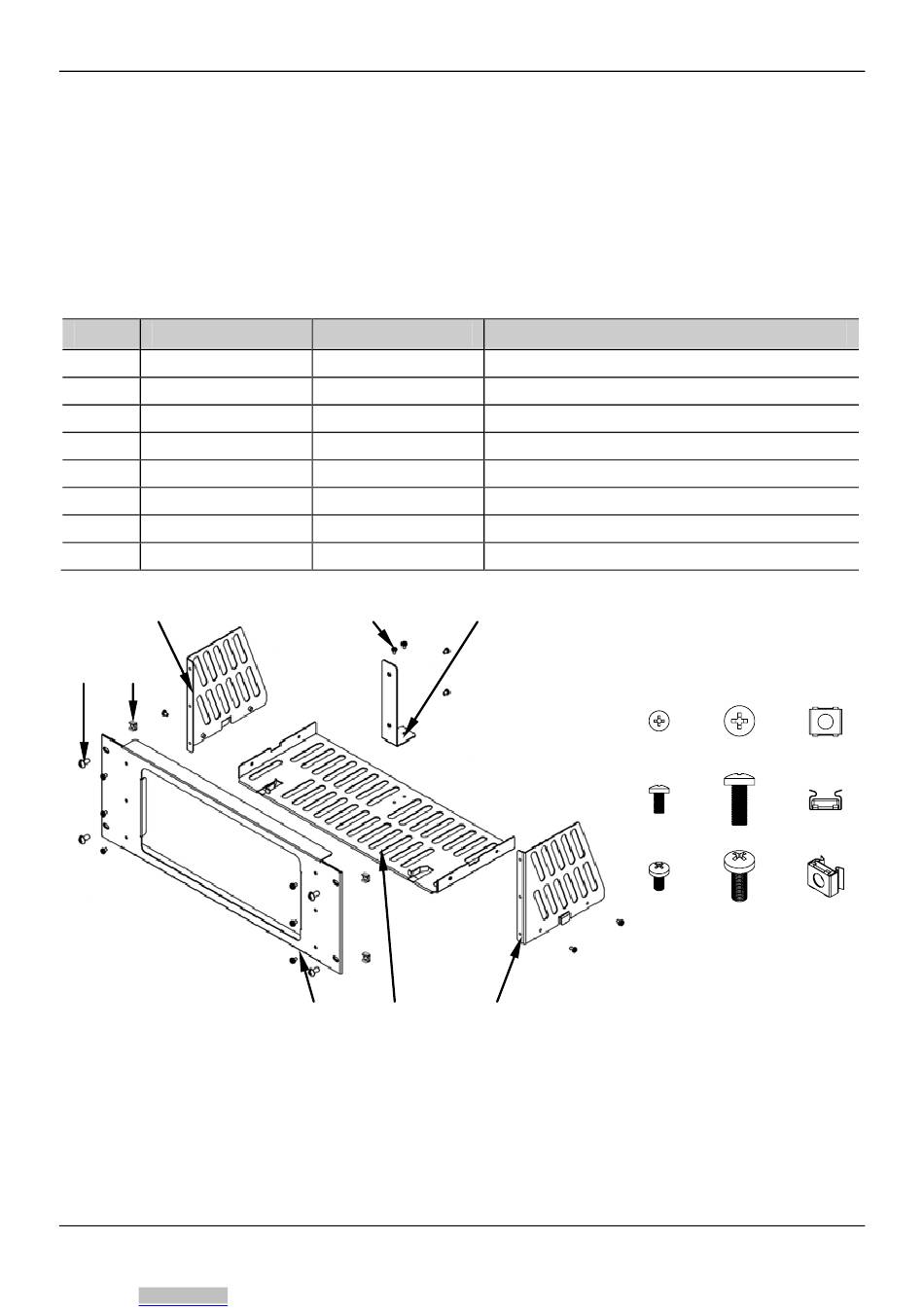

Kit Part Checklist

No.
Name
1
Front Plate
2
Bottom Plate
3
Left Plate
4
Right Plate
5
Rear Bracket
6
M4 Screw
7
M6 Screw
8
M6 Nut
3
7
8
Installation Tool
The PH2 Philips screwdriver is recommended.
Arrow.com.
Downloaded from
RM-DS-1B Rack Mount Kit
Qty.
1
1
1
1
1
14
4
4
6
5
1
2
Description
--
--
--
--
--
M4x8 Phillips Pan Head Screw
M6x16 Phillips Pan Head Screw
M6 Square Lock Cage Nut
6
4
RIGOL
7
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-DS-1B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rigol RM-DS-1B

Summary of Contents for Rigol RM-DS-1B

  • Page 1 Installation Guide RIGOL RIGOL RM-DS-1B Rack Mount Kit This rack mount kit is designed to mount RIGOL DS1000B series digital oscilloscope into a 19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard. Kit Part Checklist Name Qty. Description...
  • Page 2 Installation Guide RIGOL Space Requirements To mount the instrument into the cabinet correctly, please ensure that the following requirements are met. The cabinet must be a standard 19-inch one.  The available height of the cabinet should be at least 4U (177.8mm).
  • Page 3 Installation Guide RIGOL Mount the front plate Attach the front plate to the assembled rack, and fasten the front plate with six M4 screws. Place the instrument Place the instrument onto the bottom plate and ensure that the tabs on the bottom plate engage the front rubber pads of the instrument.
  • Page 4 Installation Guide RIGOL Fasten the instrument Push the rear bracket fully forward until it stops against the rear panel of the instrument, then fasten the rear bracket to the instrument and the bottom plate with four M4 screws. Get encased in the cabinet Mount the assembled instrument and rack into a standard 19-inch cabinet using four M6 screws and four M6 square nuts.
