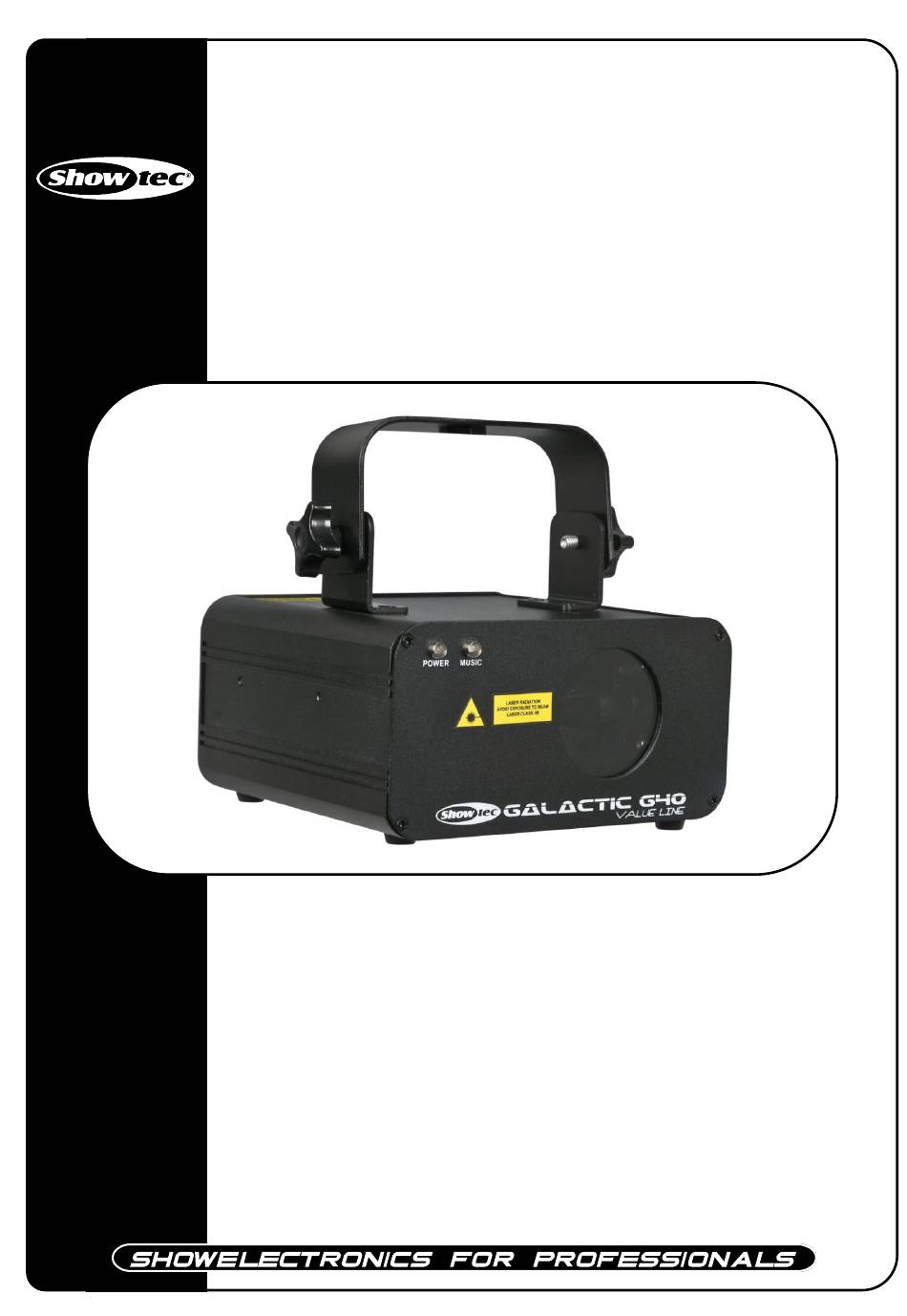

- Page 1 Galactic G40 ORDERCODE 51321 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
- Page 3 Showtec Showtec Galactic G40 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................5 Rigging .................................... 5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Backside ..................................7 Installation ...................................
- Page 4 Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
- Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
- Page 6 CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser radiation. Compliance Statement Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification. The Galactic is a Class IIIB laser product.
- Page 7 Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. •...
- Page 8 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
- Page 9 Description of the device Features The Showtec Galactic is a light effect with high output and great effects. • Peak Power 60 Watt; Continuous Power 30 Watt • Beam Diameter <5mm at aperture • Pulse Data All pulses < 4Hz (>0.25sec) •...
- Page 10 Installation Remove all packing materials from the Galactic. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage.
- Page 11 Control Modes There are 4 modes: • Auto run (visual effects) • Sound-controlled • Master/Slave • DMX512 One Galactic (Auto run visual effects) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2.
- Page 12 Multiple Galactic (DMX Control) Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Galactic lasers. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out"...
- Page 13 Control Panel Fig. 5 A. LED Display D. Down Button B. Func Button E. Enter Button C. Up Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Galactic will respond to the controller.
- Page 14 Menu Overview Main Menu Options 1. DMX address 2. Master/Slave 3. Test 4. Automatic 5. Sensitivity You can only change a certain setting when the display is blinking. If you can’t change a certain value, please press the Function-button once and then change the value. 1.
- Page 15 5. Sensitivity Mode With this menu you can set the Audio Sensitivity. 1) Press the FUNC button, until the display shows 2) You can choose 10 different Audio Sensitivity levels. Use the Up / Down buttons to select the required address from is no audio activation.
- Page 16 Patterns 000-007 064-071 128-135 192-199 008-015 072-079 136-143 200-207 016-023 080-087 144-151 208-215 024-031 088-095 152-159 216-223 032-039 096-103 160-167 224-231 040-047 104-111 168-175 232-239 048-055 112-119 176-183 240-247 056-063 120-127 184-191 248-255...
- Page 17 Maintenance The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth.
- Page 18 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
- Page 19 Product Specification Model: Showtec Galactic Power: 240V-50Hz (CE) Peak Power 60 Watt; Continuous Power 30 Watt Beam Diameter <5mm at aperture Pulse Data All pulses < 4Hz (>0.25sec) Divergence (each beam) <2 mrad; Divergence (total light) <160 degrees Laser Power Green>40mW, DPSS Nd:YVO4, wavelength 532 nm...
