Through the use of the XIB interface board you can connect an additional loop detector (center or
shadow) to the E024U board to keep the gate open if vehicles are obstructing the closing path.
OP
J1
Depending on the board revision you might need
to upgrade the software on the E024U before you
can use the shadow loop kit. The software can
be downloaded from the faacusa.com website or
requested from Technical Support.
To do the upgrade:
1. Download software to a flash drive
2. Disconnect batteries if present
3. Turn AC power off and insert the Flash Drive
into the USB connector on the board
4. Turn AC power back on. The USB2 LED will
flash to confirm beginning of software update.
(Warning: Do not turn the power off or remove
the flash drive until the USB2 LED turns off.)
5. Wait until the USB2 LED turns off
6. Remove the USB flash drive
OFF
DL1 "XIB" board
malfunction
or no power
DL2 "XIB" board
malfunction
or no power
Sh a d ow L o o p K i t f o r E 024U
CL
J3
J2
DL1
DL2

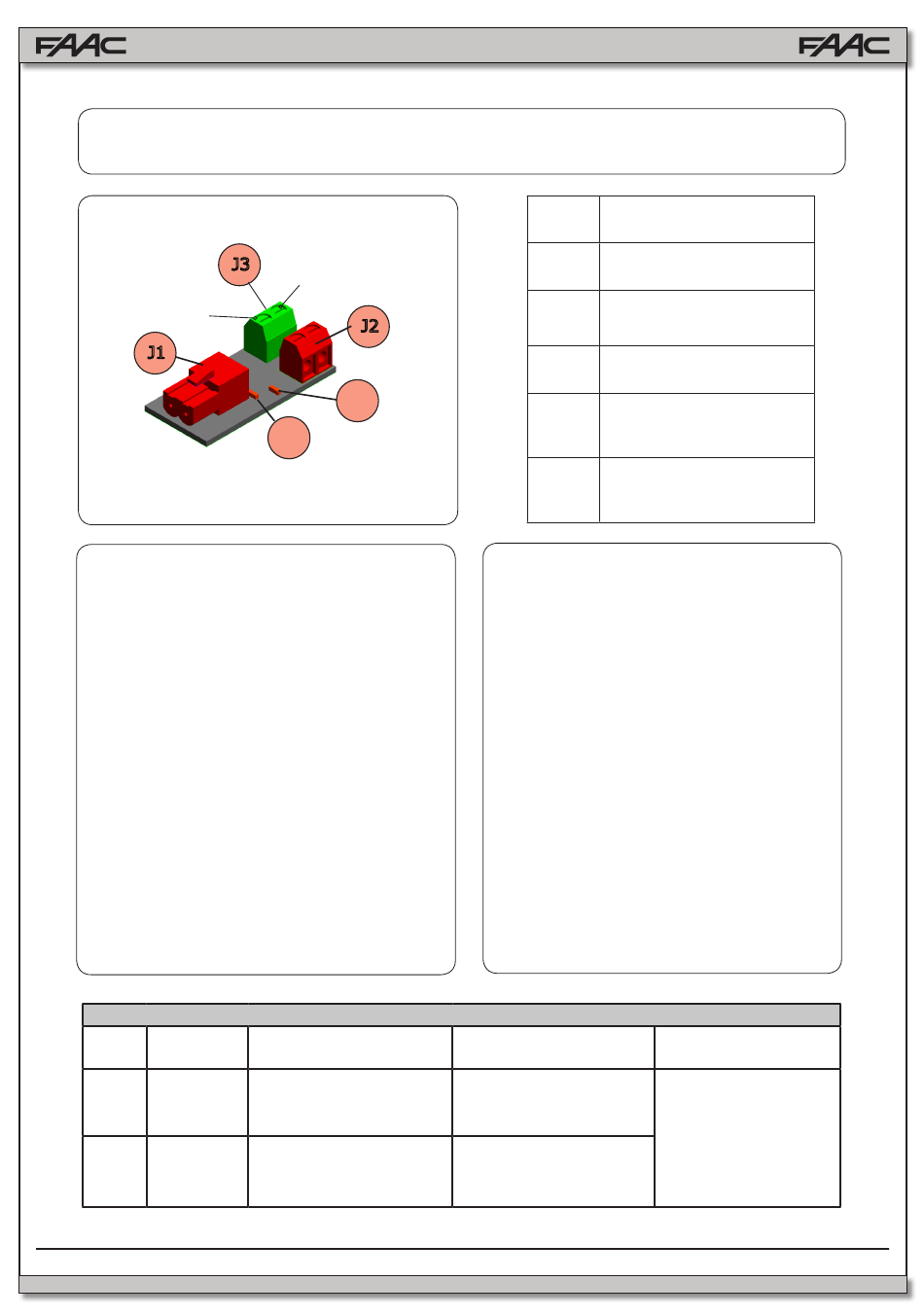

Fig 1: XIB board description

DIAGNOSTIC TABLE

SLOW FLASHING
(FLASH EVERY 5 secs.)
J3 OP terminal open
(missing jumper on the OP
input)
J3 CL terminal open
(loop detector active or not
connected)
J1 Connects to "2easy" BUS input
( RED ) on the E024U control board
J2 Terminal block for the connection of
( RED )
J3 CL Terminal for the NC connection of the
( GREEN )
J3 OP
( GREEN )
DL1 LED for diagnostics of devices
connected to the J3 OP terminal
DL2 LED for diagnostics of devices
connected to the J3 CL terminal

INSTALLING THE INTERFACE

1. Turn power OFF
2. Plug in the XIB interface to the 2EASY con-
nector on the E024U board
3. Wire the shadow loop detector NC output
to the CL input on the XIB board. See Fig.
2.
4. Connect Common from loop detector to
Common (terminal 6) on E024U
5. Also jump out the OP input on XIB board to
Common (terminal 6) on E024U
6. Turn power back ON
7. Go through setup/learn mode on the
E024U board
ON STEADY
J3 OP terminal closed
(normal condition)
J3 CL terminal closed
(loop detector in idle condi-
tion)
the encoder
shadow loop detector
Not Used
(not used)
(see diagnostic table)
FAST FLASHING
(FLASH EVERY 0.5 secs)
Error condition on the
BUS
