Summary of Contents for Siko AP20S

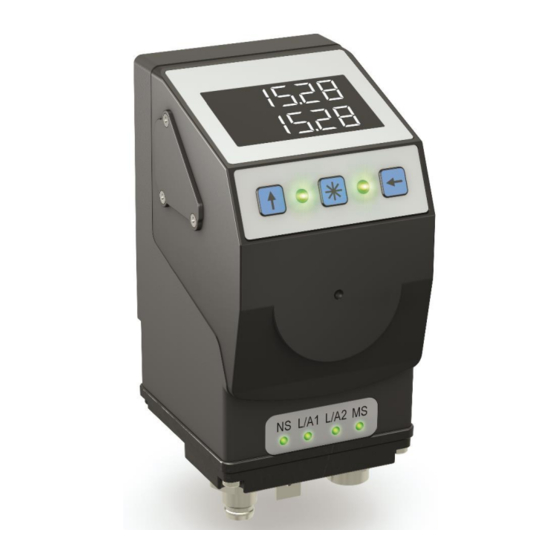

- Page 1 AP20S Absolute / Electronic Position Indicator with plug connector for magnetic sensor and interface User manual 133/20...
-
Page 2: Table Of Contents
Overview of the operating menu ................ 19 3.3.1.5 "Changeable parameters" menu ................. 20 3.3.1.6 Quick Setup ....................20 3.3.1.7 PROFINET ....................... 21 3.3.1.8 Positioning ..................... 21 3.3.1.9 Visualization ....................22 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 2 of 79... - Page 3 Active LCD Backlight Red ..................42 4.3.7 Active LCD Backlight Flashing ................42 LEDs ........................43 4.4.1 LED1 Green Mode ....................43 4.4.2 LED1 Red Mode ....................43 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 3 of 79...
- Page 4 Error Count ......................66 4.7.2 Error Number 1 ....................66 4.7.3 Error Number 2 ....................67 4.7.4 Error Number 3 ....................67 4.7.5 Error Number 4 ....................68 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 4 of 79...
- Page 5 Commissioning aids ....................76 Ethernet Functions ....................76 Web server ......................76 FTP-Server ......................77 Secure Host IP Configuration Protocol (Secure HICP) ........... 78 Block diagram ......................78 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 5 of 79...
-
Page 6: General Information
Since both linear magnet sensors and rotary encoders are used with the AP20S, a clockwise direction of rotation must be equated with a positive travel path. The buttons can be used to select various functions and to adapt the device parameters stored in a non-volatile memory to the application. -
Page 7: Switching On The Operating Voltage
Display and control keys Switching on the operating voltage The AP20S will be initialized after switching on the supply voltage. A system and display test is executed during initialization, the LEDs are lighted consecutively and the parameters are loaded from the non-volatile memory into the RAM of the controller. -
Page 8: Extended Display Range
In order for LED1 or LED2 to be controlled via the control word, this function of the LEDs must be activated by means of parameters. 2.3.2 Ethernet module status A test sequence is executed on these LEDs during initialization. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 8 of 79... -
Page 9: Network Status Led3
In the "Alphanumeric display" operating mode, the receipt of a set point is acknowledged by this action. Pressing the Configuration button starts the parameterization. See also Fig. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 9 of 79... -
Page 10: Functional Description
Using the parameter Decimal Places (see chapter 4.2.2) the resolution and the modulo point of the displayed values are set. Decimal places Display resolution Value range 1° 0°…360° 1/10° 0.0°…360.0° 1/100° 0.00°…360.00° 1/1000° 0.000°…360.000° 1/10000° 0.0000°…360.0000° Table 1: Modulo display AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 10 of 79... -
Page 11: Target Window
To assist in positioning, direction arrows are displayed in the display as long as the current actual value is outside the valid target window. The arrow direction indicates in which direction the sensor position must be changed to reach the target window. AP20S Date: 24.08.2020 Art. No. 89992 Mod. -
Page 12: Led Display
Case 2 the new position is smaller than actual value: The directional arrows of the position indicator indicate that the loop length is to be moved counterclockwise (CCW) beyond the target position. Them the target value is approached clockwise. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20... -
Page 13: Control Word: Position-Dependent Operating Modes
LED2 green Deactivate LED Activate LED LED2 red Deactivate LED Activate LED LED blinking Deactivate LED Activate LED Table 3: Control word operating mode Abs, Diff, Modulo AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 13 of 79... -
Page 14: Status Word: Position-Dependent Operating Modes
Status word: Position-dependent operating modes The response to a target write command contains a status word that has not yet been updated. The Status Word shows the current status of the AP20S. It is composed of eight bits. Status word High Byte... -
Page 15: Control Word: Alpha-Numeric Display Operating Mode
Low Byte The designation of the individual bits of the control word as well as their meaning: Meaning Value = 0 Value = 1 reserved ever 0 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 15 of 79... -
Page 16: Status Word: Alpha-Numeric Display Operating Mode
Display data activation Display data deactivated Activate display data (display line 1) Target value Target value not Target value acknowledged acknowledged (display acknowledged line 2) reserved ever 0 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 16 of 79... -
Page 17: Battery Buffering
For battery replacement it is mandatory to follow the instructions of the installation instructions. Replacement can also take place at the SIKO distribution partners or in the SIKO main plant. Behavior of the status word The charge status of the battery is signified in the status word. -
Page 18: Manual Parameterization
For some parameters you can select values from a list. Direct value input is not possible there. Pressing the key, the value can be selected from the list. By pressing the key, the selection is confirmed. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 18 of 79... -
Page 19: Overview Of The Operating Menu
All fixed device data are displayed in the "Readable parameters" (Read Only = "RdOnLY") submenu (see chapter 3.7.1). The "Diagnosis" ("DIAGN") submenu provides various diagnostic options (see chapter 3.7.2). AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 19 of 79... -
Page 20: Changeable Parameters" Menu
GATW12 Gateway 1, 2 Byte GATW34 Gateway 3, 4 Byte RESOL Resolution 4.2.1 DEC PL Decimal places 4.2.2 CntDIR Counting direction 4.2.3 Target window 4.2.6 RESET Restart AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 20 of 79... -
Page 21: Profinet
Enter calibration value 4.2.4 CALVAL Calibrate selection OFFSET Application Offset 4.2.5 Target window 4.2.6 Extended target window 4.2.7 LOOP Loop positioning 4.2.8 LOOP L Loop length 4.2.9 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 21 of 79... -
Page 22: Visualization
The following parameters can be set in the "Additional device options" menu: Description Display Chapter RESET Restart Selection K TIME Key enable time / parameterization delay 4.5.12 SENSOR Sensor type 4.5.2 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 22 of 79... -
Page 23: Parameterization Via Interface
3.6). Alignment travel The AP20S is fully functional as delivered. To adjust the display to the connected sensor and to achieve optimum measuring accuracy, alignment travel must be carried out whenever a new/different sensor is connected to the AP20S. For calibration, the sensor must have been mounted correctly (see documentation MS500H or GS04). -
Page 24: Calibration
Functional Description 1. By entering CODE 000100, AP20S is set to the alignment mode (see chapter 3.3.1). Display: 1st line "ADJUST" 2nd line "100" this value may vary by ±1. 2. When connecting sensor MS500H, it must be moved by a few millimeters in the direction of the cable outlet (speed <1 cm/s). -
Page 25: Diagnosis
"noErr" appears if no errors have been detected so far. The error memory of the AP20S can be deleted via the interface with "System command" with data content 8 (see chapter 4.5.22). -
Page 26: Restore Factory Settings
If calibration is required, this is indicated in the display as "CALIB REQUEST". Independent of acknowledgment of the error status. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20... - Page 27 Internal error "Exception" state The behavior of the position display when this fault occurs can be determined with this parameter System Configuration, bit 6 (see chapter 4.5.20). AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 27 of 79...
-
Page 28: Parameters
0007h: Generic Mapping Channel Selectable data channel 0008h: Error Status Error status 000Ah: Module Parameters Internal parameter of the network module 000Ch: Generic Mapping Parameter Data channel selection parameter AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 28 of 79... - Page 29 0045h: LED1 Green Mode LED1 green mode 0046h: LED1 Red Mode LED1 red mode 0047h: LED2 Green Mode LED2 green mode 0048h: LED2 Red Mode LED2 red mode AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 29 of 79...
-
Page 30: Positioning
(display/revolution = APU). When the MS500H magnetic sensor is used, the resolution is in unit nm (nanometer). For example, the setting 10000 at MS500H corresponds to a resolution of 1/100 mm (1 measuring step = 10 µm or 10000 nm). AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20... -
Page 31: Decimal Places
Display DEC PL (chPARA \ POSI \ DEC PL) Menu Data type Unsigned8 Value range 0 … 4 Default 0 (default) Parameter selection Value Display Description 0.02 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 31 of 79... -
Page 32: Counting Direction
NEG counting direction: descending position values with a corresponding change in the sensor position in the positive direction. The positive sensor orientation depends on the mounting type of the sensor. Observe the corresponding installation instructions of the sensor in this regard. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20... -
Page 33: Calibration Value
= measurement value + calibration value. General characteristics EEPROM Class Unit PROFINET Data type Integer16 Access Get/Set Instance 0045d / 2Dh Web server Display OFFSET (chPARA \ POSI \ OFFSET) Menu AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 33 of 79... -
Page 34: Target Window
General characteristics EEPROM Class Unit User units PROFINET Data type Unsigned16 Access Get/Set Instance 0051d / 33h Web server Display TWX (chPARA \ POSI \ TWX) Menu AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 34 of 79... -
Page 35: Loop Type
Positive travel loop Negative travel loop The positive sensor orientation depends on the mounting type of the sensor. Observe the corresponding installation instructions of the sensor in this regard. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 35 of 79... -
Page 36: Loop Length
General characteristics EEPROM Class Unit PROFINET Data type Unsigned16 Access Get/Set Instance 0001d / 01h Web server Display Menu Data type Unsigned16 Value range Default no default AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 36 of 79... -
Page 37: Status Word
Class Unit PROFINET Data type Integer32 Access Get/Set Instance 0003d / 03h Web server Display Menu Data type Integer32 Value range -2147483648 … 2147483647 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 37 of 79... -
Page 38: Actual Value
U/Min or Resolution/Min. PROFINET Data type Integer32 Access Instance 0193d / C1h Web server Display Menu Data type Integer32 Value range -503316 … 503316 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 38 of 79... -
Page 39: Visualization
Display of the direction indicators (CW, CCW). General characteristics EEPROM Class Unit PROFINET Data type Unsigned8 Access Get/Set Instance 0027d / 1Bh Web server Display INDICA (chPARA \ VISUAL \ INDICA) Menu AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 39 of 79... -
Page 40: Displayed Value 2Nd Line
0 … 1 Default 0 (default) Parameter selection Value Display Description POSVAL Target value or difference value deactivated 4.3.4 Target Window Extended Visualization General characteristics EEPROM Class Unit AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 40 of 79... -
Page 41: Active Lcd Backlight White
Web server Display BL WT (chPARA \ VISUAL \ BL WT) Menu Data type Unsigned8 Value range 0 … 1 Default 1 (default) Parameter selection Value Display Description AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 41 of 79... -
Page 42: Active Lcd Backlight Red
Instance 0073d / 49h Web server Display BL FL (chPARA \ VISUAL \ BL FL) Menu Data type Unsigned8 Value range 0 … 1 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 42 of 79... -
Page 43: Leds
Data type Unsigned8 Value range 0 … 1 Default 1 (default) Parameter selection Value Display Description CRWORD Control word Position 4.4.2 LED1 Red Mode General characteristics EEPROM Class Unit AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 43 of 79... -
Page 44: Led2 Green Mode
LED2GN (chPARA \ LEDS \ LED2GN) Menu Data type Unsigned8 Value range 0 … 1 Default 1 (default) Parameter selection Value Display Description CRWORD Control word Position AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 44 of 79... -
Page 45: Led2 Red Mode
Instance 0073d / 44h Web server Display LED FL (chPARA \ LEDS \ LED FL) Menu Data type Unsigned8 Value range 0 … 1 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 45 of 79... -
Page 46: Options
0 (default) Parameter selection Value Display Description ABSPOS Absolute position DIFF Difference value MODULO Modulo (360°angle display) DISPL Alpha-numeric display 4.5.2 Sensor Type General characteristics EEPROM Class Unit AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 46 of 79... -
Page 47: Display Data
EEPROM Class Unit PROFINET Data type Integer32 Access Get/Set Instance 0002d / 02h Web server Display Menu Data type Integer32 Value range … 2 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 47 of 79... -
Page 48: Display String Mode
Display String1 Data contents Line 1 with active display string mode. General characteristics EEPROM Class Unit PROFINET Data type Unsigned32 Access Get/Set Instance 0058d / 3Ah Web server AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 48 of 79... -
Page 49: Display String2
The difference value can be read with this parameter. The formation of the difference value is set with the Difference Value Mode parameter. General characteristics EEPROM Class Unit PROFINET Data type Integer32 Access Instance 0195d / C3h Web server AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 49 of 79... -
Page 50: Difference Value Mode
The values for position, target value and the differential value if applicable are calculated by means of the following formula (for position value): Display value position value x calculation factor 4-Display factor Calculation factor x 10 0.254 AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 50 of 79... - Page 51 Instance 0056d / 38h Web server Display D FACT (chPARA \ OPTION \ D FACT) Menu Data type Unsigned8 Value range 0 … 8 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 51 of 79...
-
Page 52: Display Divisor
This parameter can be used to set the application of the display divisor for the determined position values (absolute position value, frozen position value) as well as the received target value (display divisor and examples see chapter 4.5.10). AP20S Date: 24.08.2020 Art. No. 89992 Mod. -
Page 53: Key Enable Time
General characteristics EEPROM Class Unit PROFINET Data type Unsigned8 Access Get/Set Instance 0019d / 13h Web server Display K TIME (chPARA \ OPTION \ K TIME) Menu AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 53 of 79... -
Page 54: Key Configuration
This parameter specifies whether the calibration of the position value is enabled by pressing a key. General characteristics EEPROM Class Unit PROFINET Data type Unsigned8 Access Get/Set Instance 0020d / 14h Web server AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 54 of 79... -
Page 55: Key Incremental
This parameter can be used to specify which key is to be used as an acknowledgment key. The setting is only relevant in the alphanumeric display mode. In this case, a received target value is displayed flashing until its reception is acknowledged by the pressing of a button. AP20S Date: 24.08.2020 Art. No. 89992 Mod. -
Page 56: Pin Change
Access Get/Set Instance 0018d / 12h Web server Display PIN (chPARA \ OPTION \ PIN) Menu Data type Integer32 Value range 0 … 99999 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 56 of 79... -
Page 57: Code Input
This parameter defines the content of the generic mapping channel, which is part of the process data. General characteristics EEPROM Class Unit PROFINET Data type Unsigned8 Access Get/Set Instance 0012d / 0Ch Web server AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 57 of 79... -
Page 58: System Configuration
Default 15 (default) Parameter selection Description SHICP (Secure Host IP Configuration Protocol) 0 = switched off 1 = switched on (default) Changes are only adopted after reset. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 58 of 79... -
Page 59: Module Parameters
This parameter module parameters is for internal purposes only, and may not be described. General characteristics EEPROM 4.5.22 System Command General characteristics EEPROM Class Unit PROFINET Data type Unsigned8 Access Instance 0255d / FFh Web server Display Menu AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 59 of 79... -
Page 60: Device Information
Unsigned16 Access Instance 0196d / C4h Web server Display B VOLT (RdOnLY \ B VOLT) Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 60 of 79... -
Page 61: Operation Voltage
Unit °C PROFINET Data type Unsigned16 Access Instance Web server Display TEMP (RdOnLY \ TEMP) Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 61 of 79... -
Page 62: Actual Calibration Value
Unsigned16 Access Instance 0098d / 62h Web server Display SW APP (RdOnLY \ SW APP) Menu Data type Unsigned16 Value range 1 … 999 Default 1 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 62 of 79... -
Page 63: Software Version Ethernet Module
Unsigned32 Access Instance 0099d / 63h Web server Display SN DEV (RdOnLY \ SN DEV) Menu Data type Unsigned32 Value range 0 … 4294967295 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 63 of 79... -
Page 64: Production Date
Data type Unsigned32 Access Instance Web server Display MAC LO(HI) (RdOnLY \ MAC LO, MAC HI) Menu Data type Unsigned32 Value range 0 … 4294967295 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 64 of 79... -
Page 65: Device Identification
Web server Display Menu Data type Unsigned32 Value range 1 … 8 Default 5 (default) = AP20S 4.6.11 Generic Mapping Channel In the general data channel, device information can be transmitted as part of the process data. General characteristics EEPROM... -
Page 66: Error Memory
Unsigned16 Access Instance 0129d / 81h Web server Display Er1/"n" (DIAGN \ Error \ Er1/"n") Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 66 of 79... -
Page 67: Error Number 2
Unsigned16 Access Instance 0131d / 83h Web server Display Er3/"n" (DIAGN \ Error \ Er3/"n") Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 67 of 79... -
Page 68: Error Number 4
Unsigned16 Access Instance 0133d / 85h Web server Display Er5/"n" (DIAGN \ Error \ Er5/"n") Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 68 of 79... -
Page 69: Error Number 6
Unsigned16 Access Instance 0135d / 87h Web server Display Er7/"n" (DIAGN \ Error \ Er7/"n") Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 69 of 79... -
Page 70: Error Number 8
Unsigned16 Access Instance 0137d / 89h Web server Display Er9/"n" (DIAGN \ Error \ Er9/"n") Menu Data type Unsigned16 Value range 0 … 65535 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 70 of 79... -
Page 71: Error Number 10
EEPROM Class Unit PROFINET Data type Integer16 Access Instance 0008d / 08h Web server Display Menu Data type Integer16 Value range -32768 … 32767 Default 0 (default) AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 71 of 79... -
Page 72: Profinet
"siko-ap20s-yyy" yyy = set value of ID in decimal notation In the basic setting, the value of ID=124. This results in the station name "siko-ap20s-124". The setting of ID=8 results in the station name "siko-ap20s-008". - Page 73 The active IP configuration can be indicated via the display. CONFIG \ RdONLY \ IP IP address CONFIG \ RdONLY \ SNM Subnet mask CONFIG \ RdONLY \ GATW Gateway AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 73 of 79...
- Page 74 IP 1. 2 IP 3. 4 SNM 1. 2 SNM 3. 4 GW 1. 2 GW 3. 4 RESET RESET Fig. 7: Setting of the IP address AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 74 of 79...
-
Page 75: Cyclic Data Exchange (Io Data Cr)
The error codes are converted into the ChannelErrorType according to the following table. Error code ChannelErrorType Description 0106h Battery voltage too low 0113h EEPROM plausibility 0114h Ethernet module watchdog 0115h Ethernet modules in the ERROR state AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 75 of 79... -
Page 76: Behavior Of The Outputs
The inbuilt web server enables configuration and parameterization without network master via the Ethernet interface. The web server can be accessed via the set IP address. Settings for IP and Ethernet can be made via the chPARA \ SETEPN menu. AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20... -
Page 77: Ftp-Server
TCP, Port 20 (FTP data transmission) TCP, Port 21 (FTP control) The FTP server can be activated ore deactivated via the System Configuration parameter (see chapter 4.5.20). AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 77 of 79... -
Page 78: Secure Host Ip Configuration Protocol (Secure Hicp)
The protocol is activated in the factory settings. Block diagram Ethernet module Ethernet reverse Power polarity Position indicator pack Control protection Axis Encoder Battery Fig. 10: Block diagram AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 78 of 79... - Page 79 SIKO GmbH Weihermattenweg 2 79256 Buchenbach Phone + 49 7661 394-0 + 49 7661 394-388 E-Mail info@siko-global.com Internet www.siko-global.com Service support@siko-global.com AP20S Date: 24.08.2020 Art. No. 89992 Mod. status 133/20 Page 79 of 79...
