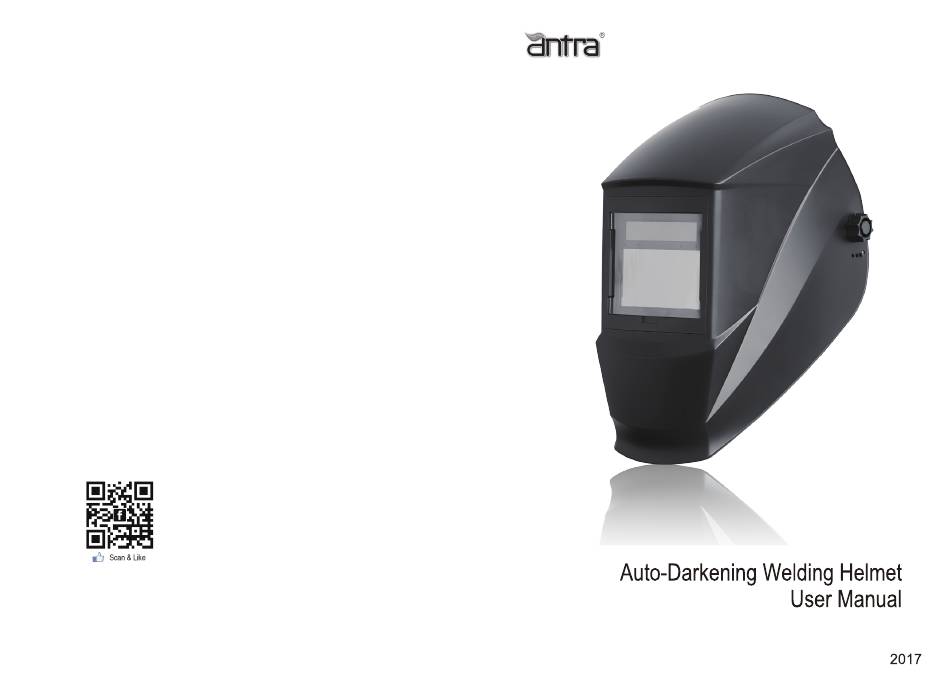

- Page 1 RF16XXXX Customer Sevice Technical Info. Parts & Accessories Promotions All-Rounder Series www.facebook.com /AntraHelmets Made in china...
-
Page 2: Important Safety Instructions
ARC RAYS can burn eyes ! Antra RF16XXXX Never look at arc welding without proper eye protection. Arc rays from the Auto-Darkening Welding Helmet welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Model RF16XXXX FLYING METAL can injure eyes ! ADF Model AntFi360i • Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds Viewing Area 98 x 53 mm /3.86" x 2.09" cool, they can throw off slag. •... -
Page 4: Operation
1.OPERATION When stored in extremely cold temperature, the helmet should be warmed up to • ADJUST THE WELDING HELMET ACCORDING ambient temperature before welding. TO YOUR INDIVIDUAL REQUIREMENTS. Inspect all parts for signs of wear or damage. Any scratched or cracked parts should be •... -
Page 5: Delay Time
ON/OFF 3. DELAY TIME The solar unit automatically switches ON when exposed to light. This welding helmet is featured with continuously adjustable delay time control. The 2. SELECT THE SHADE NUMBER lens will lighten in 0.1 to 1.0 seconds upon ambient temperature and shade setting.By turning the DELAY knob (Fig.6) clockwise, the delay time will increase from 0.1... -
Page 6: Maintenance
5. PRE-WELDING CHECK & BATTERY TESTING REPLACEMENT OF FRONT COVER LENS The following procedures should be followed to Take out the old cover lens (Fig.10). perform this testing: 1) Make sure there is enough ambient light to Make sure that the protective film is removed from trigger the auto darkening lens on. -
Page 7: Troubleshooting
5. Front cover installation Position the lens retainer correctly, push and lock the lens retainer in the shield properly. 7.INSPECTION 1. Carefully inspect your Auto-Darkening Welding Filter regularly. (Fig.14). (Fig.15). 2. Cracked, pitted or scratched filter glass or cover lenses reduced vision will seriously impair protection. -
Page 8: Warranty
POOR VISION - The cover lens and the filter cartridge is dirty or damaged, clean the dirty components and replace the damaged ones. - Ensure ambient light is not too low. - Ensure the shade number is correct and adjust accordingly. IRREGULAR DARKENING - Headband has been set unevenly so the distance between the eyes and the lens is different from the left to the right side.
