Summary of Contents for Antra Digital Diamond Series

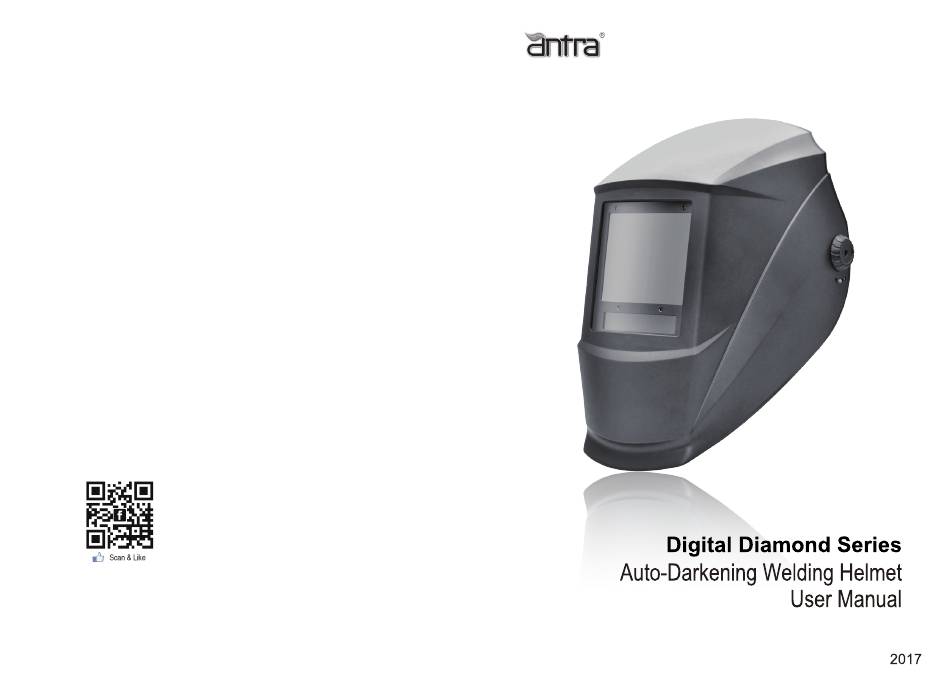

- Page 1 DF16XXXX Customer Sevice Technical Info. Parts & Accessories Promotions www.facebook.com /AntraHelmets Made in china...
- Page 2 Antra DF16XXXX Auto-Darkening Welding Helmet ARC RAYS can burn eyes ! 2017 Never look at arc welding without proper eye protection. Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and Skin, Hot sparks fly off from the weld and can burn eyes and skin.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS FLYING METAL can injure eyes ! Model DF16XXXX • Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds ADF Model AF780 cool, they can throw off slag. Viewing Area 98mm x 82mm/3.86" x 3.23" •... -
Page 4: Operation
1.OPERATION ADJUST THE WELDING HELMET ACCORDING When stored in extremely cold temperature, the helmet should be warmed up to • TO YOUR INDIVIDUAL REQUIREMENTS. ambient temperature before welding. The headband should be adjusted both in Inspect all parts for signs of wear or damage. Any scratched or cracked parts should be •... -
Page 5: Recommended Settings
Weld 2.SELECT THE SHADE NUMBER 3.SELECT DELAY TIME The delay mode adjusts how quickly the filter Weld Grind goes from dark back to light state. To change the delay setting, press the "Delay +" and the "Delay -" button, delay can be adjusted from 1 (0.1 seconds) up to 9 (0.9 Delay 1-9 seconds) (Fig.5). -
Page 6: Battery Display
5.BATTERY DISPLAY Batt If the ambient light is very low, or the solar cells REPLACEMENT OF EXTERIOR COVER are blocked, a battery icon may show up in the middle of the screen. This will not affecting the LENS functioning of the helmet if the icon is solid black (Fig.9) (Fig.7a) . -
Page 7: Troubleshooting
REPLACEMENT OF INNER COVER LENS Detach the auto darkening filter from the helmet shield (Refer to REPLACEMENT OF WELDING FILTER). (Fig.17) (Fig.18) (Fig.13) Lift up one edge of the inner cover lens and pull the cover lens away from the filter(Fig.13). Remove protective film on the new inner lens Feed the top edge of the cartridge back to the helmet shield (Fig17). -
Page 8: Warranty
Distributed by THE LENS STAYS DARK AFTER THE WELD ARC IS EXTINGUISHED, OR THE AntecTrade & IT Consulting Inc. AUTO-LENS STAYS DARK WHEN NO ARC IS PRESENT. 106 Ferrier St. - Fine-tune the sensitivity setting in small increments. In extreme light conditions, it may be Markham,ON L3R 2Z5 necessary to reduce the surrounding light levels.
