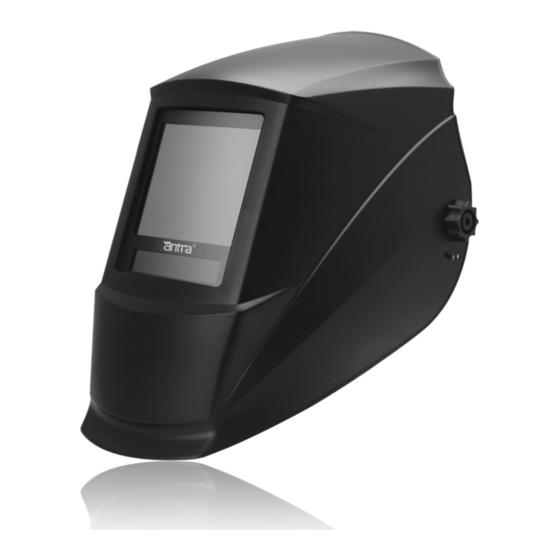

- Page 1 Customer Service Technical Info. Parts & Accessories Promotions Digital-Pro SERIES WWW.facebook.com/AntraHelmets TollFree:1-888-450-6788 North America DP-9 Outside of USA & Canada: +1-905-415-3487 E-mail:info@antectrade.com Auto-Darkening Welding Helmet User Manual Made in china 2022...
-
Page 2: Important Safety Instructions
Digital-Pro SERIES ARC RAYS can burn eyes ! DP-9 Never look at arc welding without proper eye protection. Arc rays from the Auto-Darkening Welding Helmet 2022 welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and Skin, Hot sparks fly off from the weld and can burn eyes and skin. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS FLYING METAL can injure eyes ! Model DP-9 • Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds ADF Model cool, they can throw off slag. Viewing Area 98mm x 82mm/3.86" x 3.23" • Wear ANSI approved safety glasses with side shields under your welding helmet. Cartridge Size 133mm x 114mm x 9mm/5.24"... -
Page 4: Operation
1.OPERATION ADJUST THE WELDING HELMET ACCORDING TO YOUR INDIVIDUAL REQUIREMENTS. When stored in extremely cold temperature, the helmet should be warmed up to • The headband should be adjusted both in circumference and height. ambient temperature before welding. The angle between face and helmet should also be adjusted and recommended to be Inspect all parts for signs of wear or damage. -
Page 5: Mode Selection
Working Mode Explained Manual OFF, Manual ON If the lens is shut off manually, it has to be turned on by pressing 1. Standby Mode (Cut or Weld Mode) Press Fig.3a to switch the lens between on and off. Once the settings are confirmed, the helmet is ready to be used for welding and cutting applications, the lens will be automatically darkening when an arc is stroked(Fig.4a). -
Page 6: Setting Selection
Change of Settings Values SETTING SELECTION (Fig.6) are used to change shade, delay and sensitivity values. Weld or Cut mode, press , the selected parameter will blink, press the NOTE: The （Fig.5） is valid only in the Weld and Cut modes. to adjust the delay sensitivity or shade. -
Page 7: Maintenance
7.MAINTENANCE Grinding mode will not response to any welding arc, and ALWAYS change the shade REPLACEMENT OF BATTERIES setting back to 5-8/9-14 after grinding. 1) Detach the auto darkening lens from the SCAN TO WATCH VIDEO helmet shield (Refer to REPLACEMENT OF WELDING LENS). 5.SHADE TEST/LOCK 2) Carefully open the battery compartments. - Page 8 Feed the top edge of the cartridge back to filter helmet shield (Fig11a ). Push the bottom edge REPLACEMENT OF WELDING LENS of the cartridge firmly and pull the lock lugs downwards to completely lock the cartridge (Fig.11b). Pull up the two lock lugs on the bottom of the filter (Fig.13a), the filter...
-
Page 9: Troubleshooting
8.INSPECTION 1. Carefully inspect your Auto-Darkening Welding lens regularly. If the described malfunctions cannot be solved, stop using the helmet immediately and contact 2. Cracked, pitted or scratched lens glass or cover lenses reduced vision will seriously impair the nearest distributor. protection.
