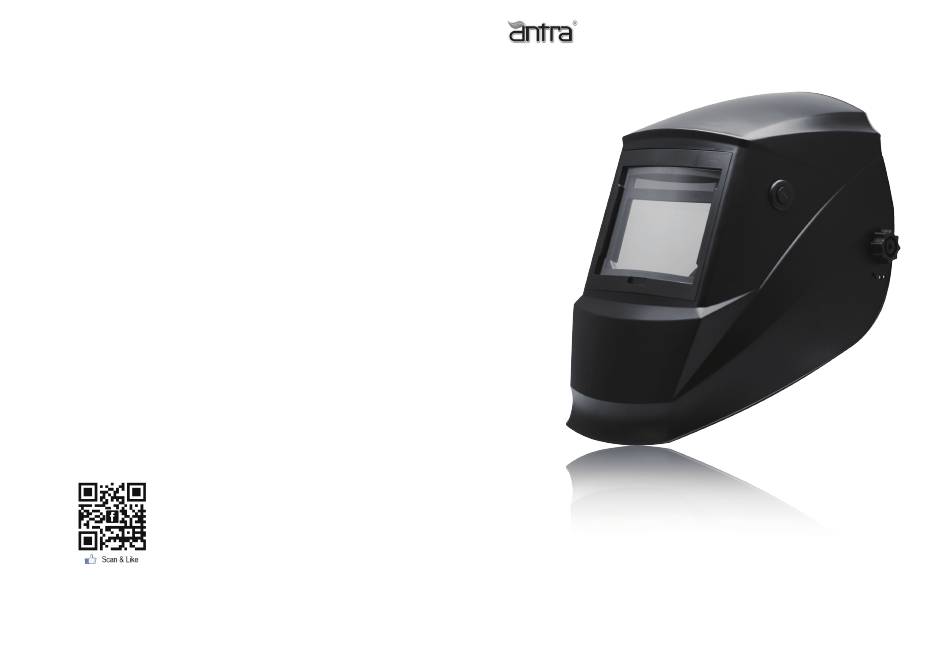

- Page 1 Customer Sevice Technical Info. DIGI PRO SEREIES Parts & Accessories Promotions www.facebook.com /AntraHelmets MODEL ：AH6-S60 Auto-Darkening Welding Helmet User Manual Made in china 2021...
-
Page 2: Important Safety Instructions
Digital-Pro SERIES ARC RAYS can burn eyes ! Never look at arc welding without proper eye protection. Arc rays from the Auto-Darkening Welding Helmet 2021 welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and Skin, Hot sparks fly off from the weld and can burn eyes and skin. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS FLYING METAL can injure eyes ! Model AH6-S60 • Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds ADF Model cool, they can throw off slag. • Wear ANSI approved safety glasses with side shields under your welding helmet. Viewing Area 98 x 62mm / 3.86"... -
Page 4: Operation
1.OPERATION When stored in extremely cold temperature, the helmet should be warmed up to • ambient temperature before welding. ADJUST THE HELMET ACCORDING TO YOUR INDIVIDUAL REQUIREMENTS. Inspect all parts for signs of wear or damage. Any scratched or cracked parts should be •... -
Page 5: Settings Adjustment
ments may be required. Sensitivity should be determined by the following factors: Applications, 2.SETTINGS ADJUSTMENT amperage of applications, interference: 1.SHADE CONTROL Applications: Stable arc, such as DC TIG. Non-stable arc, MMA/STICK, MIG, Plasma etc. Press the "M" button(7), until the mode indicator is on Shade(3), the LED screen(6) now shows the Amperage of Applications: Extreme low, low-medium, medium-high current shade number. -
Page 6: Maintenance
REPLACEMENT OF OUTER PROTECTION PLATE RECOMMENDED SETTINGS Take out the old outer protection plate (Fig.7). Place the new couter protection plate in the recess at the front of the helmet (Fig.8). Shade 8 Shade 9 Shade 10 Shade 11 Shade 12 Shade 13 Shade 14 Ensure the outer protection plate is mounted... -
Page 7: Troubleshooting
REPLACEMENT OF WELDING LENS 5) Insert and push the retainer ring from outside of the helmet until it is fully seated, 1. Front Protection Plate Frame removal and verify the “GRIND “ button is snug. （Fig.13-3） There are 4 lugs on the front protection plate frame, locked into the 4 slots on the shield. Use a tool like ball pen will make it much easier to loose these lugs. -
Page 8: Warranty
SLOW SWITCHING - The operating temperature is too low, don’t use at temperatures of below -5 ℃（+23℉）. POOR VISION - The protection plate and the lens cartridge is dirty or damaged, clean the dirty components and replace the damaged ones. - Ensure ambient light is not too low.
