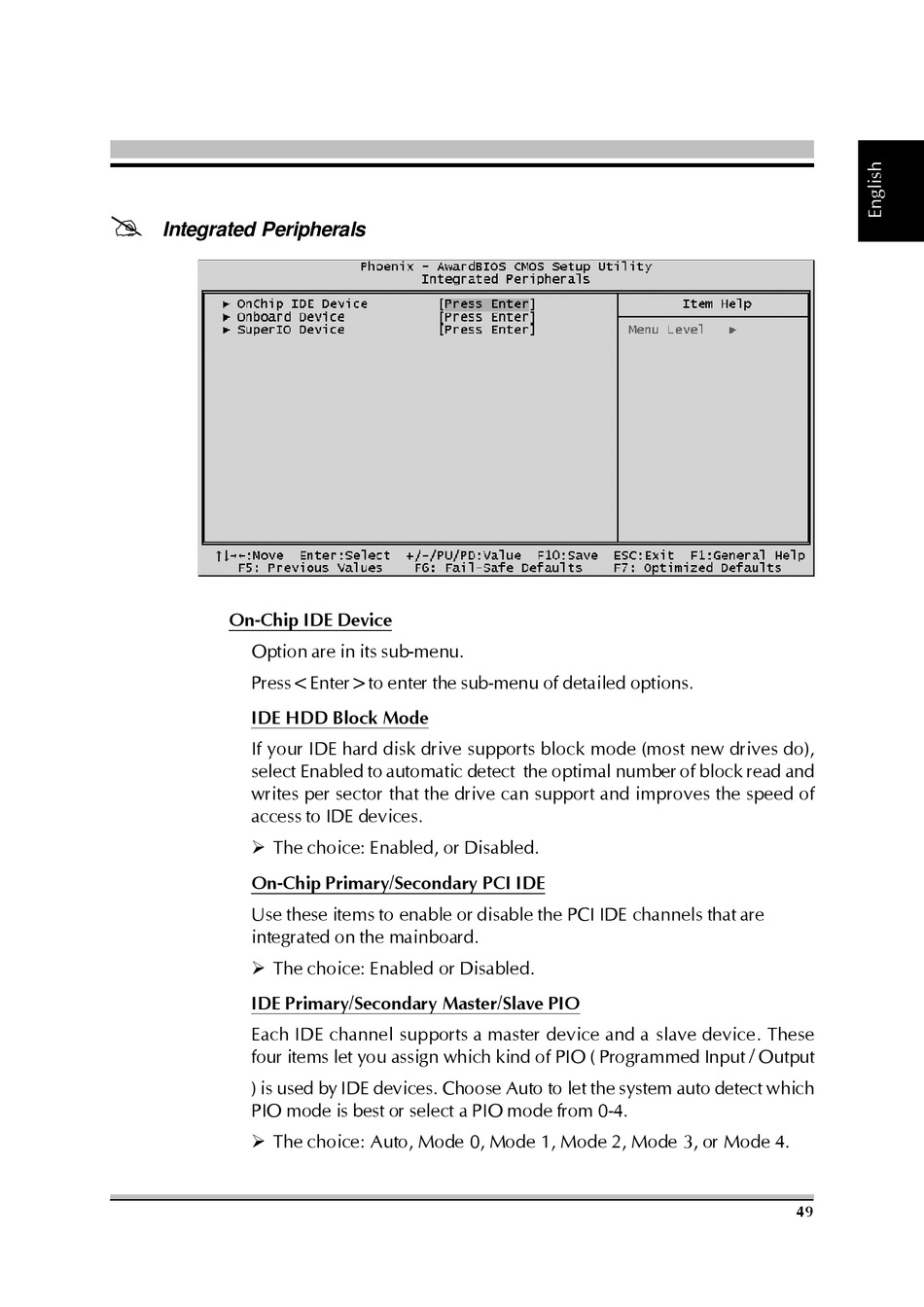

Integrated Peripherals

On-Chip IDE Device
Option are in its sub-menu.
Press<Enter>to enter the sub-menu of detailed options.
IDE HDD Block Mode
If your IDE hard disk drive supports block mode (most new drives do),
select Enabled to automatic detect the optimal number of block read and
writes per sector that the drive can support and improves the speed of
access to IDE devices.
Ø The choice: Enabled, or Disabled.
On-Chip Primary/Secondary PCI IDE
Use these items to enable or disable the PCI IDE channels that are
integrated on the mainboard.
Ø The choice: Enabled or Disabled.
IDE Primary/Secondary Master/Slave PIO
Each IDE channel supports a master device and a slave device. These
four items let you assign which kind of PIO ( Programmed Input / Output
) is used by IDE devices. Choose Auto to let the system auto detect which
PIO mode is best or select a PIO mode from 0-4.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.
49
