< 2.2.3 Install the ICE Module

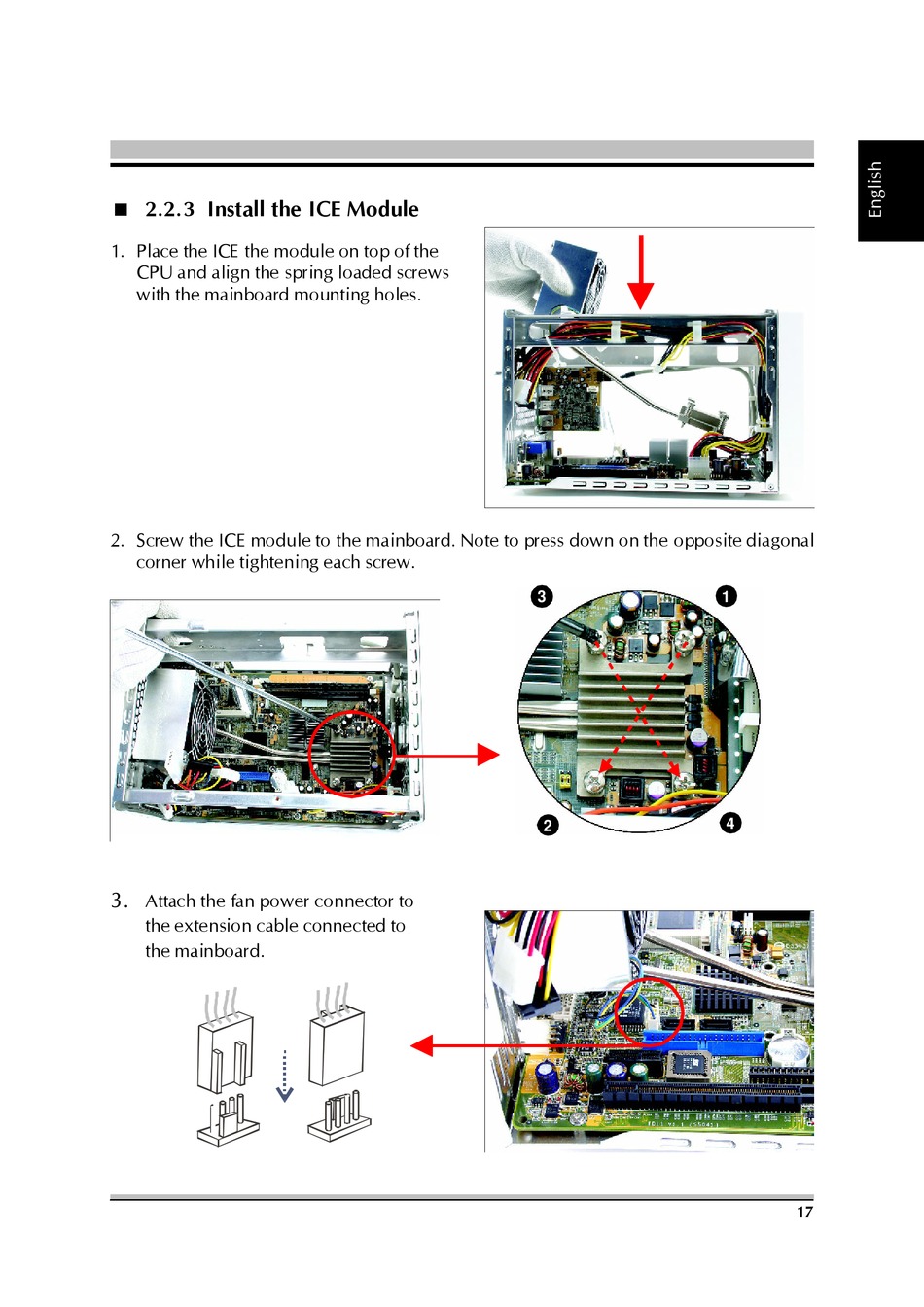

1. Place the ICE the module on top of the
CPU and align the spring loaded screws
with the mainboard mounting holes.
2. Screw the ICE module to the mainboard. Note to press down on the opposite diagonal
corner while tightening each screw.
3.
Attach the fan power connector to
the extension cable connected to
the mainboard.
