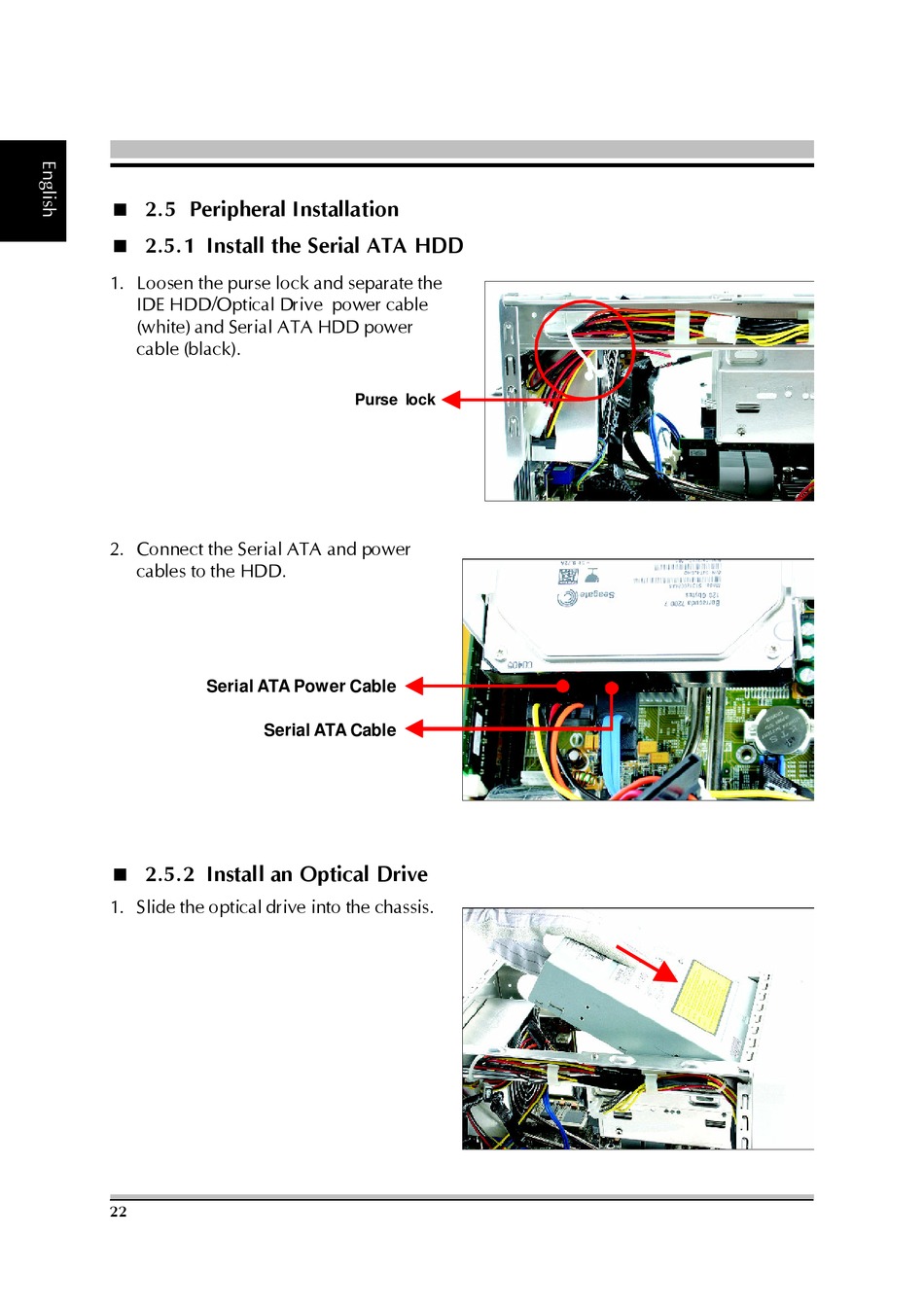

< 2.5 Peripheral Installation
< 2.5.1 Install the Serial ATA HDD
1. Loosen the purse lock and separate the
IDE HDD/Optical Drive power cable
(white) and Serial ATA HDD power
cable (black).
2. Connect the Serial ATA and power
cables to the HDD.
Serial ATA Power Cable
Serial ATA Cable
< 2.5.2 Install an Optical Drive
1. Slide the optical drive into the chassis.
22
Purse lock
