Xpc Mainboard; Fd11 Mainboard Illustration - Shuttle XPC SD11G5 User Manual

< 1.5 XPC Mainboard

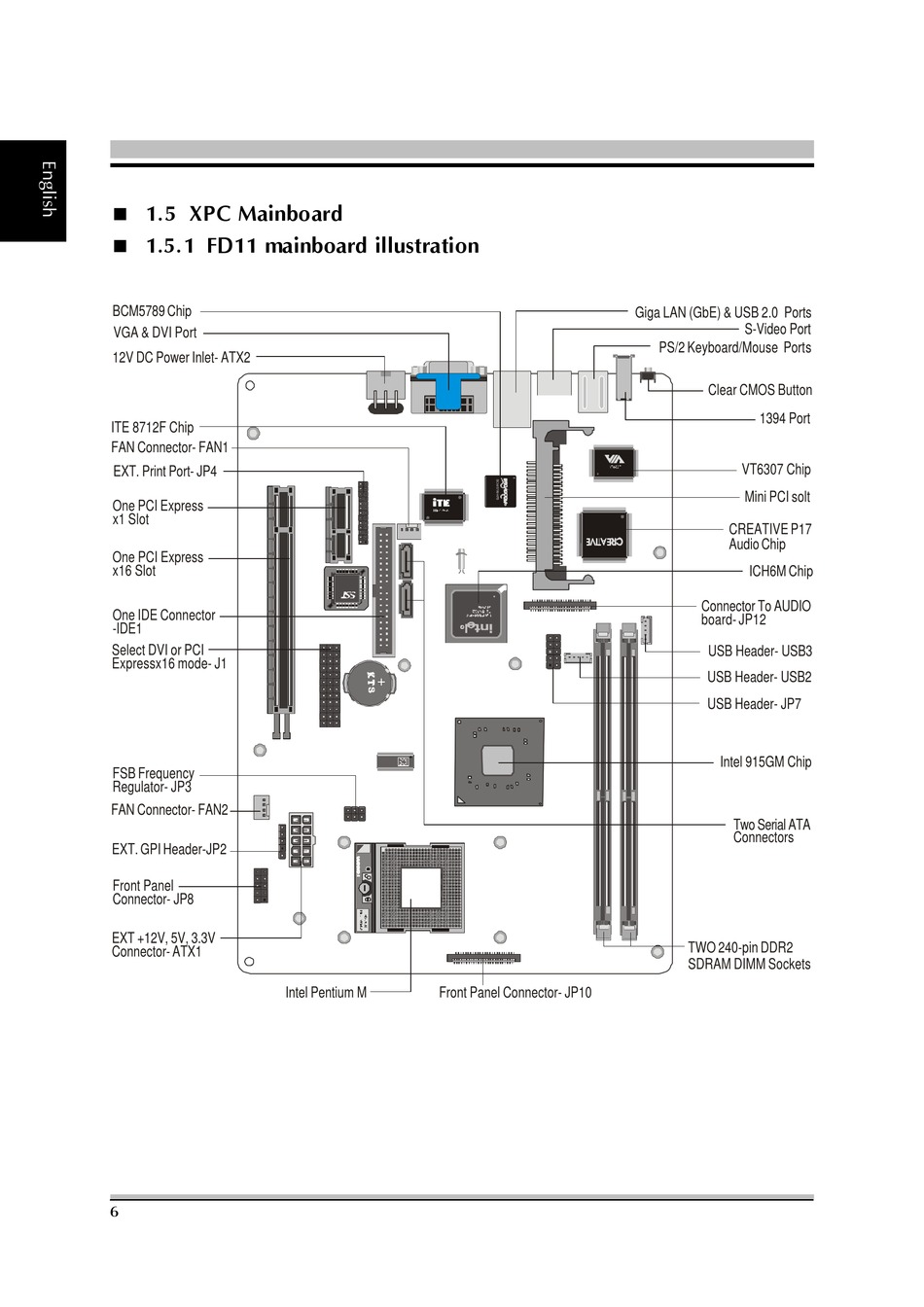

< 1.5.1 FD11 mainboard illustration
BCM5789 Chip
VGA & DVI Port
12V DC Power Inlet- ATX2
ITE 8712F Chip
FAN Connector- FAN1
EXT. Print Port- JP4
One PCI Express
x1 Slot
One PCI Express
x16 Slot
One IDE Connector
-IDE1
Select DVI or PCI
Expressx16 mode- J1
FSB Frequency
Regulator- JP3
FAN Connector- FAN2
EXT. GPI Header-JP2
Front Panel
Connector- JP8
EXT +12V, 5V, 3.3V
Connector- ATX1
6
Intel Pentium M Front Panel Connector- JP10
Giga LAN (GbE) & USB 2.0 Port s
S-Video Port
PS/2 Keyboard/Mouse Port s
Clear CMOS Button
1394 Port
VT6307 Chip
Mini PCI solt
CREATIVE P17
Audio Chip
ICH6M Chip
Connector To AUDIO
board- JP12
USB Header- USB3
USB Header- USB2
USB Header- JP7
Intel 915GM Chip
Two Serial ATA
Connectors
TWO 240-pin DDR2
SDRAM DIMM Sockets
