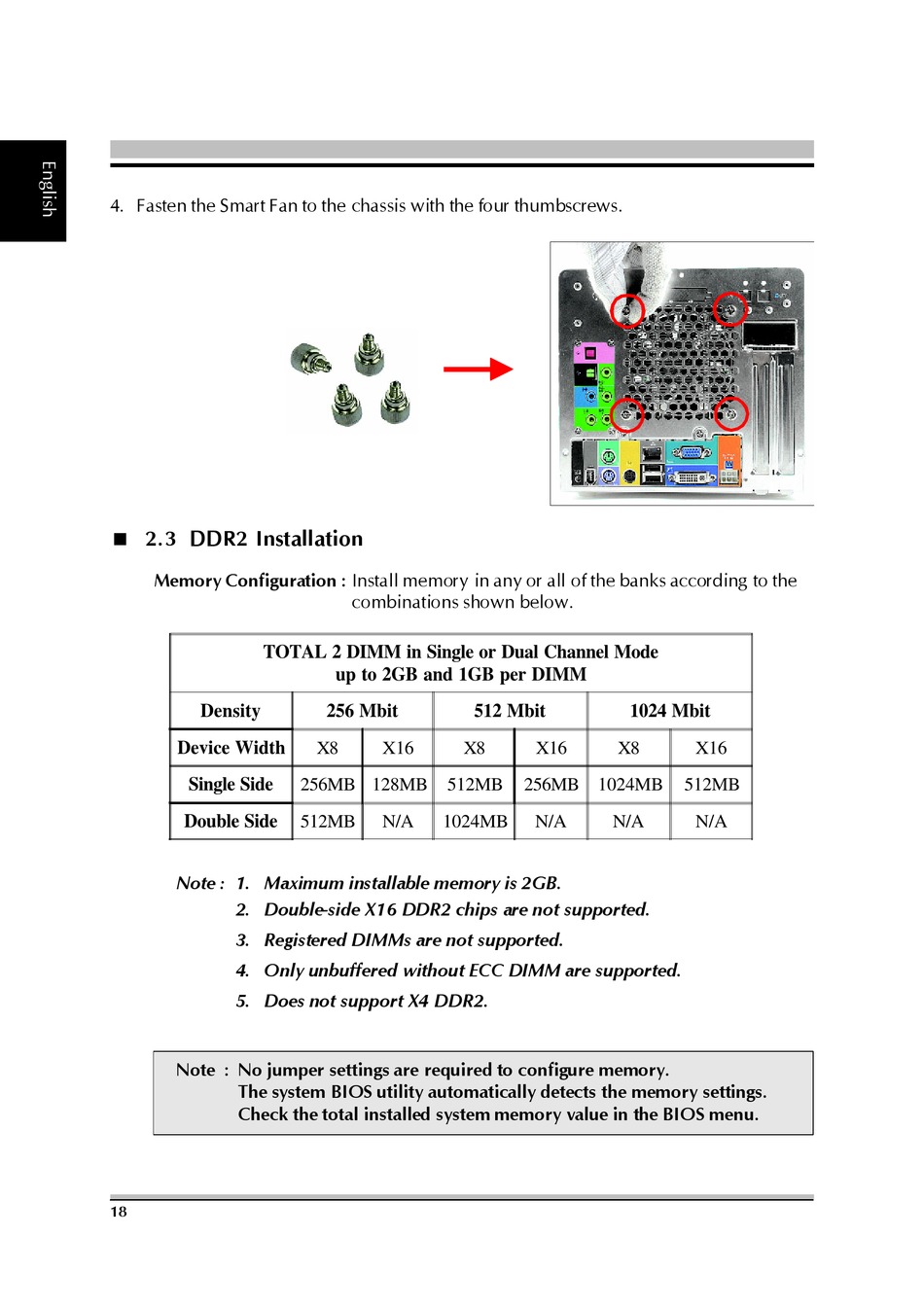

4. Fasten the Smart Fan to the chassis with the four thumbscrews.
< 2.3 DDR2 Installation
Memory Configuration : Install memory in any or all of the banks according to the
TOTAL 2 DIMM in Single or Dual Channel Mode
Density
Device Width
Single Side
Double Side
Note : 1. Maximum installable memory is 2GB.
2. Double-side X16 DDR2 chips are not supported.
3. Registered DIMMs are not supported.
4. Only unbuffered without ECC DIMM are supported.
5. Does not support X4 DDR2.
Note : No jumper settings are required to configure memory.
The system BIOS utility automatically detects the memory settings.
Check the total installed system memory value in the BIOS menu.
18
combinations shown below.
up to 2GB and 1GB per DIMM
256 Mbit
512 Mbit
X8
X16
X8
256MB 128MB 512MB
512MB
N/A
1024MB
1024 Mbit
X16
X8
X16
256MB 1024MB
512MB
N/A
N/A
N/A
