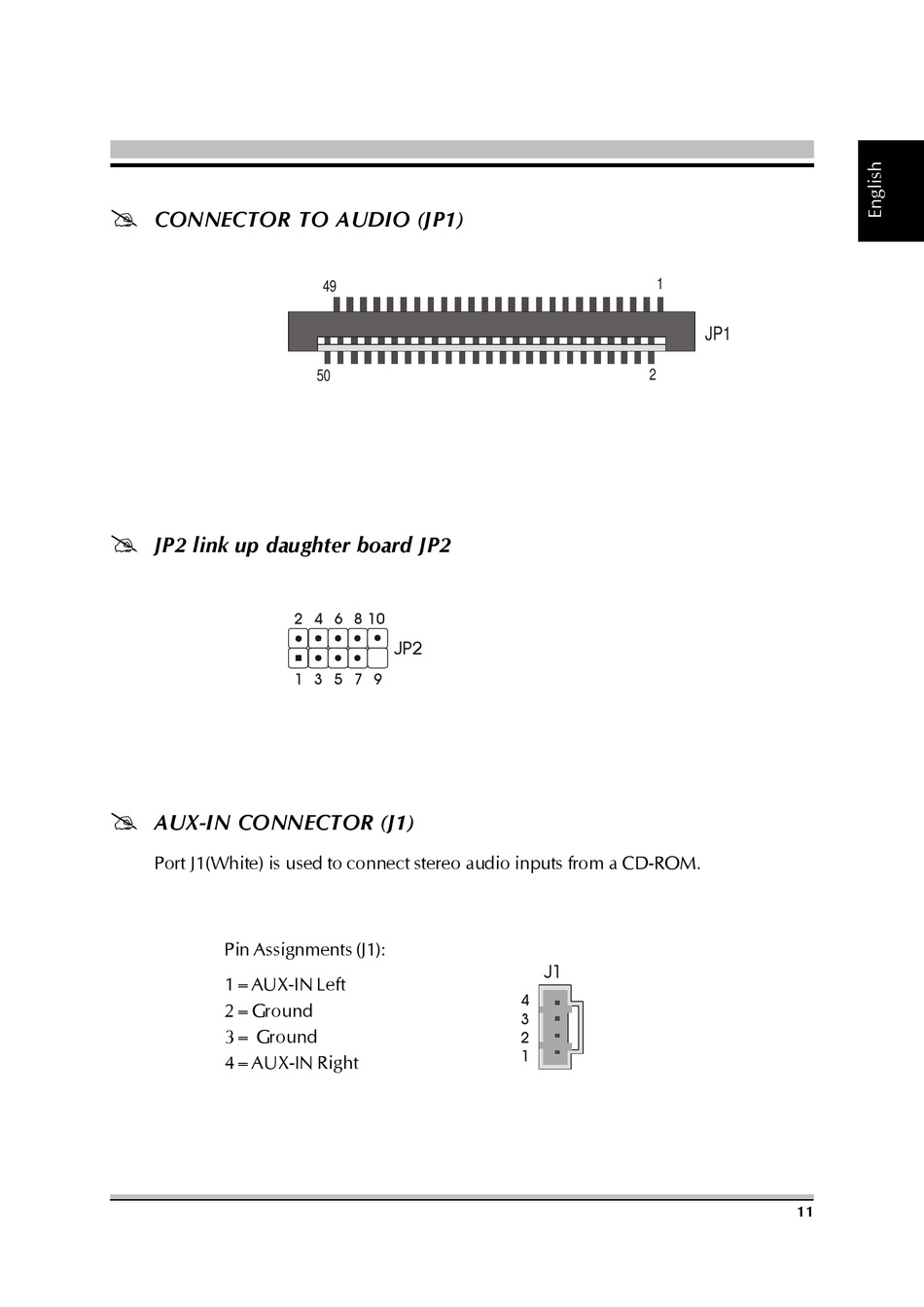

CONNECTOR TO AUDIO (JP1)

@

JP2 link up daughter board JP2

@

AUX-IN CONNECTOR (J1)

Port J1(White) is used to connect stereo audio inputs from a CD-ROM.
Pin Assignments (J1):
1=AUX-IN Left
2=Ground
3= Ground
4=AUX-IN Right
49
50
2 4 6 8 10
JP2
1 3 5 7 9
1
2
J1
4
3
2
1
JP1
2
11
