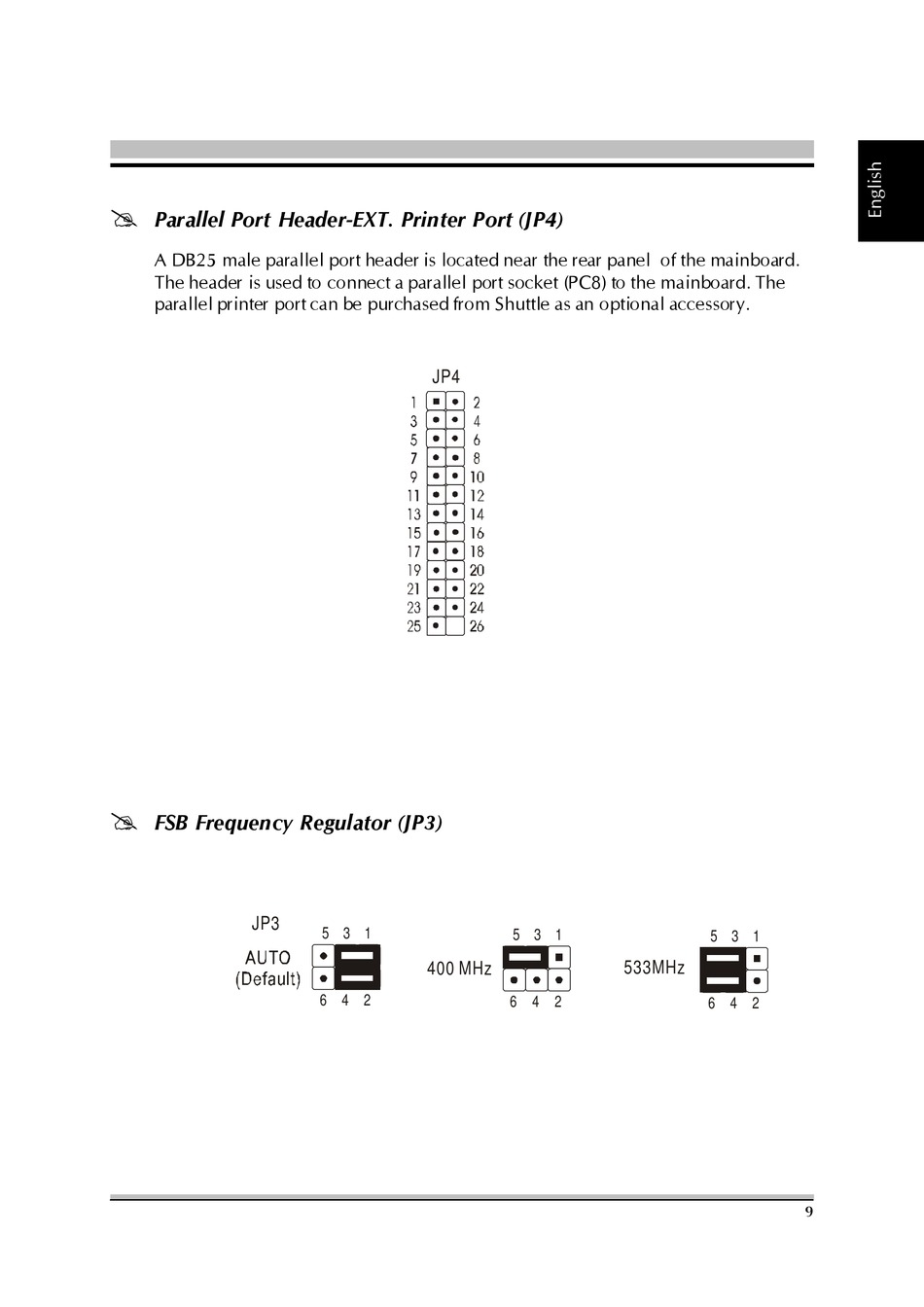

Parallel Port Header-EXT. Printer Port (JP4)

A DB25 male parallel port header is located near the rear panel of the mainboard.
The header is used to connect a parallel port socket (PC8) to the mainboard. The
parallel printer port can be purchased from Shuttle as an optional accessory.
@

FSB Frequency Regulator (JP3)

JP3
JP4
5 3 1
400 MHz
6 4 2
5 3 1
533MHz
6 4 2
5 3 1
6 4 2
