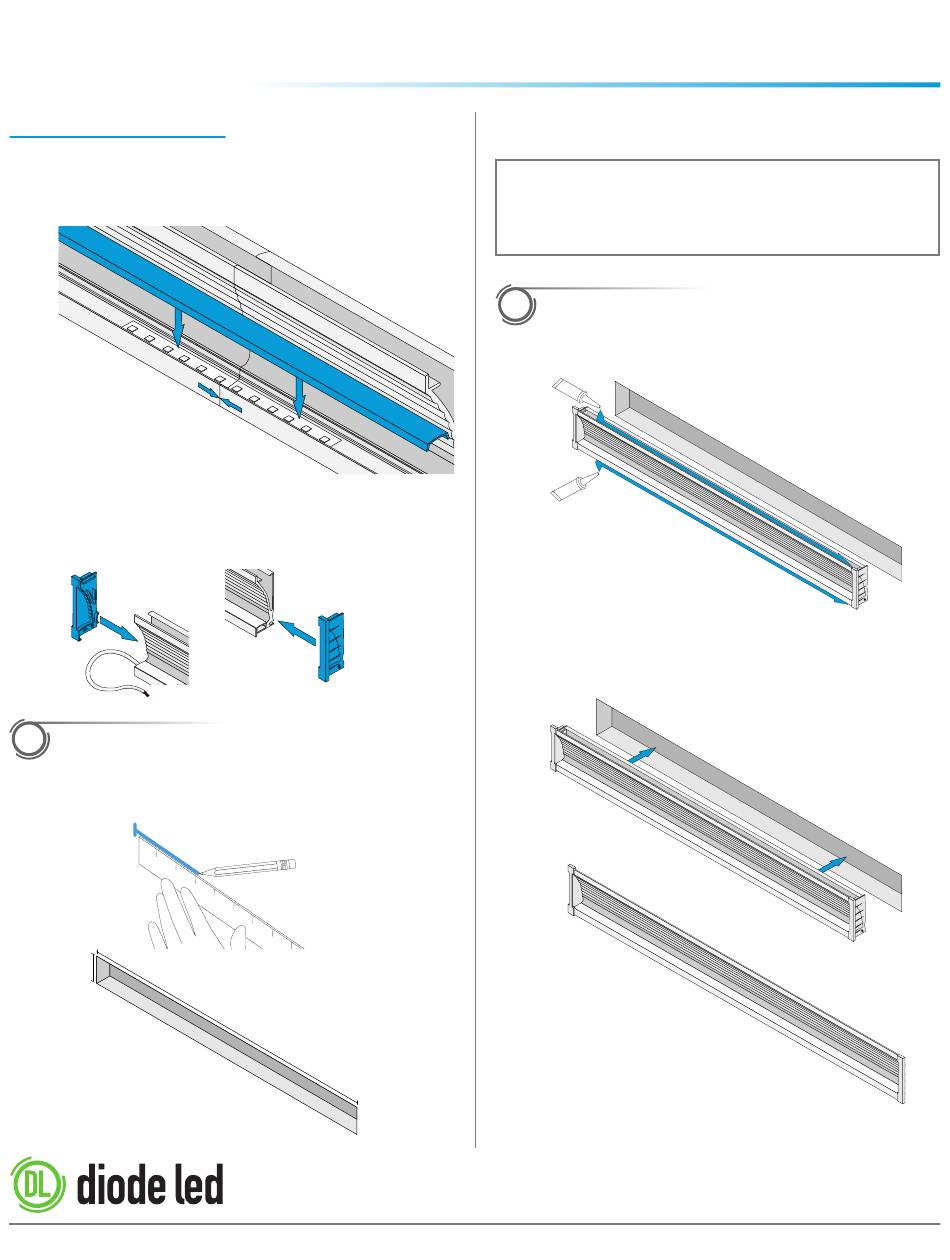

INSTALLATION (CONT.)
4.3
To bridge between two channels, lay channels
end-to-end, then place cover over gap to keep ends
flush.
4.4
Attach end caps. Adhere with adhesive or glue if desired.
Open end cap
5
CUT AREA FOR CHANNEL MOUNTING
Unless channel length has been modified, cut 48.5" x
2.5" rectangle from surface.
2.5"
CHROMAPATH BUNDLE: REFLECTOR
®
Closed end cap
48.5"
®
Toll Free: 877.817.6028 | Fax: 415.592.1596 | www.DiodeLED.com | info@DiodeLED.com
© 2018 Elemental LED, Inc. All rights reserved. Specifications are subject to change without notice.
INSTALLATION GUIDE
CHROMAPATH
Note: When cutting into surface for mounting, leave space
for wiring to connect LED's to power source. Always observe
local and national electrical code during installation.
6
MOUNT CHROMAPATH FIXTURE
6.1
Apply adhesive to top and bottom of channel behind
flanges.
6.2
Insert channel into mounting space. Allow adhesive to
dry.
4 OF 3
BUNDLE: REFLECTOR
®
ALUMINUM CHANNEL
INSTALLATION GUIDE
