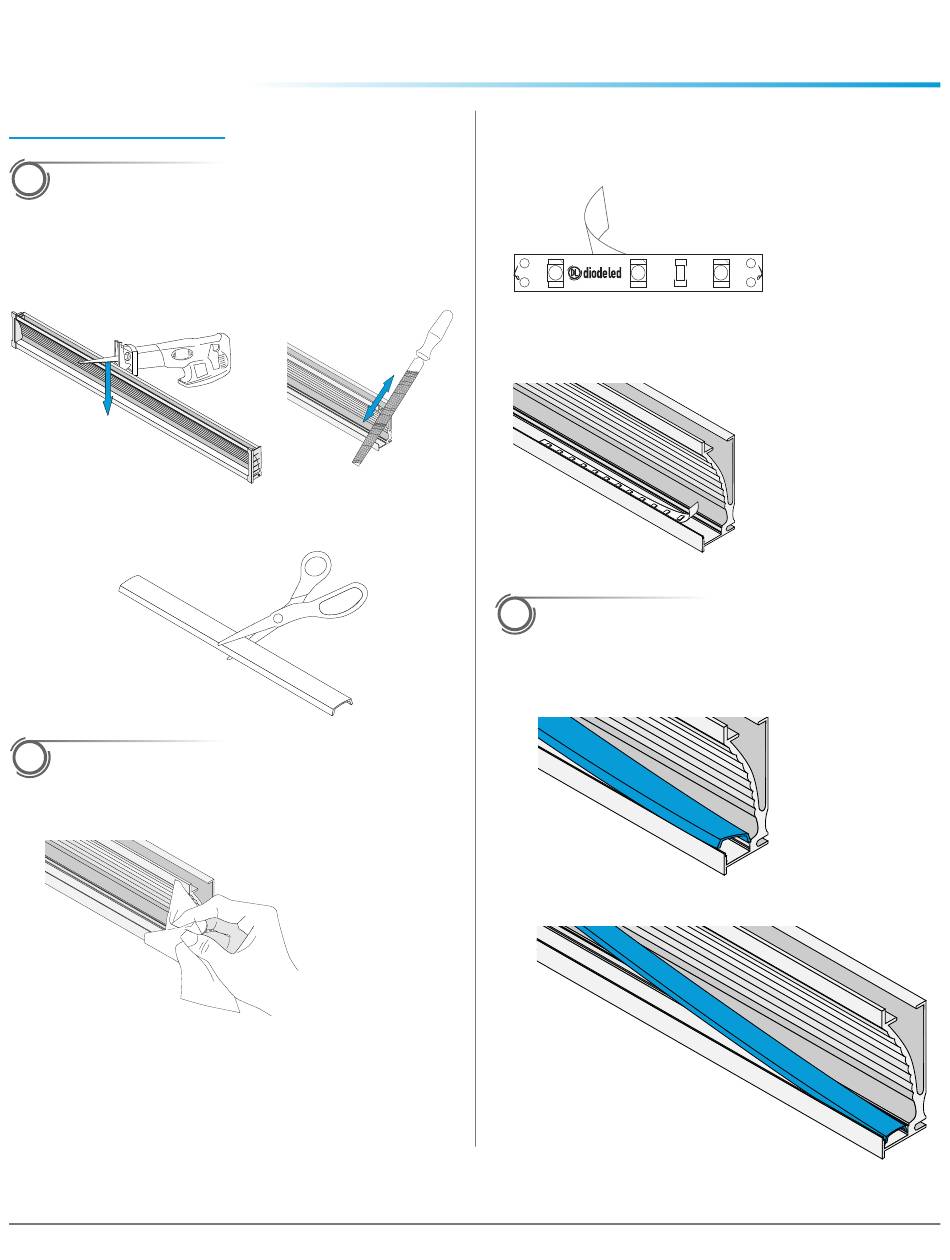

DIODE LED CHROMAPATH BUNDLE REFLECTOR Installation Manual page 3

INSTALLATION (CONT.)
2
CUT CHANNEL & COVER.
ALUMINUM CHANNELS
Channels can be cut to size with a bandsaw, rotary saw,
or handsaw fitted with an appropriate blade to cut metal
objects. Once cut, finish edges with metal file.
CHANNEL COVERS
Covers can be cut to size with heavy duty scissors or a
saw.
3
CLEAN CHANNEL AND ADHERE TAPE LIGHT
3.1
Run an alcohol wipe along the inside of the channel to
remove any dust or debris.
CHROMAPATH BUNDLE: REFLECTOR
®
INSTALLATION GUIDE
CHROMAPATH
3.2
Peel off 3M
™
®
3.3
Press Tape Light gently but firmly against channel, taking
care not to press directly on LEDs.
4
ASSEMBLE CHROMAPATH FIXTURE
4.1 INSERT COVER
Fasten cover by firmly pressing one edge into channel,
then the other.
4.2 Continue pressing in lens along channel until fully seated.
3 OF 3
BUNDLE: REFLECTOR
®
ALUMINUM CHANNEL
INSTALLATION GUIDE
adhesive backing from Tape Light.
−
+
IG061518-2.0
