DIODE LED CHROMAPATH BUNDLE REFLECTOR Installation Manual page 2

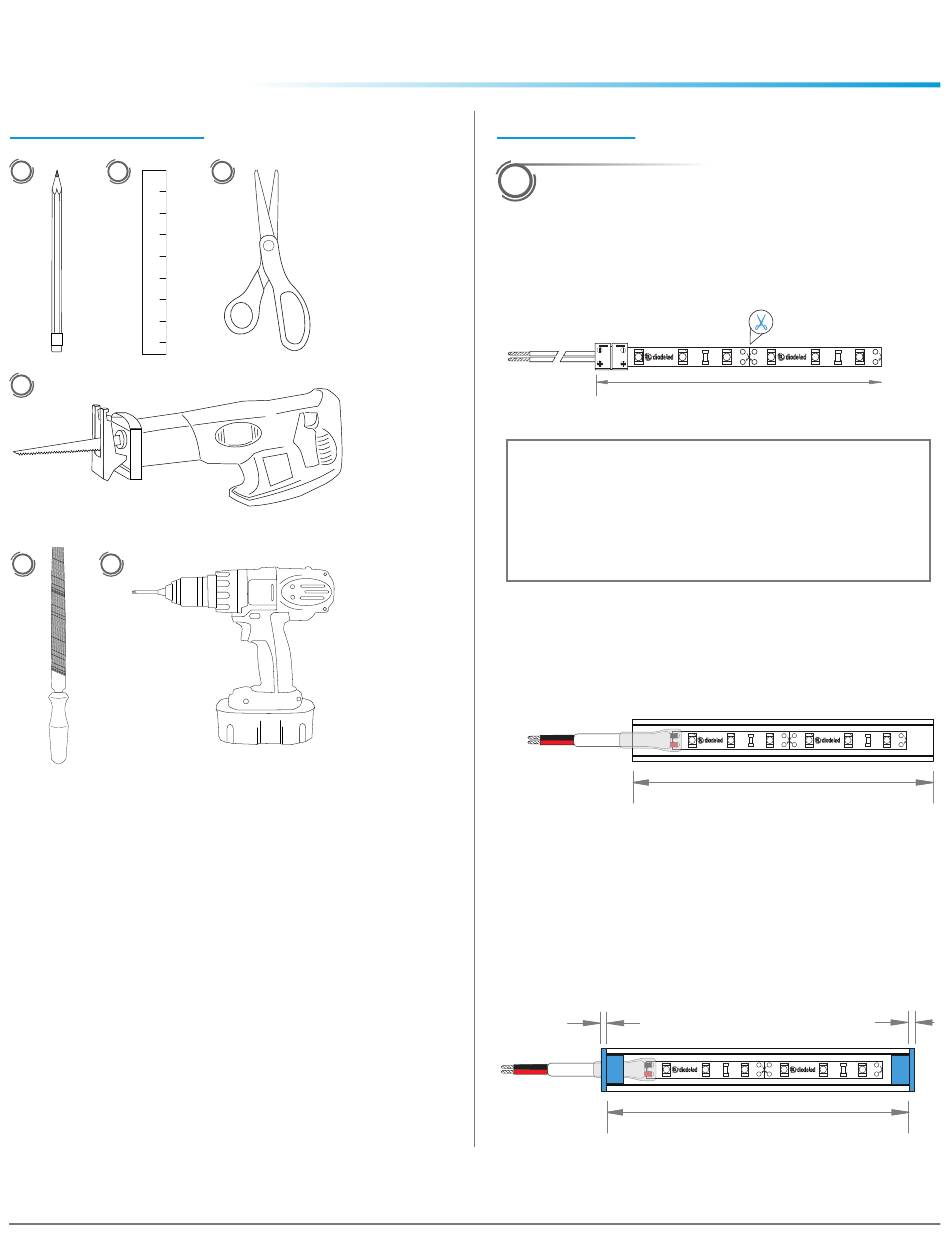

TOOLS FOR INSTALL
1 2
4
5 6
1. Pencil
2. Ruler
3. Scissors
CHROMAPATH BUNDLE: REFLECTOR
®
3
4. Band Saw or Rotary Saw
5. Metal File
6. Screwdriver / Electric Drill
INSTALLATION GUIDE
CHROMAPATH
INSTALLATION
1
DETERMINE TAPE LIGHT & CHANNEL
LENGTH.
1.1 DETERMINE TAPE LIGHT LENGTH
Cut to desired length (cut at scissors icon) and attach
appropriate connectors, which will slightly extend total
length. For this example the total length is 3 ft.
−
+
Ex. 3 ft. Tape Light + Connector
TEST CONNECTION.
Prior to assembling fixture, connect tape light to Class
2 LED driver and turn on power. Ensure connection is
secure and system is working properly. Turn off power
again before mounting. See tape light installation guide
for information on powering fixture.
1.2
DETERMINE CHROMAPATH CHANNEL CUT LENGTH
The simplest approach is to add 1 in. to CHROMAPATH
Channel and Cover, which will provide space to fit end
cap harness. The total channel length is now 3 ft. 1 in.
1.3
DETERMINE CHROMAPATH FIXTURE LENGTH
Reflector end caps add additional 1/4 in. length to each
side of CHROMAPATH channel.
Total Length = 2x End Caps + CHROMAPATH Channel
1/4 in.
(6mm)
2 OF 3
BUNDLE: REFLECTOR
®
ALUMINUM CHANNEL
INSTALLATION GUIDE
® ®
−
®
+
Ex. 3 ft. 1in. CHROMAPATH Channel
−
®
+
Ex. 3 ft. 1 1/2 in. CHROMAPATH Fixture
−
+
−
®
+
1/4 in.
(6mm)
−
®
+
IG061518-2.0
