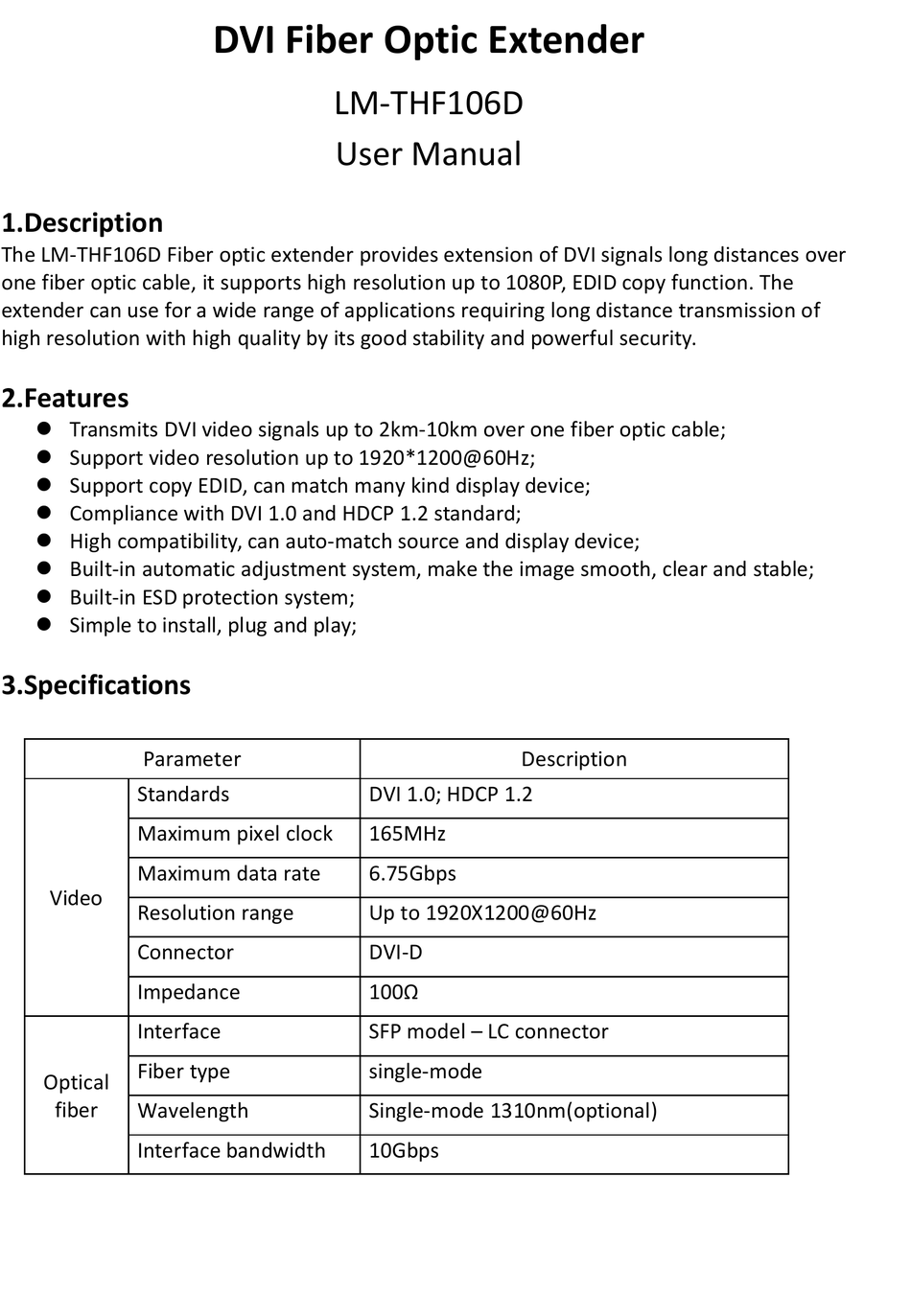

LINK-MI LM-THF106D User Manual

1.Description

The LM-THF106D Fiber optic extender provides extension of DVI signals long distances over
one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The
extender can use for a wide range of applications requiring long distance transmission of
high resolution with high quality by its good stability and powerful security.

2.Features

 Transmits DVI video signals up to 2km-10km over one fiber optic cable;
 Support video resolution up to 1920*1200@60Hz;
 Support copy EDID, can match many kind display device;
 Compliance with DVI 1.0 and HDCP 1.2 standard;
 High compatibility, can auto-match source and display device;
 Built-in automatic adjustment system, make the image smooth, clear and stable;
 Built-in ESD protection system;
 Simple to install, plug and play;

3.Specifications

Parameter
Standards
Maximum pixel clock
Maximum data rate
Video
Resolution range
Connector
Impedance
Interface
Fiber type
Optical
fiber
Wavelength
Interface bandwidth
DVI Fiber Optic Extender
LM-THF106D
User Manual
DVI 1.0; HDCP 1.2
165MHz
6.75Gbps
Up to 1920X1200@60Hz
DVI-D
100Ω
SFP model – LC connector
single-mode
Single-mode 1310nm(optional)
10Gbps
Description
