HDMI Uncompressed Video Fiber Optic Transmission

Model: LM-THF107D

USER MANUAL

Introduction

LM-THF107D is a set of extender device of high-definition video transmission which use

fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it

support audio transmission and RS232 transmission. This product is ideal for large-screen

display, conferencing systems and home entertainment and so on. The device has the ability

of anti-interference, to ensure the stability of the signal.

Compliance with HDMI1.3 standard,

Support HDMI signal input or output. (HDMI audio),

HDCP1.2

Study EDID function

The Transmitter support the transmission of the HDMI audio and the independent stereo

The Receiver support the output of the HDMI audio and the Independent stereo

Support 1080p 60H, single mode fiber transmission up to 10 KM

Real-time transmission of high-definition uncompressed digital HDMI video signal, the

video is clear and stable

Built-in ESD protection circuitry, can effectively prevent electrostatic damage

Site installation: easy, plug and play, no need to set

Support serial unidirectional transmission, baud rate adaptive.

Table of Contents

Do you have a question about the LM-THF107D and is the answer not in the manual?

Page 1 USER MANUAL Introduction LM-THF107D is a set of extender device of high-definition video transmission which use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it support audio transmission and RS232 transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on.

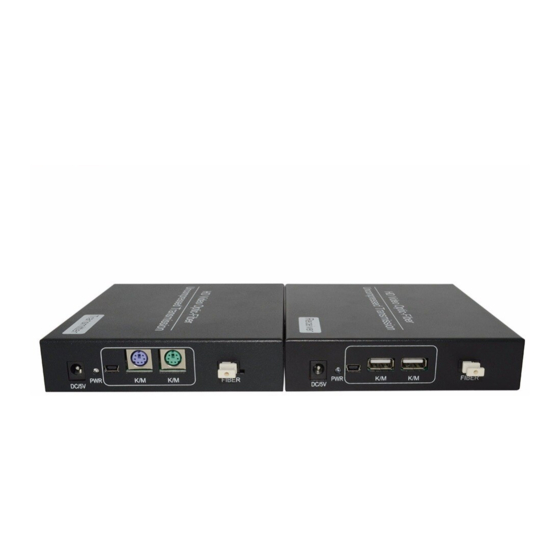

Page 2 Package Contents: DVI fiber Transmitter 1pcs DVI fiber Receiver 1pcs Power Adapter 5V/2A 2pcs User Manual 1pcs Panel Descriptions Transmitter Receiver...
Page 3 Port Description Transmitter port Function Description INPUT DVI Input(support HDMI input) Stereo audio input, when accessed to audio, HDMI audio Audio IN is not transmitted RS232 DB9 serial port DC/5V Power input 5V2A Fiber Optical interface LC interface Receiver port Function Description OUTPUT DVI Output(Support HDMI output)
Page 4 Input Power DC 5V / 2A Transmitter Power Consumption Receiver Dimensions H*W*D 136mm*130mm*30mm Package Size 300*252*100mm Weight 1.8kg Installation Connect the DVI signal source to the DVI fiber optic Transmitter. Connect the stereo audio to the DVI fiber optic Transmitter.(If you have a need.) Connect the output DVI signal of the Receiver to the displayer(Such as high-definition TV, splicing screen, etc.).
