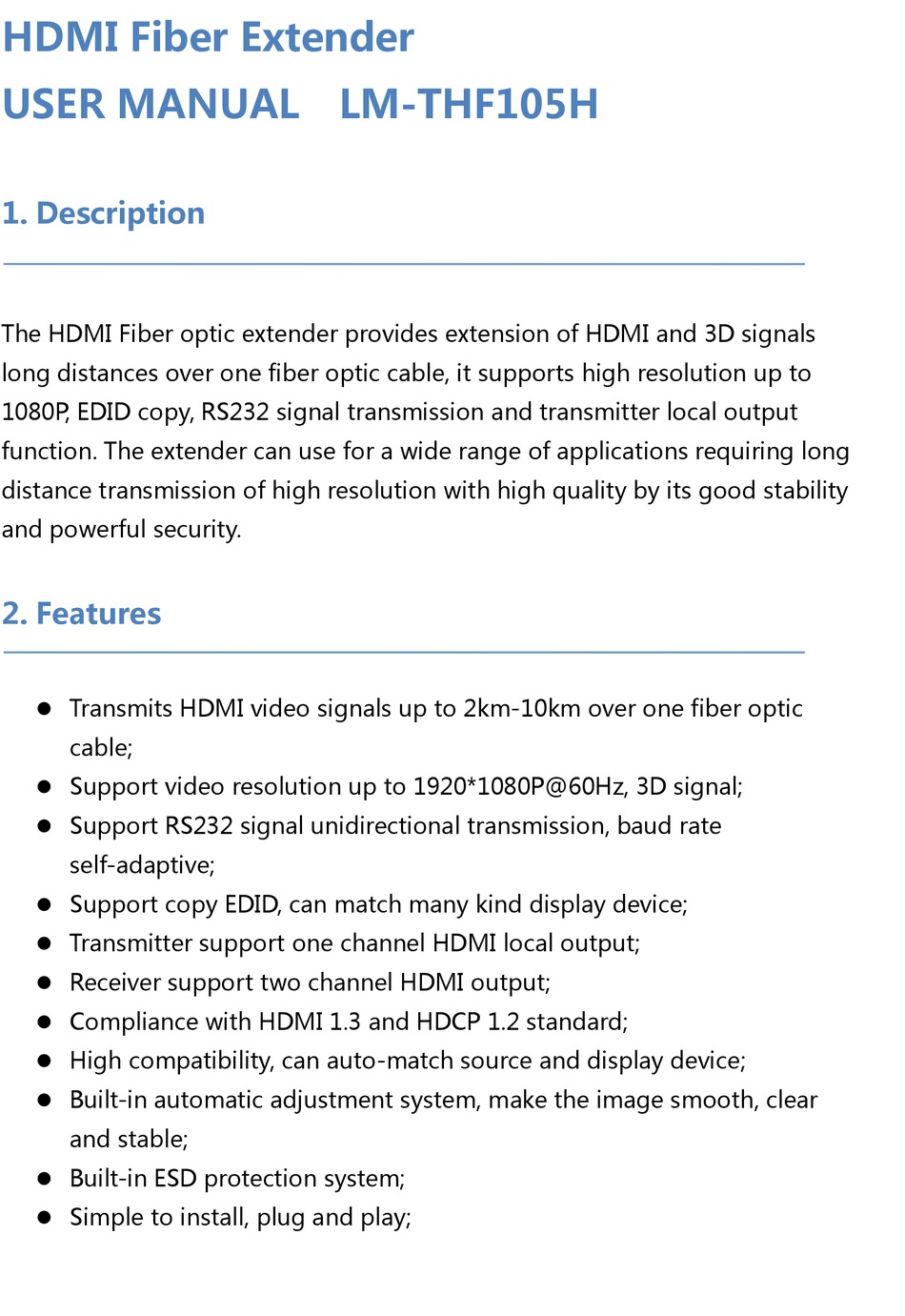

HDMI Fiber Extender
USER MANUAL LM-THF105H

1. Description

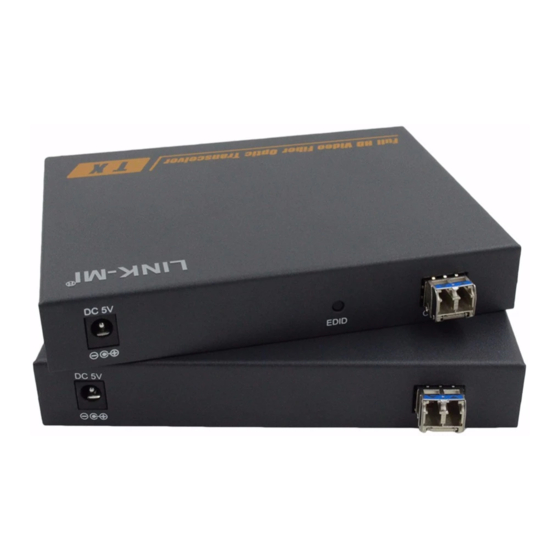

The HDMI Fiber optic extender provides extension of HDMI and 3D signals
long distances over one fiber optic cable, it supports high resolution up to
1080P, EDID copy, RS232 signal transmission and transmitter local output
function. The extender can use for a wide range of applications requiring long
distance transmission of high resolution with high quality by its good stability
and powerful security.

2. Features

 Transmits HDMI video signals up to 2km-10km over one fiber optic
cable;
 Support video resolution up to 1920*1080P@60Hz, 3D signal;
 Support RS232 signal unidirectional transmission, baud rate
self-adaptive;
 Support copy EDID, can match many kind display device;
 Transmitter support one channel HDMI local output;
 Receiver support two channel HDMI output;
 Compliance with HDMI 1.3 and HDCP 1.2 standard;
 High compatibility, can auto-match source and display device;
 Built-in automatic adjustment system, make the image smooth, clear
and stable;
 Built-in ESD protection system;
 Simple to install, plug and play;
