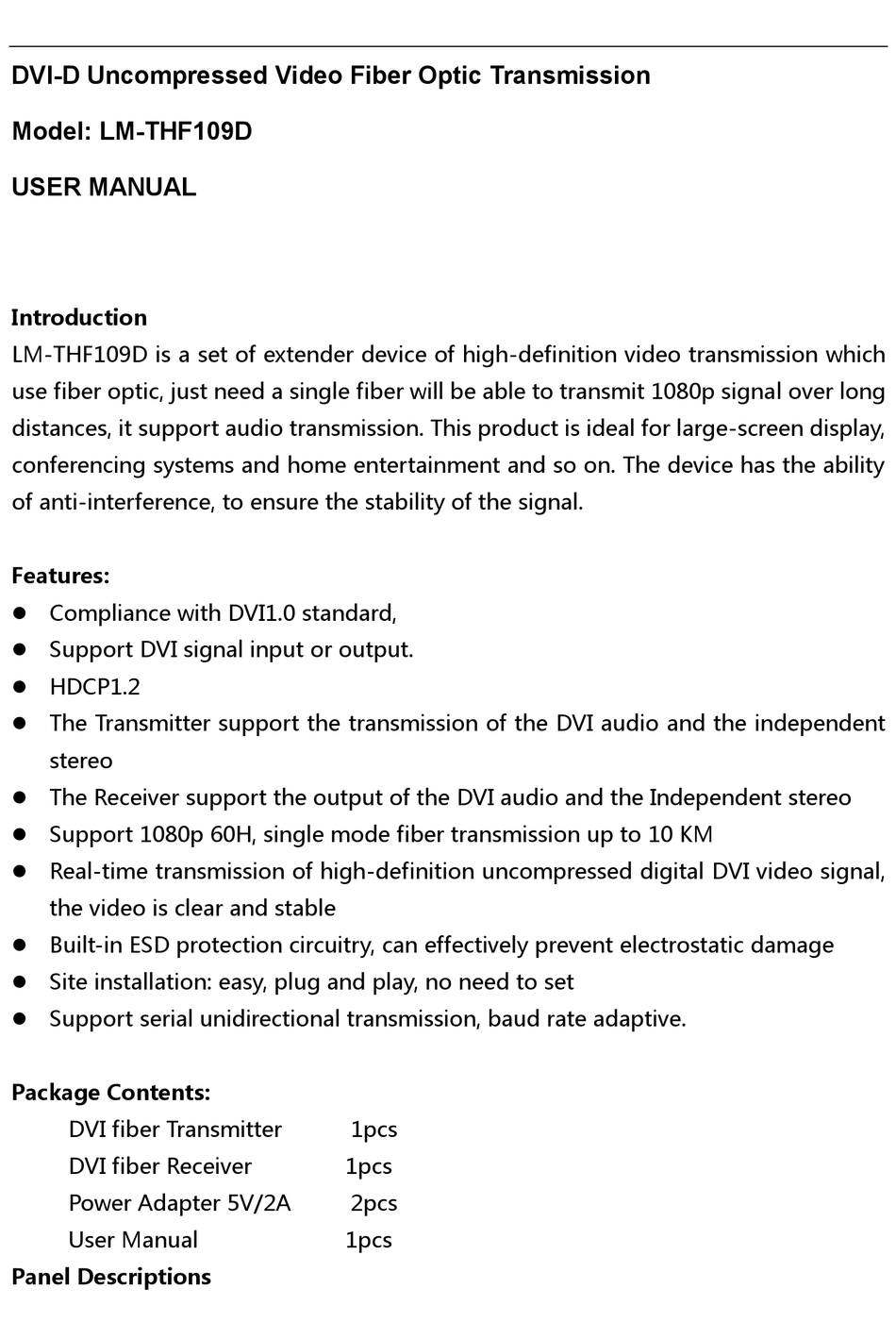

LINK-MI LM-THF109D User Manual

DVI-D Uncompressed Video Fiber Optic Transmission
Model: LM-THF109D
USER MANUAL

Introduction

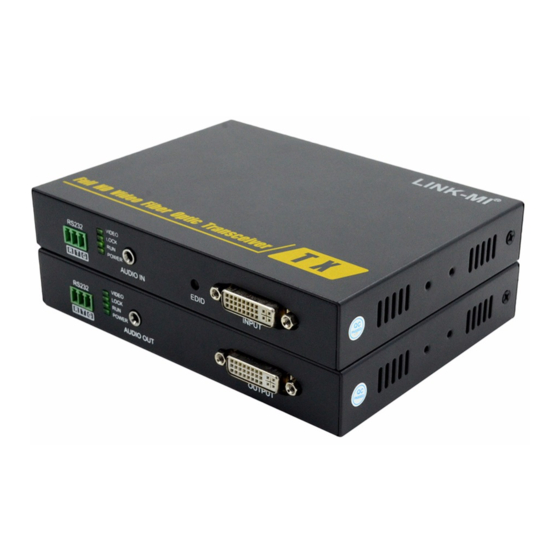

LM-THF109D is a set of extender device of high-definition video transmission which
use fiber optic, just need a single fiber will be able to transmit 1080p signal over long
distances, it support audio transmission. This product is ideal for large-screen display,
conferencing systems and home entertainment and so on. The device has the ability
of anti-interference, to ensure the stability of the signal.

Features:

 Compliance with DVI1.0 standard,
 Support DVI signal input or output.
 HDCP1.2
 The Transmitter support the transmission of the DVI audio and the independent
stereo
 The Receiver support the output of the DVI audio and the Independent stereo
 Support 1080p 60H, single mode fiber transmission up to 10 KM
 Real-time transmission of high-definition uncompressed digital DVI video signal,
the video is clear and stable
 Built-in ESD protection circuitry, can effectively prevent electrostatic damage
 Site installation: easy, plug and play, no need to set
 Support serial unidirectional transmission, baud rate adaptive.

Package Contents:

DVI fiber Transmitter
DVI fiber Receiver
Power Adapter 5V/2A
User Manual

Panel Descriptions

1pcs
1pcs
2pcs
1pcs
