Axxess AX-LR903 Installation Instructions Manual

Land Rover Range Rover Evoque
Data Interface with SWC & Factory Display Retention
INTERFACE FEATURES
• Provides accessory power
• Designed for amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains parking sensor chimes
* Attention! The aftermarket radios backup camera input will be used to display the vehicle settings. If the radio doesn't have a backup camera
Input, then there will be no visualization of the vehicle settings. An externally mounted screen could be substituted in this situation.

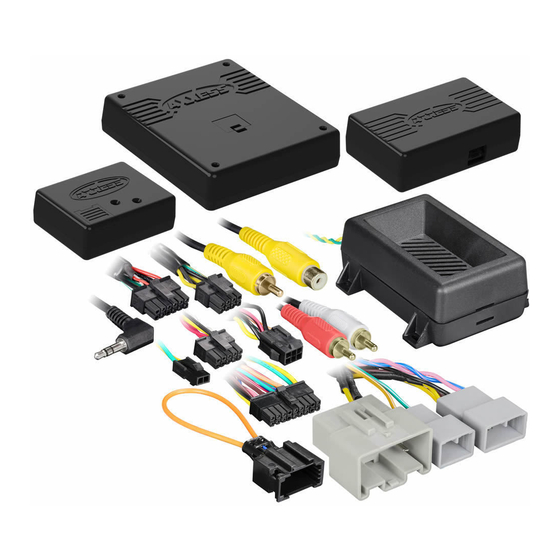

INTERFACE COMPONENTS
• AX-LR903 interface
• AX-LR903 amplifier interface
• ASWC-1 interface
• AX-LR903 harness
AxxessInterfaces.com
(with M.O.S.T. 25 amplifier)
2011-2014
• Retains balance
• Retains factory features: date, time
• Retains most of the vehicle settings that was displayed on the
factory radio *
• Micro "B" USB updatable
• ASWC-1 harness
• M.O.S.T. jumper harness
• Female 3.5mm connector with stripped leads
• Chime speaker
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-LR903
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made ....................................2-3
Installing the AX-LR903 interface .........................3
Programming the ASWC-1 interface ................. 3-4
Screen operation ................................................4-6
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 9/25/18 INSTAX-LR903
