INTERFACE COMPONENTS
• AXDIS-BW122 interface
• AXDIS-BW122 amplifier interface
• AXSWC interface
APPLICATIONS
BMW
1-Series
2004-2013
AxxessInterfaces.com
BMW
INTERFACE FEATURES
• Provides accessory power (12 volt 10 amp)
• Retains R.A.P. (retained accessory power)
• Designed for amplified models
• Retains audio controls on the steering wheel
• Retains phone buttons (radio dependent)
• Retains factory features: date, time, temperature display
• Micro-B USB updatable

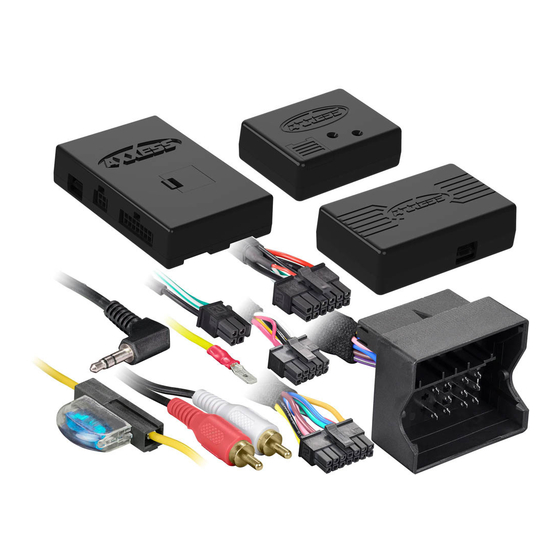

• AXDIS-BW122 harness
• AXSWC harness
• 3.5mm adapter
3-Series
2005-2012
(with M.O.S.T. 25 amplifier)
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AXDIS-BW122
I N S TA L L AT I O N I N S T R U C T I O N S
2004-2013
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
Product Info
REV. 11/13/19 INSTAXDIS-BW122
Advertisement
Related Manuals for Axxess AXDIS-BW122
Summary of Contents for Axxess AXDIS-BW122
- Page 1 • Crimping tool and connectors, or solder gun, • Micro-B USB updatable solder, and heat shrink • Tape • Wire cutter • Zip ties INTERFACE COMPONENTS • AXDIS-BW122 interface • AXDIS-BW122 harness • AXDIS-BW122 amplifier interface • AXSWC harness Product Info • AXSWC interface • 3.5mm adapter APPLICATIONS 1-Series...
- Page 2 CONNECTIONS From the aftermarket radio to the AXDIS-BW122 harness, connect the: AXSWC harness: This harness is only to be used if the vehicle is equipped with steering wheel controls. • Black wire to the ground wire. • Connect the Black wire to the chassis ground. • Yellow wire to the battery wire.
- Page 3 For example, if you are installing a JVC radio, • Remove the dust cover from fiber optic port in the AXDIS-BW122 amplifier interface. the AXSWC will flash Red (5) times, and then stop. Following is a legend that dictates which •...
- Page 4 AXDIS-BW122 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com...
