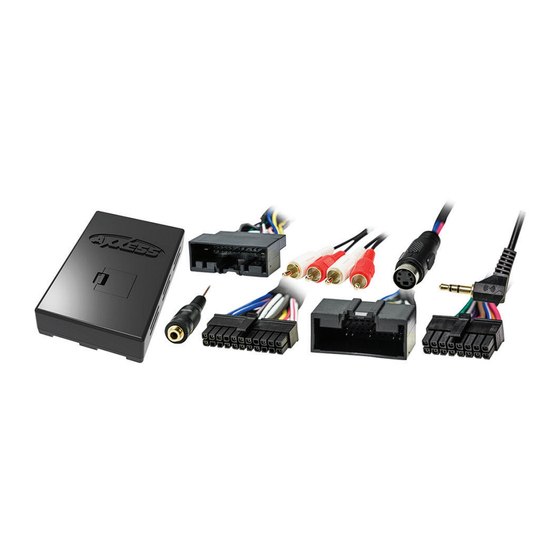

INTERFACE COMPONENTS
• AX-FD2-SWC interface
• AX-FD2-SWC harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
APPLICATIONS
FORD
Edge
2011-2014
Escape
Explorer
2011-2015
* For models without SYNC, the ASWC-1 (sold separately) will be required to retain the audio buttons on the steering wheel.
AxxessInterfaces.com
Ford Data Interface with SWC
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains SYNC
• Retains the factory AUX-IN jack
• Designed for non-amplified models
• Retains balance and fade
• Micro "B" USB updatable
F-150 (with a 4.2" screen)
2013-up
Fiesta (without MyFord Touch)
Focus (without MyFord Touch)
2013-2014
Transit Connect
2014-up
(with AM/FM/CD/SYNC radio)
2012-2014*

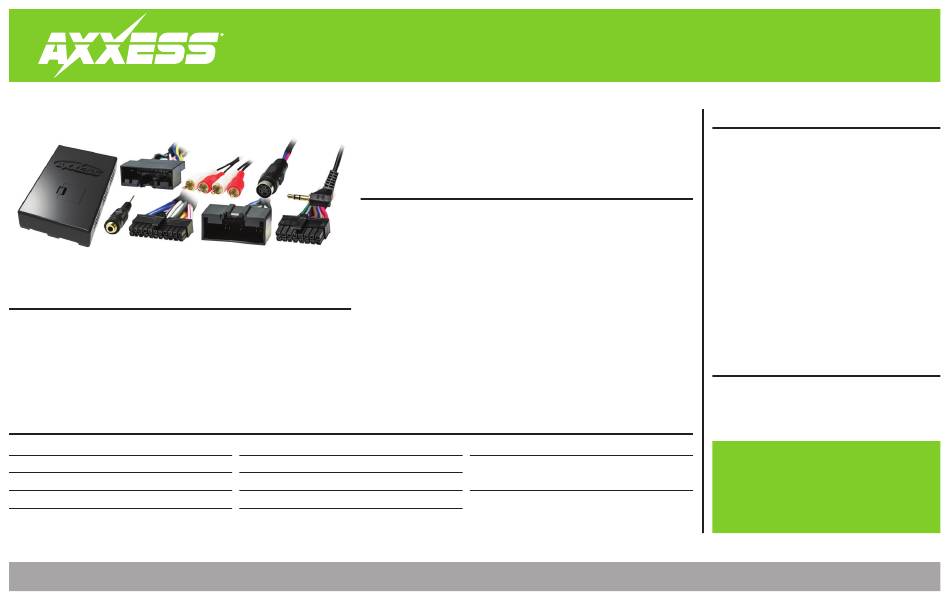

© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-FD2-SWC
I N S TA L L AT I O N I N S T R U C T I O N S
2011-up*

TABLE OF CONTENTS

Connections to be made ....................................2-3
Installing the AX-FD2-SWC ....................................3
Programming the AX-FD2-SWC ............................4
Extra features .........................................................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
Troubleshooting .....................................................8
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
controls panels, and especially air bag indicator
2014-up
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 7/18/18 INSTAX-FD2-SWC
