Axxess AX-LR90102 Installation Instructions

Axxess AX-LR90102 Installation Instructions

Land rover freelander 2 (with m.o.s.t. 25 amplifier) data interface with swc2006-2014

Advertisement

Quick Links

Land Rover Freelander 2
(with M.O.S.T. 25 amplifier)
* NAV screen will only show LR logo
INTERFACE FEATURES
• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Designed for amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)

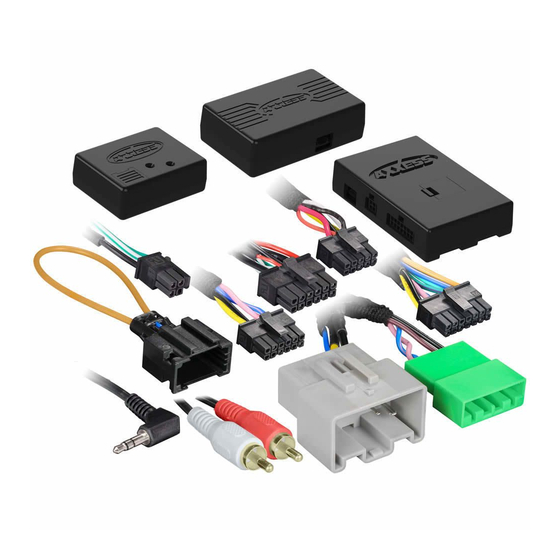

INTERFACE COMPONENTS
• AX-LR90102 interface
• AX-LR90102 amplifier interface
• AX-LR90102 chime retention interface
• ASWC-1 interface
• AX-LR90102 harness
AxxessInterfaces.com
Data Interface with SWC
2006-2014*
• Retains audio controls on the steering wheel
• Retains parking sensor chimes
• Retains balance
• Micro "B" USB updatable
• ASWC-1 harness
• Female 3.5mm connector with stripped leads
• M.O.S.T. jumper harness
• Chime speaker
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-LR90102
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
Installing the AX-LR90102 interface .....................3
Programming the ASWC-1 interface ................. 3-4
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 5/11/18 INSTAX-LR90102

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX-LR90102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axxess AX-LR90102

  • Page 1 2006-2014* (with M.O.S.T. 25 amplifier) Connections to be made ........2 * NAV screen will only show LR logo Installing the AX-LR90102 interface .....3 Programming the ASWC-1 interface ....3-4 INTERFACE FEATURES • Provides accessory power • Retains audio controls on the steering wheel •...
  • Page 2 CONNECTIONS TO BE MADE From the aftermarket radio to the AX-LR90102 harness: • Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire. • Connect the Black wire to the ground wire. • Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire to the Brown wire.
  • Page 3 ASWC-1. Refer to the L.E.D. feedback section for information. • Connect the AX-LR90102 harness to the wiring harness in the vehicle. The Green 10-pin harness will connect at the display screen. The Gray 14-pin harness will connect at the CD Drive.
  • Page 4 AX-LR90102 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT PROGRAMMING THE ASWC-1 INTERFACE (CONT.) If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH.
