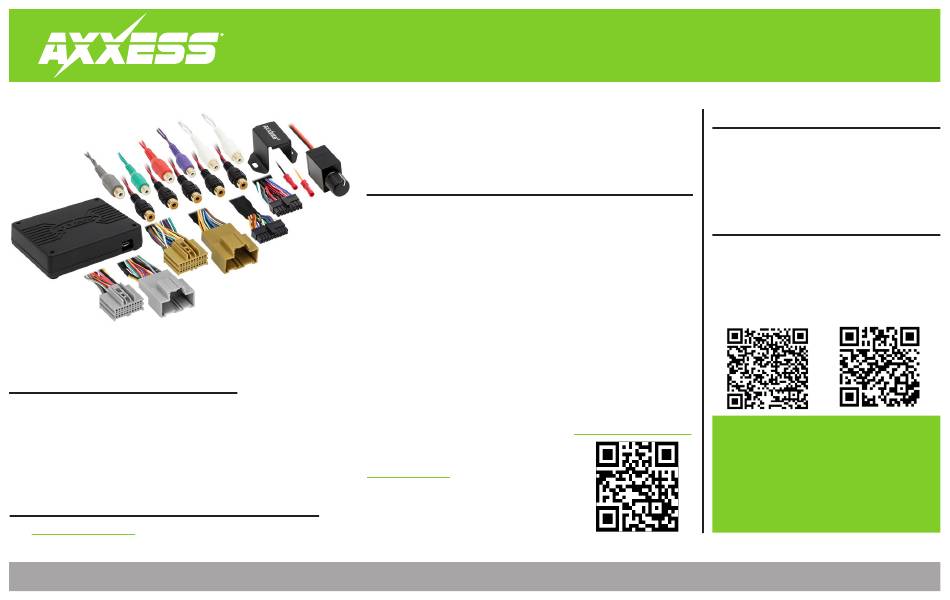

GM DSP Interface with Pre-Wired Harness
2016-2019
INTERFACE FEATURES
• Designed for non-amplified models
• Includes a DSP (Digital Signal Processor)
• Selectable 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains OnStar
voice prompts
®
(Features continued on next page)
For Dash Disassembly Instructions, refer to
metraonline.com.
Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
© COPYRIGHT 2025 METRA ELECTRONICS CORPORATION
AXDSPX-GL10
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Installation & Installation Options ........................2
Connections ........................................................ 3-4
Mobile App: Quick Setup ...................................5-6
Specifications .........................................................7
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
Google Play Store
Android 9 or higher
www.MetraOnline.com
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Apple App Store
iOS 12.1 or higher
REV. 2/26/25 INSTAXDSPX-GL10
