Silicon Laboratories Si53112 User Manual

S i 5 3 11 2 E
VAL UAT I O N
Description

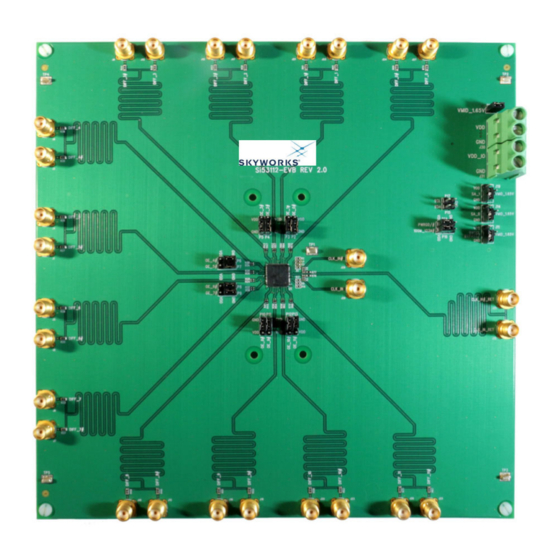

The Si53112-EVB can be used to evaluate the Si53112-
A01AGM, a 12-output PCIe Gen1/2/3 buffer that can
operate in either fanout or zero delay mode.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 17, 2021
B U '
O A R D S E R
Features
10-inch traces to evaluate signal integrity



DC pin controls per data sheet specification.

Ability to measure input to output propagation

delay.
Ability to measure PCIe clock jitter.

Ability to program features of Si53112-A01AGM

via I
Si 5 3 112 - EVB
G
S U ID E
The signal traces of the input and outputs have a
single-ended impedance of 50 ohms, and differential
impedance of 100 ohms.
The series resistance on the outputs are set to match
to this impedance design.
2
C interface.
