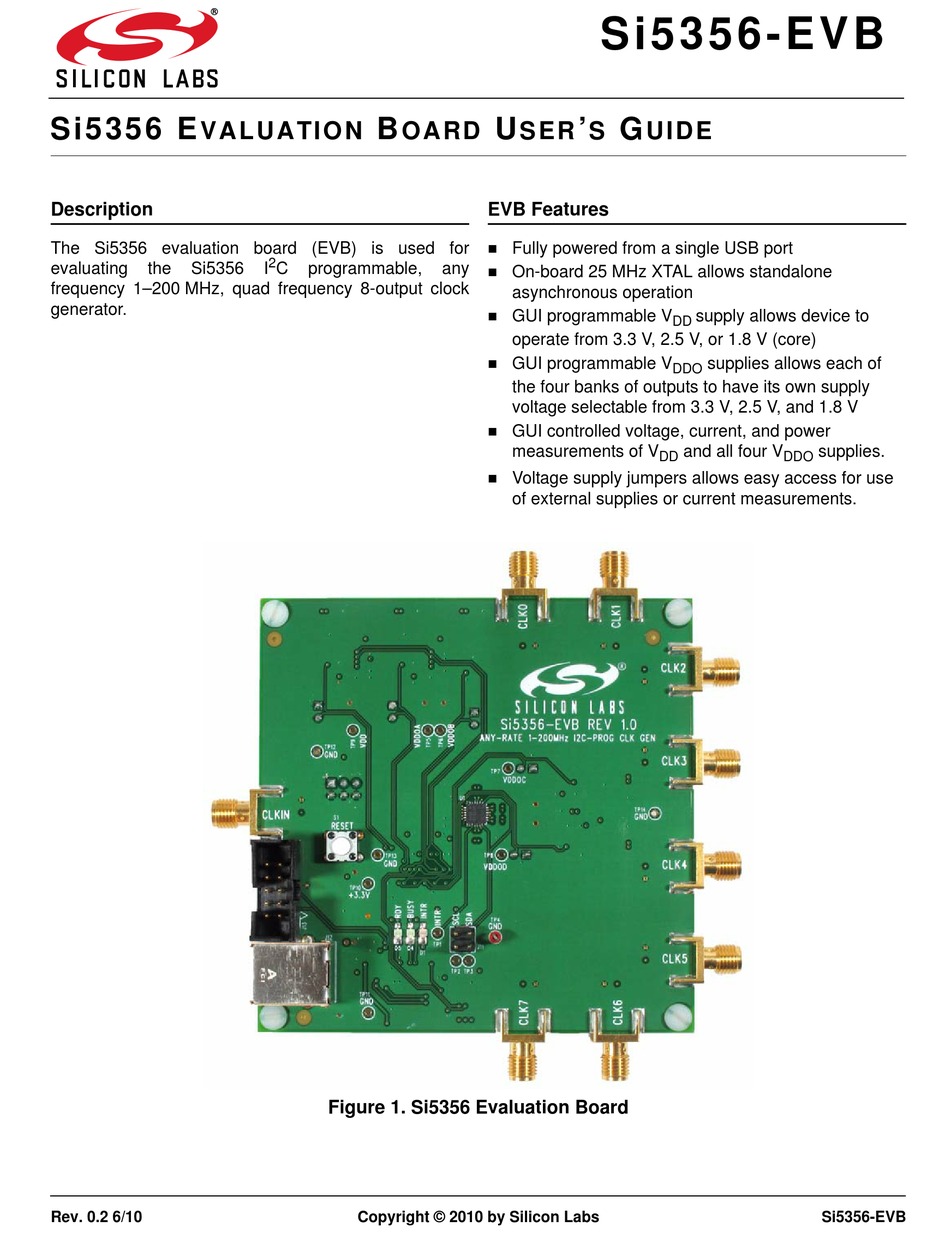

Silicon Laboratories Si5356-EVB User Manual

Si5356 E
VALUATION
Description
The Si5356 evaluation board (EVB) is used for
evaluating the Si5356
frequency 1–200 MHz, quad frequency 8-output clock
generator.
Rev. 0.2 6/10
B
OARD
2
I C programmable, any

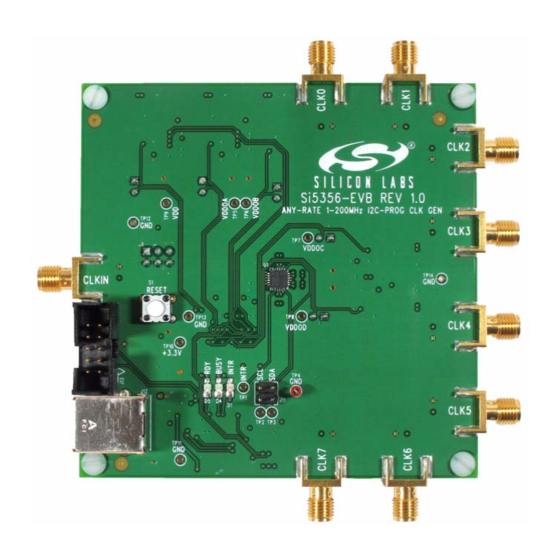

Figure 1. Si5356 Evaluation Board
Copyright © 2010 by Silicon Labs
Si 5 3 5 6 -EVB
U ' G
SER S U I D E
EVB Features
 Fully powered from a single USB port
 On-board 25 MHz XTAL allows standalone
asynchronous operation
 GUI programmable V
operate from 3.3 V, 2.5 V, or 1.8 V (core)
 GUI programmable V
the four banks of outputs to have its own supply
voltage selectable from 3.3 V, 2.5 V, and 1.8 V
 GUI controlled voltage, current, and power
measurements of V
DD
 Voltage supply jumpers allows easy access for use
of external supplies or current measurements.
supply allows device to
DD
supplies allows each of
DDO
and all four V supplies.
DDO
Si5356-EVB
