Play Action
®

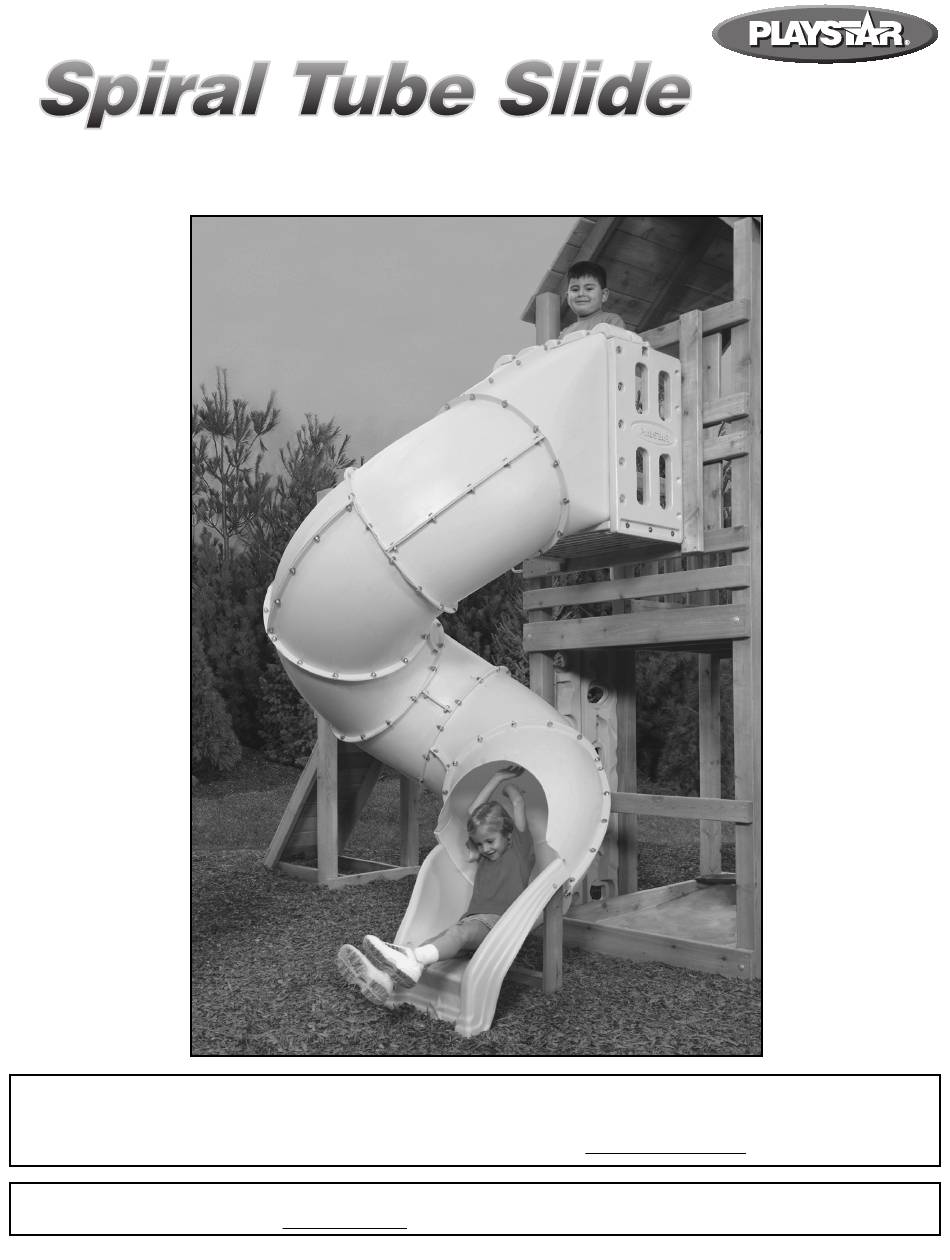

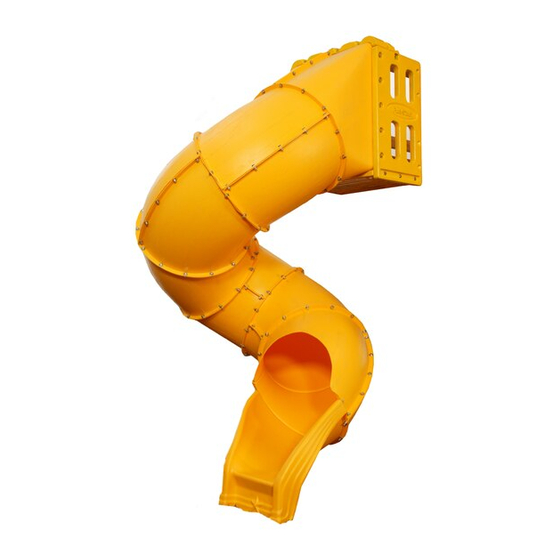

Spiral Tube Slide
Assembly Instructions
Important!
Intended for residential use by children ages 2 to 10, only on properly installed PlayStar playsets.
Before use refer to complete safety guidelines in your original playset, at www.playstarinc.com, or at 1-888-752-9782.
1-888-752-9782
Call Toll Free
We're Here To Help!
PS 8820
Customer Service: Monday - Friday, 8:00
to 5:00
C.S.T.
A.M.
P . M.
Advertisement
Related Manuals for PLAYSTAR Play Action PS 8820
Summary of Contents for PLAYSTAR Play Action PS 8820
- Page 1 Spiral Tube Slide Assembly Instructions Important! Intended for residential use by children ages 2 to 10, only on properly installed PlayStar playsets. Before use refer to complete safety guidelines in your original playset, at www.playstarinc.com, or at 1-888-752-9782. 1-888-752-9782 Call Toll Free We’re Here To Help!
-
Page 2: Tools Required
CONTENTS Spiral Tube Slide Contents and Component Identification: Top Bar Floor (11) 60º Halves (2) Side Walls Exit Top Exit Left Right Entrance Entrance Section (2) Anchors Section Support Bracket TOOLS REQUIRED Socket Wrench Tape Measure ¹⁄₈", ¹⁄₄", ³⁄₈" Drill Bits Pencil Ladder ¹⁄₂"... - Page 3 SPIRAL TUBE SLIDE ASSEMBLY Before starting to assemble your Spiral Tube Slide, familiarize yourself with the contents. Identify each component and hardware listed on Page 2. Hardware is shown actual size. Compression STEP 1: Crow’s Nest Assembly Items for Flanges (2) Side Walls Fig.
- Page 4 (18) #14 x 1¹ ₄" pan head screws Position Crow’s Nest Assembly into the playset opening. 26" (Refer to your original PlayStar Safety Guidelines and Building Instructions for complete playset construction details.) Make sure the Crow’s Nest Assembly is fully inserted, and all three flanges are firmly resting against the lumber.
- Page 5 STEP 4: Items for Entrance Assembly (1) Left Entrance Section (1) Right Entrance Section (6) ⁵ ₁₆" x ³ ₄" hex bolts (12) ⁵ ₁₆" washers (6) ⁵ ₁₆" lock nuts Attach the two entrance sections using ⁵ ₁₆" x ³ ₄" hex bolts, ⁵ ₁₆" washers and ⁵...
-
Page 6: Exit Assembly
60º Exit Assembly STEP 6: Items for (1) 60° half (1) Exit Top (7) ⁵ ₁₆" x ³ ₄" hex bolts (14) ⁵ ₁₆" washers (7) ⁵ ₁₆" lock nuts Attach 60° half to the exit top using ⁵ ₁₆" x ³ ₄" hex bolts, ⁵ ₁₆" washers and ⁵... - Page 7 STEP 8: Attach 60º Tunnel Assembly using ⁵ ₁₆" x ³ ₄" hex Items for bolts, ⁵ ₁₆" washers and ⁵ ₁₆" lock nuts as shown. (4) 60º Tunnel Assemblies Finger tighten only at this time. (56) ⁵ ₁₆" x ³ ₄" hex bolts Note: The long flange on the 60º...
- Page 8 STEP 10: Items for (1) Exit (8) ⁵ ₁₆" x ³ ₄" hex bolts (16) ⁵ ₁₆" washers (8) ⁵ ₁₆" lock nuts Attach the Exit using ⁵ ₁₆" x ³ ₄" hex bolts, ⁵ ₁₆" washers and ⁵ ₁₆" lock nuts as shown. Finger tighten only at this time.
- Page 9 STEP 11: Items for (8) ⁵ ₁₆" x ³ ₄" stove bolts (8) ⁵ ₁₆" washers (8) ⁵ ₁₆" lock nuts Lift the assembly to the upright position and insert the entrance end into the Crow’s Nest Assembly. This requires two adults. Attach at top and bottom using ⁵...
- Page 10 Tighten firmly but do not over tighten. STEP 13: Note: The lumber referred to on this section Items for has been included in your PlayStar (2) 2" x 4" x 24¹ ₄" boards Playset lumber requirements. Refer to (4) #8 x 2¹ ₂" deck screws...
- Page 11 STEP 14: Items for (1) Step 13 Assembly (2) 2" x 4" x 21¹ ₄" boards (8) #8 x 2¹ ₂" deck screws Lay the Step 13 Assembly on the ground under the slide exit as shown. Insert one 2" x 4" x 21¹ ₄" into each of the exit pockets as shown.
- Page 12 STEP 15: Items for (4) #14 x 1¹ ₄" pan head screws Make sure the 2" x 4" x 21¹ ₄" boards are vertical and the exit pockets are firmly resting on top of them. Mark holes with a pencil. Drill ¹...
- Page 13 STEP 16: Items for (2) Anchors (2) ³ ₈" x 2" lag screws (2) ³ ₈" washers Make sure the exit is level and making firm contact with the ground. Note: If the exit is not making contact with the ground, it will be necessary to remove earth under the lumber support until exit firmly contacts the ground.
- Page 14 STEP 17: Items for (1) Support Bracket (1) ³ ₈" x 2" hex bolt (1) ⁵ ₁₆" x 1" hex bolt (1) ³ ₈" washer (1) ³ ₈" lock nut Locate the second bolt from the bottom on the 60º Tunnel Assembly as shown.
- Page 15 Expand your Playset with the Water Slide Kit (PS 8840) Add the Water Slide Kit to extend sliding surface. May be used wet or dry. Kit includes: Water Slide, Water Cannon and Water Slide Stakes Water Cannon ® Water Slide (7 foot extension) Water Slide Stakes...
- Page 16 PlayStar, Incorporated, Janesville, WI 53547 © 2006 PlayStar, Inc. Reproduction of this document in part or whole is prohibited without the permission of PlayStar, Inc. Protected by one or more of the following United States or Foreign Patents: US D573,222; US D580,507 CA D119,674 LT 6419 R4 Printed in U.S.A.
