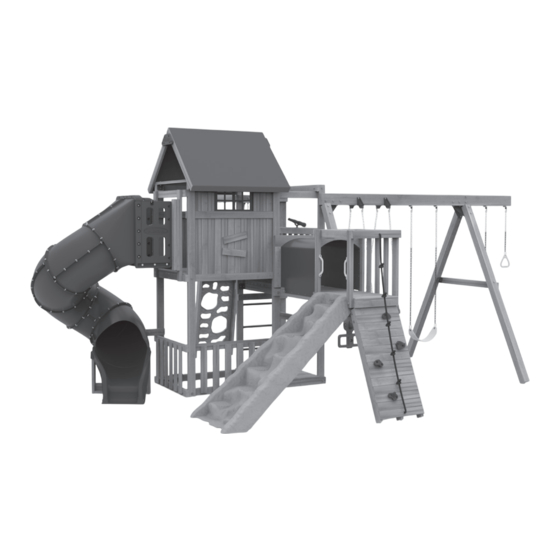

PLAYSTAR Summit PS 73661 Safety Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Guide de sécurité et Instructions de montage
Directrices de Seguridad e Instrucciones de Construcción
PS 73661
PS 73662
We Will Gladly Help! • ¡Le Ayudaremos Con Mucho Gusto! • C'est avec joie que nous vous aiderons!
1-888-PLAYSTAR
( 75 2- 978 2)
(450) 699-3083
Safety Guide & Assembly Instructions
Safety Zone
Monday through Friday, 8:00 A.M. to 5:00 P.M. C.S.T.
De Lunes a Viernes de 8:00 A.M. a 5:00 P.M. C.S.T.
Du lundi au vendredi, de 8 h à 16 h EST
Safety Zone
PS 73663
www.playstarinc.com
TM
Safety Zone

Advertisement

loading
Need help?

Need help?

Do you have a question about the Summit PS 73661 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PLAYSTAR Summit PS 73661

Summary of Contents for PLAYSTAR Summit PS 73661

  • Page 1 Safety Zone PS 73663 PS 73662 We Will Gladly Help! • ¡Le Ayudaremos Con Mucho Gusto! • C’est avec joie que nous vous aiderons! 1-888-PLAYSTAR Monday through Friday, 8:00 A.M. to 5:00 P.M. C.S.T. www.playstarinc.com ( 75 2- 978 2) De Lunes a Viernes de 8:00 A.M.
  • Page 2 • Thoroughly read all safety instructions before Testing and Materials (ASTM) Home Playground beginning. Safety Standard. In order for PlayStar to comply with the ASTM Standard, we cannot recommend • Children must remain clear of construction site until anyone above these limits.

  • Page 3: Annual Maintenance Checklist

    SAFETY INSTALLATION: seat or single planned activity should The chains or ropes provided are the be allowed on this set at one time, with maximum length designed for the swinging 1. Follow the instructions provided, do not a maximum weight of 105 pounds for element(s).
  • Page 4 PS 73661 FC 3230 Playset Anchor FC 3217 Tarp FC 3230 FC 3217 FC 3084 LT 7000 FP 2054 Sunlight FP 2054 Window (1) FC 3084 Sturdy-Frame Brace FC 3087 FC 3 FC 3210 SA 4496 FC 3 Climbing Rope FC 3210 Discove SA 4496...
  • Page 5 FC 3519 2" x 4" x 31Z/x" 2" x 4" x 31¹ ₂" 1/16" = 1" FC 3534 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1"...
  • Page 6 PS 73662 FC 3230 Playset Anchor Tarp FC 3230 FC 3217 FC 3084 FC 3217 FP 2054 LT 7000 FP 2054 FC 3087 Sturdy-Frame Brace Sunlight Window (1) FC 3084 FC 3210 SA 4496 Climbing Rope FC 3210 Disco Teles SA 4496 FC 3087...
  • Page 7 FC 3519 2" x 4" x 31Z/x" 2" x 4" x 31¹ ₂" 1/16" = 1" FC 3534 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1"...
  • Page 8 PS 73663 FC 3230 Playset Anchor FC 3217 Tarp FC 3230 FC 3217 FC 3084 LT 7000 FP 2054 FC 3087 FC 3 Sunlight FP 2054 Window (1) FC 3084 Sturdy-Frame Brace FC 3210 FC 3 SA 4496 Climbing Rope FC 3210 Discove Telescop...
  • Page 9 FC 3519 2" x 4" x 31Z/x" 2" x 4" x 31¹ ₂" 1/16" = 1" FC 3534 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1"...
  • Page 10 All Design Options ³ ₈" x 1" hex bolt HW 1219 HW 1212 #14 x 1Z/v" C/," x 1Z/x" #14 x 1¹ ₄" HW 1219 SCREW LAG HDG 3/8 X 1 1/2 pan head screw HW 1219 SCREW LAG HDG 3/8 X 1 1/2 ³...
  • Page 11 Assembly Process Icon Glossary Place tower or component in desired location. Drill through board at correct location with countersink tool and bit size shown. Drill down the depth shown into board at correct locations using bit size shown. Note: You may use any bracket as a drill template. Mark board with measurement shown for location on this step.
  • Page 12 Safety Warning Glossary CAUTION: Minimum spacing is required from the CAUTION: These boards should be pre-drilled closest point of all other rides or stationary objects. and countersunk to avoid cracking. Note: Adjust countersink tool to width of first board to countersink to proper depth.

  • Page 13: Helpful Hints

    Helpful Hints Make sure boards remain square. Note: Assembly process should take place on flat surface. This helps with assembly process. Do not..._______. Be sure boards are flush. Be sure boards/brackets are tight against each other. Be sure boards/components are spaced the distance listed. Be sure to equally space.
  • Page 14 Roof- All Design Options HW 1213 (4) #8 x 1Z/v" #8 x 1¹ ₄" deck screw 6Z/x" 6Z/x" 1B/," 1B/," Leave screw sticking out Z/x" for use in attaching roof at a later step.
  • Page 15 HW 1204 (12) #8 x 2Z/x" #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 FC 3534 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1"...
  • Page 16 HW 1212 #14 x 1Z/v" FC 3230 #14 x 1¹ ₄" EW LAG HDG 3/8 X 1 1/2 pan head screw Tarp FC 3230 1C/,"...
  • Page 17 HW 1204 #8 x 2Z/x" #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 Rest screw on board. Be sure roof is level with equal overhang on all four corners.
  • Page 18 Swing Beam- All Design Options HW 1527 C/," x 3Z/x" HW 1527 BOLT HEX HDG 3/8-16 X 3 1/2 ³ ₈" x 3¹ ₂" hex bolt HW 1301 HW 1411 ³ ₈" lock nut FP 2054 (8) C/," (4) C/," FP 2054 ³...
  • Page 19 HW 1301 HW 1411 (2) C/," C/," ³ ₈" lock nut ³ ₈" washer HW 1527 C/," x 3Z/x" HW 1527 BOLT HEX HDG 3/8-16 X 3 1/2 ³ ₈" x 3¹ ₂" hex bolt...
  • Page 20 HW 1301 HW 1411 (2) C/," C/," ³ ₈" lock nut ³ ₈" washer HW 1526 C/," x 5" ³⁄₈" x 5" Hex Bolt HW 1526 BOLT HEX HDG 3/8-16 X 5 1C/v" 88Z/v"...
  • Page 21 HW 1527 C/," x 3Z/x" HW 1527 BOLT HEX HDG 3/8-16 X 3 1/2 ³ ₈" x 3¹ ₂" hex bolt HW 1301 HW 1411 ³ ₈" lock nut (4) C/," (2) C/," ³ ₈" washer...
  • Page 22 #8 x 2Z/x" HW 1204 #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 FC 3519 2" x 4" x 31Z/x" 2" x 4" x 31¹ ₂" 1/16" = 1" 35C/v"...
  • Page 23 #8 x 1Z/v" SA 4496 HW 1213 #8 x 1¹ ₄" deck screw SA 4496 HW 1528 (8) C/," (3) C/," x 2" HW 1301 HW 1528 BOLT HEX HDG 3/8-16 X 2 HW 1527 ³ ₈" washer HW 1411 ³...
  • Page 24 (Bronze & Silver- Adventure Tunnel Kit- Gold Only Skip to Page 27) HW 1528 C/," x 2" HW 1528 BOLT HEX HDG 3/8-16 X 2 HW 1301 HW 1411 ³ ₈" lock nut (8) C/," (4) C/," ³ ₈" washer...
  • Page 25 #8 x 2Z/x" HW 1204 #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 Center Tunnel Assembly on tower opening.
  • Page 26 HW 1223 (36) #8 x B/," #8 x ⁵ ₈" truss head screw Start attaching with the center hole.
  • Page 27 Rock Wall- Bronze & Silver Only (Gold, Skip to Page 30) #8 x 1Z/v" HW 1213 #8 x 1¹ ₄" deck screw HW 1528 HW 1301 HW 1411 C/," x 2" (4) C/," C/," HW 1528 BOLT HEX HDG 3/8-16 X 2 ³...
  • Page 28 (Silver & Gold- Monkey Rings- Bronze Only Skip to Page 30) HW 1213 #8 x 1Z/v" #8 x 1¹ ₄" deck screw 92C/v" 2Z/x" Dig into ground for leg beams.
  • Page 29 HW 1301 HW 1411 ³ ₈" lock nut (4) C/," (2) C/," C/," x 2" HW 1528 HW 1528 BOLT HEX HDG 3/8-16 X 2 ³ ₈" washer...
  • Page 30 Monkey Rings- Silver & Gold (Bronze-Skip to Page 33) #8 x 2Z/x" HW 1204 #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 91Z/x" Dig into ground for leg beams. 3Z/x"...
  • Page 31 HW 1213 #8 x 1Z/v" SA 4496 #8 x 1¹ ₄" deck screw SA 4496...
  • Page 32 C/," x 2" HW 1528 HW 1528 BOLT HEX HDG 3/8-16 X 2 HW 1301 HW 1411 ³ ₈" lock nut (4) C/," (2) C/," ³ ₈" washer ³ ₈" x 1" hex bolt HW 1219 HW 1301 (2) C/," C/,"...
  • Page 33 Anchoring- Bronze Only ³ ₈" x 1" hex bolt HW 1219 Playset Anchor C/," x 1Z/x" FC 3217 ³ ₈" x 3" lag screw HW 1219 SCREW LAG HDG 3/8 X 1 1/2 HW 1301 (6) C/," FC 3217 ³ ₈" washer...
  • Page 34 Anchoring- Silver Only ³ ₈" x 1" hex bolt HW 1219 Playset Anchor C/," x 1Z/x" FC 3217 HW 1219 SCREW LAG HDG 3/8 X 1 1/2 ³ ₈" x 3" lag screw HW 1301 (6) C/," FC 3217 ³ ₈" washer...
  • Page 35 Anchoring- Gold Only ³ ₈" x 1" hex bolt HW 1219 Playset Anchor (7) C/," x 1Z/x" ³ ₈" x 3" lag screw HW 1219 SCREW LAG HDG 3/8 X 1 1/2 FC 3217 Anchor is used with PS 8850 Climbing Wall HW 1301 (7) C/,"...
  • Page 36 Window Attachment HW 1223 (16) #8 x B/," #8 x ⁵ ₈" truss head screw FC 3084 Fold top and bottom along Cut a Z/v" gap before the scored lines as two end tabs. shown. Z/v" Safety Plaque HW 1223 #8 x B/,"...
  • Page 37 Telescope FC 3128 FC 3129 HW 1204 #8 x 2Z/x" #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 Rope FC 3210 HW 1604 Rope must be tight and secured at both ends.
  • Page 38 Slide HW 1212 (3) #14 x 1Z/v" #14 x 1¹ ₄" HW 1219 SCREW LAG HDG 3/8 X 1 1/2 pan head screw Playset Anchor FC 3217 FC 3217 HW 1536 C/," x 1Z/v" 1" ³ ₈" x 1¹ ₄" hex bolt (1) HW 1301 HW 1411...
  • Page 39 Climbing Wall Spiral Tube Slide PS 8823 PS 8850 Attach using hardware & Attach using hardware & installation instructions installation instructions included with PS 8823. included with PS 8850. Magnetic Chalkboard HW 1223 #8 x B/," #8 x ⁵ ₈" truss head screw...
  • Page 40 PlayStar, Incorporated, Janesville, WI 53547 © 2019 PlayStar, Inc. Reproduction of this document in part or whole is prohibited without the permission of PlayStar, Inc. Reproduction of this document in part or whole is prohibited without the permission of PlayStar, Inc.

This manual is also suitable for:

Summit ps 73663Summit ps 73662
