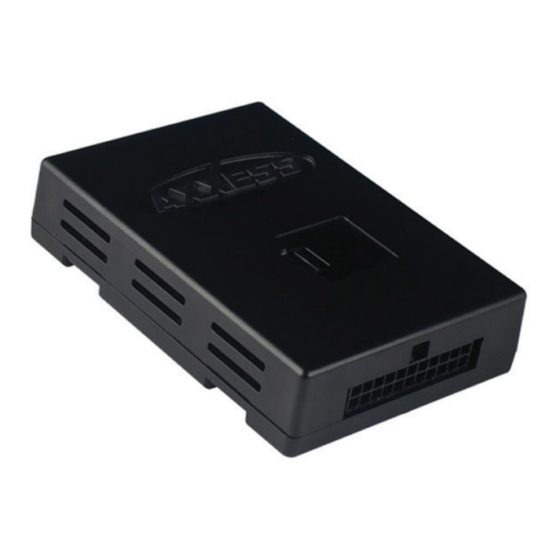

Main interface control box

Advertisement

Available languages

Available languages

Quick Links

INTERFACE FEATURES
Note: This is a general list for the AXADBX-1 lineup. Please reference the individual harnesses for exact features available.
• Provides accessory power (12-volt 10-amp)
• Maintains the retained accessory power (R.A.P.) feature
• Can be used in non-amplified, or analog/digital amplified models
• Retains warning chimes (GM)
• Retains the turn signal click (GM)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains OnStar/OE Bluetooth
† Excluding Ford and VW vehicles with digital amps
AxxessInterfaces.com
ADBX Series - Main Interface Control Box
INTRODUCTION
The AXADBX-1 main interface control box is designed for, and must be
used along with, the appropriate vehicle wiring harness (sold separately).
• Adjustable gain control for overall volume digital amplified models
• Adjustable gain control for chimes and OnStar (GM)
• Retains SYNC in Ford vehicles
• Adjustable gain control for SYNC (Ford)
• Retains Blind spot detection system in Chrysler/Dodge/Jeep (if equipped)
• Retains balance and fade†
• Retains digital fade†
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AXADBX-1
I N S TA L L AT I O N I N S T R U C T I O N S
INTERFACE COMPONENTS
• AXADBX-1 interface
• 16-pin harness with stripped leads
APPLICATIONS
See application list on page 2
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 1/30/20 INSTAXADBX-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADBX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Axxess ADBX Series

  • Page 1 AXADBX-1 I N S TA L L AT I O N I N S T R U C T I O N S ADBX Series - Main Interface Control Box INTERFACE COMPONENTS • AXADBX-1 interface • 16-pin harness with stripped leads INTRODUCTION The AXADBX-1 main interface control box is designed for, and must be used along with, the appropriate vehicle wiring harness (sold separately). APPLICATIONS See application list on page 2 INTERFACE FEATURES Note: This is a general list for the AXADBX-1 lineup.
  • Page 2 APPLICATIONS The AXADBX-1 must be used along with the wiring harness listed for the vehicle in the following table. Refer to the instruction manual provided with the wiring harness for connections to the 16-pin harness which is included with the AXADBX-1. BUICK CHEVROLET CHEVROLET (Cont) Century 2004-2005 AXADBXH-GM3 Avalanche 2003-2006 AXADBXH-GM3 Monte Carlo 2000-2005 AXADBXH-GM3 Enclave 2008-2017 AXADBXH-GM1 Avalanche 2007-2011 AXADBXH-GM1 Monte Carlo 2006-2007 AXADBXH-GM1 LaCrosse 2005-2009 AXADBXH-GM3 Avalanche (w/o NAV) 2012-2013 AXADBXH-GM1 Silverado 2003-2006 AXADBXH-GM3 Lucerne 2006-2011 AXADBXH-GM1 Avalanche (with NAV) 2012-2013 AXADBXH-GM4 Silverado 2007-2011 AXADBXH-GM1 Rainier...
  • Page 3 APPLICATIONS (CONT) CHRYSLER DODGE (Cont) 200 2011-2014 AXADBXH-CH2 Ram 1500 2009-2011 AXADBXH-CH2 Acadia 2007-2016 AXADBXH-GM1 200 (LX trim) 2015-2016 AXADBXH-CH3 Ram 2500/3500 2006-2009 AXADBXH-CH1 Acadia Limited 2017 AXADBXH-FD2 300 2005-2007 AXADBXH-CH1 Ram 2500/3500 2010-2011 AXADBXH-CH2 Envoy 2002-2006 AXADBXH-GM3 300 2008-2010 AXADBXH-CH2 Ram Chassis Cab 2006-2010 AXADBXH-CH1 Envoy 2007-2009 AXADBXH-GM3 Aspen 2007 AXADBXH-CH1 Ram Chassis Cab...
  • Page 4 APPLICATIONS (CONT) HUMMER LEXUS OLDSMOBILE 2003-2007 AXADBXH-GM3 ES330 (with multi disc changer) 2002-2006 AXADBXH-TY1 Alero 2001-2004 AXADBXH-GM3 2008-2009 AXADBXH-GM1 GS300 2001-2005 AXADBXH-TY1 Bravada 2002-2004 AXADBXH-GM3 2006-2010 AXADBXH-GM3 GS430 2001-2005 AXADBXH-TY1 Intrigue 2002 AXADBXH-GM3 H3t 2006-2010 AXADBXH-GM3 IS300 2002-2005 AXADBXH-TY1 Silhouette 2000-2004 AXADBXH-GM3 LS430 2001-2006 AXADBXH-TY1 ISUZU PONTIAC RX330...
  • Page 5 APPLICATIONS (CONT) SAAB TOYOTA VOLKSWAGEN (amplified models only) (Cont) (Cont) 9-7x 2005-2009 AXADBXH-GM3 Sequoia (w/o NAV) 2013 AXADBXH-TY1 Rabbit 2007-2009 AXADBXH-VW1 Sienna 2004-2014 AXADBXH-TY1 Routan 2009-2013 AXADBXH-CH2 SATURN Solara 2004-2008 AXADBXH-TY1 Tiguan 2009-2015 AXADBXH-VW1 Aura 2006-2009 AXADBXH-GM2 Tacoma 2005-2013 AXADBXH-TY1 Outlook 2007-2010 AXADBXH-GM1 Tundra 2004-2013 AXADBXH-TY1 Relay 2005-2009 AXADBXH-GM3...
  • Page 7 REV. 1/30/2020 INSTAXADBX-1...
  • Page 8 AXADBX-1 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
  • Page 9 AXADBX-1 I N S T R U C C I O N E S D E I N S TA L AC I Ó N ADBX serie - COMPONENTES DE LA INTERFASE • Interfase AXADBX-1 Caja de controlde interfase principal • Arnés de 16 pins con conectores pelados INTRODUCCIÓN La caja de control de la interfaz principal AXADBX-1 está diseñada para, y APLICACIONES debe usarse junto con, el arnés de cableado apropiado del vehículo (se...
  • Page 10 APLICACIONES El AXADBX-1 se debe utilizar junto con el arnés de cableado enumerado para el vehículo en la siguiente tabla. Consulte el manual de instrucciones proporcionado con el arnés de cableado para las conexiones al arnés de 16 patas que se incluye con el AXADBX-1. BUICK CHEVROLET CHEVROLET (Cont) Century 2004-2005 AXADBXH-GM3 Avalanche 2003-2006 AXADBXH-GM3 Monte Carlo 2000-2005 AXADBXH-GM3 Enclave 2008-2017 AXADBXH-GM1 Avalanche 2007-2011 AXADBXH-GM1 Monte Carlo 2006-2007 AXADBXH-GM1 LaCrosse 2005-2009 AXADBXH-GM3 Avalanche (sin NAV) 2012-2013 AXADBXH-GM1 Silverado 2003-2006 AXADBXH-GM3 Lucerne 2006-2011 AXADBXH-GM1 Avalanche (con NAV) 2012-2013 AXADBXH-GM4 Silverado 2007-2011 AXADBXH-GM1 Rainier...
  • Page 11 APLICACIONES (CONT) CHRYSLER DODGE (Cont) 200 2011-2014 AXADBXH-CH2 Ram 1500 2009-2011 AXADBXH-CH2 Acadia 2007-2016 AXADBXH-GM1 200 (LX trim) 2015-2016 AXADBXH-CH3 Ram 2500/3500 2006-2009 AXADBXH-CH1 Acadia Limited 2017 AXADBXH-FD2 300 2005-2007 AXADBXH-CH1 Ram 2500/3500 2010-2011 AXADBXH-CH2 Envoy 2002-2006 AXADBXH-GM3 300 2008-2010 AXADBXH-CH2 Ram Chassis Cab 2006-2010 AXADBXH-CH1 Envoy 2007-2009 AXADBXH-GM3 Aspen 2007 AXADBXH-CH1 Ram Chassis Cab...
  • Page 12 APLICACIONES (CONT) HUMMER LEXUS OLDSMOBILE 2003-2007 AXADBXH-GM3 ES330 (con disco múltiple) 2002-2006 AXADBXH-TY1 Alero 2001-2004 AXADBXH-GM3 2008-2009 AXADBXH-GM1 GS300 2001-2005 AXADBXH-TY1 Bravada 2002-2004 AXADBXH-GM3 2006-2010 AXADBXH-GM3 GS430 2001-2005 AXADBXH-TY1 Intrigue 2002 AXADBXH-GM3 H3t 2006-2010 AXADBXH-GM3 IS300 2002-2005 AXADBXH-TY1 Silhouette 2000-2004 AXADBXH-GM3 LS430 2001-2006 AXADBXH-TY1 ISUZU PONTIAC RX330...
  • Page 13 APLICACIONES (CONT) SAAB TOYOTA VOLKSWAGEN (solo modelos amplificados) (Cont) (Cont) 9-7x 2005-2009 AXADBXH-GM3 Sequoia (sin NAV) 2013 AXADBXH-TY1 Rabbit 2007-2009 AXADBXH-VW1 Sienna 2004-2014 AXADBXH-TY1 Routan 2009-2013 AXADBXH-CH2 SATURN Solara 2004-2008 AXADBXH-TY1 Tiguan 2009-2015 AXADBXH-VW1 Aura 2006-2009 AXADBXH-GM2 Tacoma 2005-2013 AXADBXH-TY1 Outlook 2007-2010 AXADBXH-GM1 Tundra 2004-2013 AXADBXH-TY1 Relay 2005-2009 AXADBXH-GM3...
  • Page 15 REV. 1/30/2020 INSTAXADBX-1...
  • Page 16 AXADBX-1 I N S T R U C C I O N E S D E I N S TA L AC I Ó N IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
