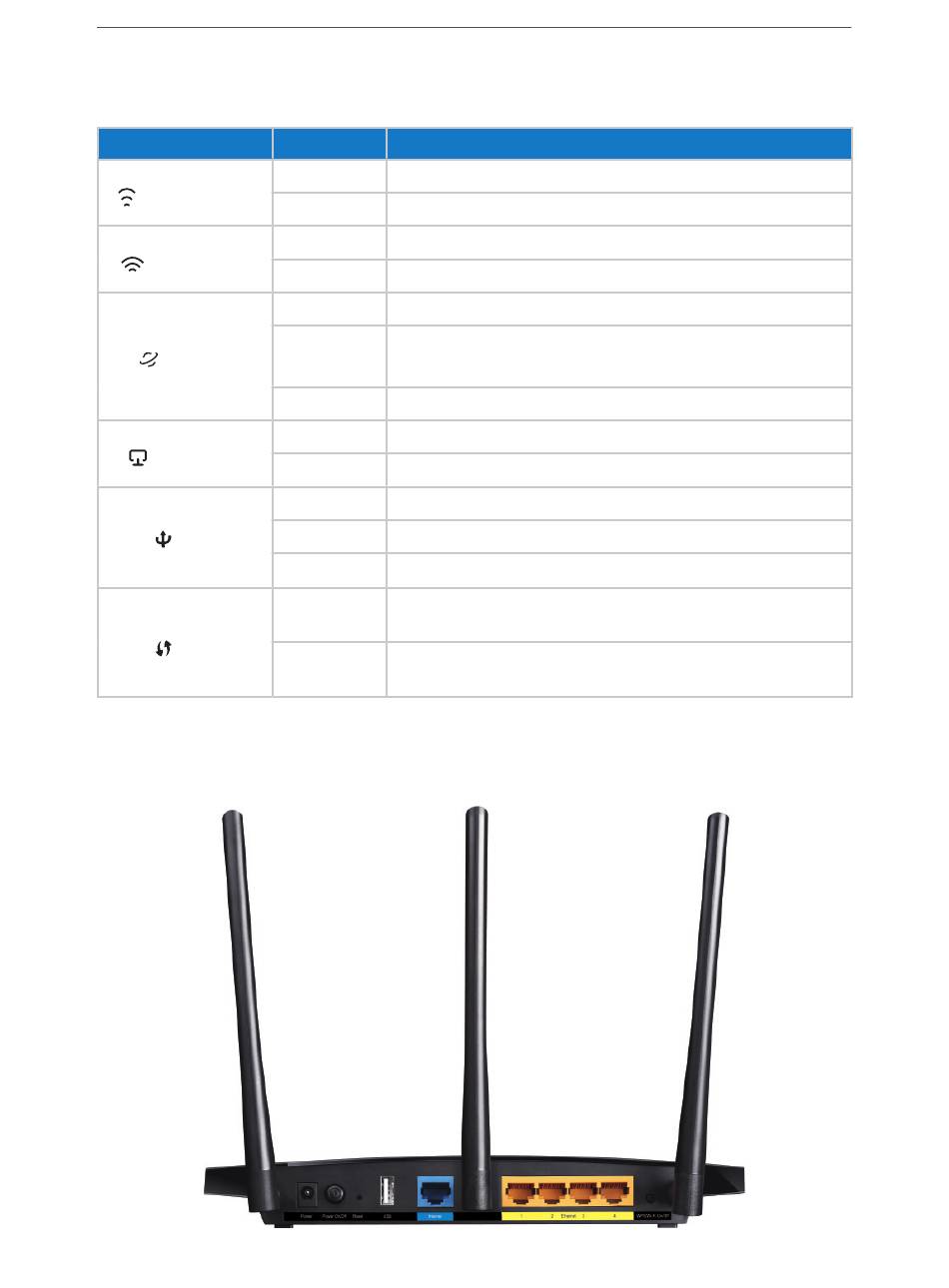

The Back Panel - TP-Link ARCHER C1200 User Manual

Chapter 1
LED Explanation
Name
(2.4GHz Wireless)
(5GHz Wireless)
(Internet)
(Ethernet 1-4)
(USB)
(WPS)
1. 2. 2.

The Back Panel

Status
On The 2.4GHz wireless band is working properly.
Off The 2.4GHz wireless band is disabled.
On The 5GHz wireless band is working properly.
Off The 5GHz wireless band is disabled.
Green On Internet is available.
The router's Internet port is connected, but the Internet
Orange On
is not available.
Off The router's Internet port is not connected.
On The corresponding Ethernet port is connected.
Off The corresponding Ethernet port is not connected.
On A USB device is connected to the router.
Flashing A USB device is connecting to the router.
Off
No USB device is connected.
Turns on when a WPS connection is established, and goes off about
On/Off
5 minutes later.
A wireless device is trying to connect to the network via WPS. This
Flashing
process may take up to 2 minutes.
Get to Know About Your Router
Indication
4
