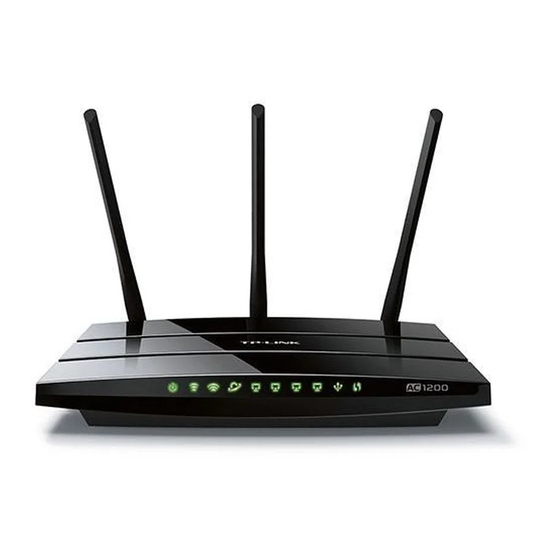

TP-Link Archer C1200 Quick Installation Manual

Quick Installation Guide
AC1200 Wireless Dual Band Gigabit Router
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, and then follow Step 4 and 5 to
complete the hardware connection.
Internet
Power adapter
1
2
Modem
3
Power adapter
Router
Turn off the modem, and remove
the backup battery if it has one.
Connect the modem to the Internet
port on your router with an Ethernet cable.
5
Verify that the following LEDs are on
and solid before continuing with the
Turn on the modem, and then
configuration.
wait about 2 minutes for it to restart.
Power
On
Note: If the 2.4G LED
press the WPS/Wi-Fi On/Off button for 2 seconds and
check the LEDs again in a few seconds later.
Internet
2.4G 5G
On
On On
and 5G LED are off, please
4
Turn on the router.
For optimum performance,
orient the antennas as
shown in the drawing.
