Installation/Owner's Manual
Use this manual for circuit board 4405-018 Revision A or higher.
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator
will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
UL 325 August 2018 Standard
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.
Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.
Date Installed:
Installer/Company Name:
Phone Number:
Leave Manual with Owner
Conforms To UL STD 325
Certified To CSA STD C22.2 # 247

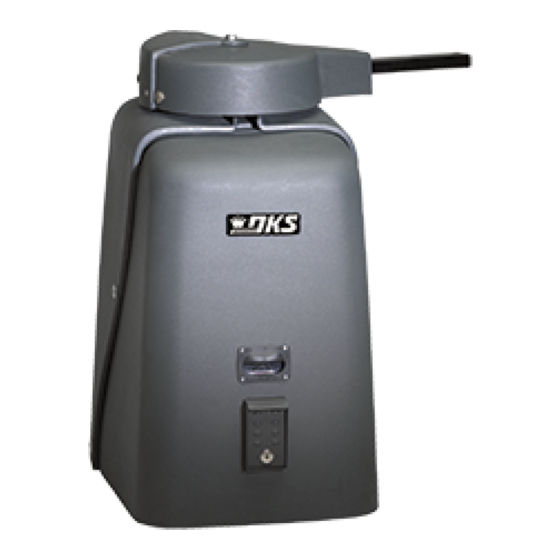

Vehicular Swing Gate Operator
Circuit Board
Serial Number
and Revision Letter:
®
Copyright 2019 DoorKing
, Inc. All rights reserved.
Series 6500
Series 6500
Series 6500
6500-065-K-1-19
Copyright 2009 DoorKing, Inc. All rights reserved.
