DKS 6050 Series Owner's Manual

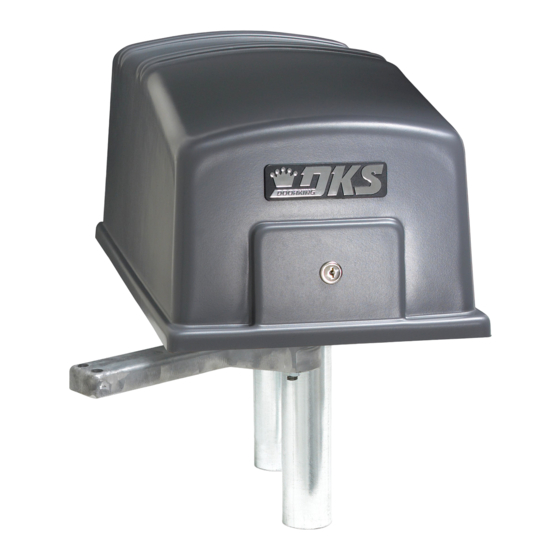

Vehicular gate operator
Hide thumbs Also See for 6050 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation & Owner's Manual
Owner's Manual
Series 6050 and 6100
Series 6050 and 6100
Vehicular Swing Gate Operator
Copyright 2008 DoorKing, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6050 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DKS 6050 Series

Summary of Contents for DKS 6050 Series

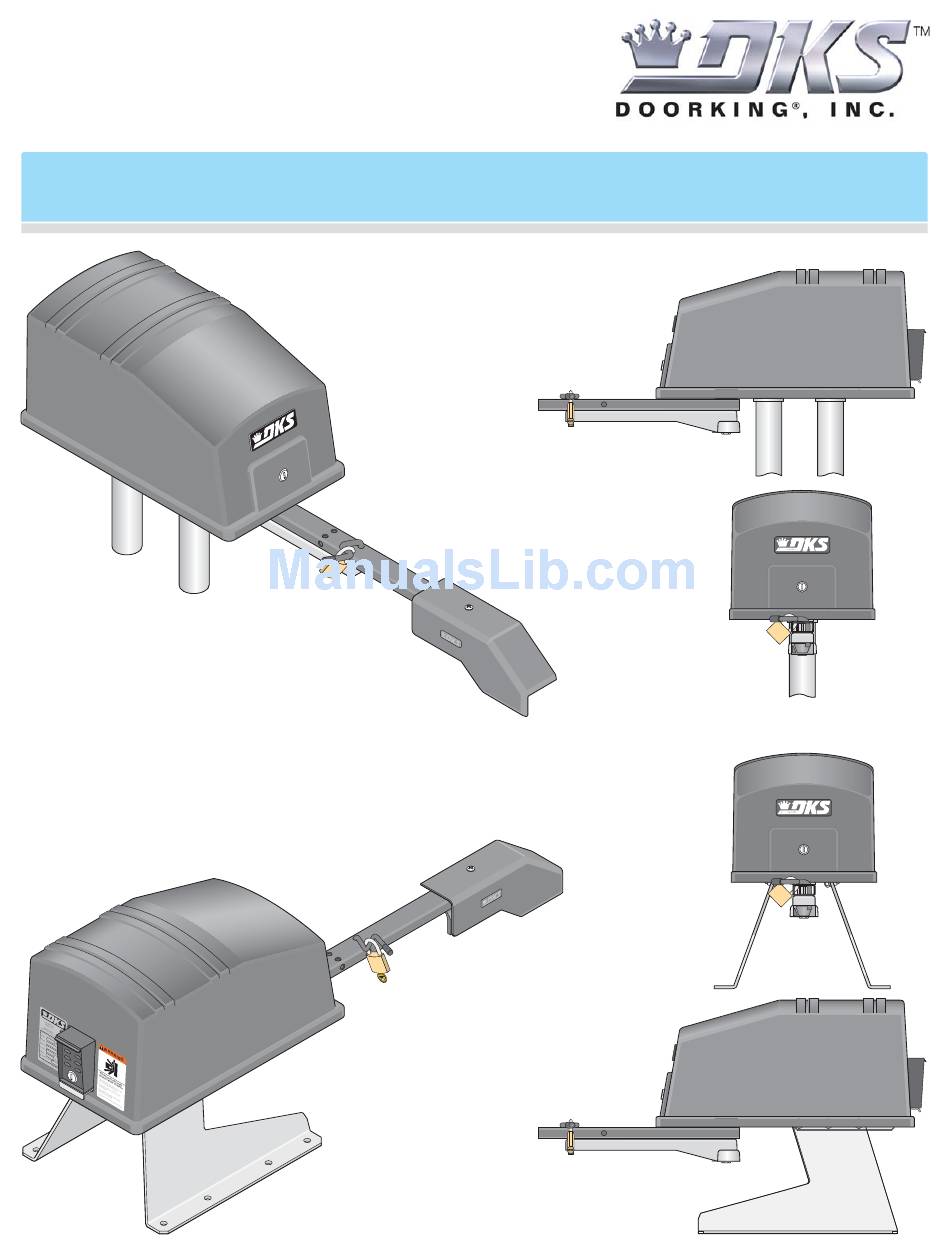

  • Page 1 Owner’s Manual Series 6050 and 6100 Series 6050 and 6100 Vehicular Swing Gate Operator Copyright 2008 DoorKing, Inc. All rights reserved.

  • Page 3: Arm Assembly

    1/2 HP 115 VAC Single-Phase Model 6050 1/2 HP – 4.3 Amps @ 120V ; Model 6100 1/2 HP – 5.4 Amps @ 120V Model 6050 - 400 Lbs. ; Model 6100 - 500 Lbs. Model 6050 - 10 Ft. ; Model 6100 - 14 Ft.

  • Page 4: Table Of Contents

    1.8 Installation of Warning Signs 1.9 Gates Opening Wider Than 90° SECTION 2 - WIRING 2.1 High Voltage Wire Runs 2.2 High Voltage Terminal Connection 2.3 Main Terminal Description 2.4 Auxiliary Terminal Description 2.5 Auxiliary Device Wiring TABLE OF CONTENTS 11-12 6050-065-L-11-08...
  • Page 5 SECTION 5 - OPTIONAL CONVENIENCE OPEN ADJUSTMENTS 5.1 Circuit Board 2340 Setup 5.2 DC System Description 5.3 DIP-Switch Settings SECTION 6 - MAINTENANCE AND TROUBLESHOOTING 6.1 Maintenance 6.2 Troubleshooting 6.3 Accessory Items Model 6050/6100’s Wiring Diagrams 6050-065-L-11-08 23-24 27-28 28-29 33-34 36-45...

  • Page 6: Gate Construction

    3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the perimeter reachable by a moving gate or barrier. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE. 6050-065-L-11-08...

  • Page 7: Important Notices

    Do not allow children to play in the area of the operator or to play with any gate-operating device. • To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel. 6050-065-L-11-08...

  • Page 8: Ul325 Entrapment Protection

    Swing and Vertical Barrier (arm) Primary Protection Secondary Protection A or C A, B1, B2, C or D A, B1, B2 or C A, B1, B2, C or D A, B1, B2, C or D A, B1, B2, C, D or E 6050-065-L-11-08...

  • Page 9: Glossary

    ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury. 6050-065-L-11-08...

  • Page 10: Swing Gate Requirements

    Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches. ASTM F2200 4.3 Closed Gates Pedestrians must be supplied with a separate Closed Gate With the hinge mounted on the corner of the pilaster, the entrapment area eliminated and protection is not required for this area. 6050-065-L-11-08...

  • Page 11: Swing Gate Protection

    Automatic Exit Loop (Optional) will provide an open command to the gate operator(s) when a vehicle is exiting the property. 6050-065-L-11-08 Reverse Loop Shadow Loop Reverse Loop Non-contact Sensor Minimizes the potential of the gate closing on vehicular or other traffic that loops cannot sense.

  • Page 12: Section 1 - Installation

    90° Open Gate Operator Output Shaft Centerline 43” Open Gate 90° Note: 2” thick gate Illustrated. 4” Operator Output Shaft Minimum distance required for arm clearance in the 3” 7.25” 6.75” 5” 35” open position. 6050-065-L-11-08...

  • Page 13: Post Mount Or Pad Mount Base Assembly

    (2) 1 inch bolts and nuts for support plate. (2) 1 1/2 inch bolts and nuts. For support plate. (3) Non-slip nuts. For existing threaded studs on bottom of operator. 6050-065-L-11-08 (2) 1” bolts through the main gear bracket mounting holes. Hardware for Post Mount: (2) 1 1/2”...

  • Page 14: Underground Conduit Requirements

    Left Support Leg Conduit Right Support Leg 2.5” Note: If allowed by local codes, the top of the concrete pad can be flush with ground level, which will allow the gate bracket to be mounted lower on the gate. 6050-065-L-11-08 22”...

  • Page 15: Post Mount

    This is the operator’s manual release option when the crank arm is unlocked. 6050-065-L-11-08 Note: 2” thick gate Illustrated. These measurements will work for standard or convenience open models from 1.1 layout on page 10 ONLY.

  • Page 16: Manually Adjust The Open And Closed Gate Positions

    Install the locking pin and padlock in the “Closed Arms Position”. The operator is now ready for AC power. Open Arms Position 90° Arms must be on the imaginary straight line. 6050-065-L-11-08...

  • Page 17: Gates Opening Wider Than

    Standard Operator Cover Note: Mount operator square to the fence line and NOT parallel to the open gate. 6050-065-L-11-08 Connecting arm’s pivot point measurement 62.25” minus (crank arm) 22.25” = 40” An imaginary line drawn from the closed gate bracket through the open gate bracket MUST intersect the operator output shaft.

  • Page 18: Section 2 - Wiring

    110 VAC power source with a 3% voltage drop on the power line, plus an additional 10% reduction in distance to allow for other losses in the system. This table illustrates the high voltage wire size and distance requirements. Model Type Amps Required 6050 Single 6050 Dual 6100 Single 6100 Dual 2.2 High Voltage Terminal Connection...

  • Page 19: Main Terminal Description

    1 amp maximum at 24-volts DC. • 24-volt DC magnetic lock power is provided constantly except when the gate is opening or open. 6050-065-L-11-08 115 VAC POWER NEUTRAL 115 VAC POWER NEUTRAL Output to Secondary Operator SW 1 115 VAC POWER INPUT...

  • Page 20: Auxiliary Terminal Description

    2351-010. Terminal 11 required only if the tracker board will activate the gate operator. Refer to the manual 2351-065 for Gate Tracker detailed information. (Quad Box Shown) Tracker LEDs 4502 4502 Auxiliary Terminal 1 2 3 4 5 6 6050-065-L-11-08...

  • Page 21: Control Wiring

    Keypad Lock Stand-Alone Card Reader Fire Box 24 V SW 1 SW 1, switch 3 must be ON. 6050-065-L-11-08 24 Volt Relay Red Open Green Close White Com DoorKing ONLY Power (24 Volt DC) and logic output. Power is shut off .5 sec.

  • Page 22: Loop Detector Wiring

    6 twists per foot. Reverse loop lead in wires are twisted approx. 6 twists per foot and are wired in series. Shadow loop lead in wires are twisted approx. 6 twists per foot. 6050-065-L-11-08...

  • Page 23: Primary / Secondary (Dual) Gate Connection

    Secondary operator contains NO 4502 control board. Secondary Operator Terminal Conduit Operator P r i Chassis Ground (Green) Secondary 6050-065-L-11-08 Operator Chassis Ground (Green) Gray (On select models) Primary Operator’s 2340 Convenience Open Circuit Board b l e c t i...

  • Page 24: Section 3 - Adjustments

    SW 2 Board Ground Loop Loop Detector 9410 Power Loop Loop Detector 4502 9409 Auto-Close Timer Auto-close timer (when turned on) SW 1, switch 4. SW 1 Adjust from 1 second (full counter clockwise) to approximately 23 seconds (full clockwise). 6050-065-L-11-08...

  • Page 25: Dip-Switch Settings

    Switch 7 Sets up the circuit board for single or primary / secondary (dual) gate operation. Switch 8 If the gate is forced open, the tamper-protect system will start the motor in the close direction when the operator senses the forced open condition. 6050-065-L-11-08 SW 1 (Top 8 Switches) Relay activates when gate is open.

  • Page 26: Dip-Switch Sw 2 Settings

    Terminal 15 is a Shadow input. Gate will NOT stop during the close cycle. Primary and secondary operators start at the same time. Secondary operator starts 1-2 seconds prior to the primary operator. Leave in the OFF position. Leave in the OFF position. Description 6050-065-L-11-08...

  • Page 27: Automatic Limit Adjustment

    The secondary system (Revering sensor) is completely automatic and will be activated if the clutch fails to slip when an obstruction is sensed during the open or close cycle. This feature requires no adjustment by the installer or end user. 6050-065-L-11-08 The arms MUST be in the Jamb Nuts...

  • Page 28: Hard Shutdown

    NO ONE SHOULD CROSS THE PATH OF THE MOVING Reset Switch - Used to turn off the entrapment alarm and to reset the operator after a hard shutdown has occurred. Alarm Speaker AC Power Switch - Powers the operator ON (toggle up) or OFF (toggle down). GATE. 6050-065-L-11-08...

  • Page 29: Shutdown Conditions

    After 5 minutes, the audio alarm will “chirp” every 5 seconds. This indicates that the operator is in a hard shutdown condition and the reset switch must be activated to reset the operator and silence the alarm. 6050-065-L-11-08 Continued on next page...

  • Page 30: Shutdown Conditions

    3. In the event of a primary (AC) power failure and a back-up system (DC) power failure (low charged or dead batteries for example), the system must have a release system to allow the gate to be manually operated. 6050-065-L-11-08...

  • Page 31: Manual Gate Operation

    In addition to FAIL-SAFE manual operation, this operator also employs a locked release pin to place the gate in manual operation when primary (AC) power is removed. • NO AC power. • NO DC power. 6050-065-L-11-08 turn power to the operator OFF. If a backup power system is in • NO AC power Available. • NO DC power.

  • Page 32: Section 5 - Optional Convenience Open Adjustments

    “automatically re-key” the gate operator (switch 3 ON) to establish normal operation, or can be set to require a “manual input” from the 2340 OR 4502 circuit board (switch 3 OFF) before the operator resumes normal operation. 6050-065-L-11-08...

  • Page 33: Dc System Description

    When AC power is restored, a 1-second pulse is sent to the gate operator input to automatically restore normal operation. Must be in the OFF position for the 6050 and 6100. Must be in the OFF position. Gate will automatically or manually OPEN and stay open during an AC power failure.

  • Page 34: Section 6 - Maintenance And Troubleshooting

    Check secondary (external) reverse device(s) stop or reverse the gate when activated. Inspect for wear and proper alignment. Complete check of gate and gate operating system. Monthly Interval ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 6050-065-L-11-08...

  • Page 35: Troubleshooting

    If the secondary motor runs in both directions, replace the control board. If secondary motor does not run, or runs in only one direction, problem can be in the wiring from the primary to secondary operator, bad secondary motor or motor capacitor. 6050-065-L-11-08 Possible Solution(s) Continued on next page...
  • Page 36 • Check that the DC system power switch is in the ON position. AC power outage. • Check the batteries for proper voltage. Replace if necessary. • Replace the DC system circuit board. Possible Solution(s) 6050-065-L-11-08...

  • Page 37: Accessory Items

    6.3 Accessory Items The following accessory items are available for the model 6050 and 6100 swing gate operators. Contact Sensors - For use as a secondary entrapment protection device. Miller Edge, Inc., MGO20, MGR20, MGS20 Photo Cell - Non-contact (photo-cells) sensors for use as a secondary entrapment protection device.

  • Page 38: Model 6050/6100'S Wiring Diagrams

    Limit Sensor Blue Yellow Brown Orange White Black Chassis Ground NEU HOT 115 VAC 6050 1/2 HP - 4.3 amp 6050 30uf Capacitor 6100 1/2 HP - 5.4 amp 6100 50uf Capacitor Blue Blue White Ground Board Ground POWER Yellow...
  • Page 39 Batteries White Black/White Purple Red/White 2340 White Convenience Outlets Neutral White Yellow Reset Brown Brown Alarm DC Power AC Power 6050-065-L-11-08 Magnetic Limit Sensor Blue Green Purple Yellow Brown Green Orange White White Power Chassis Ground NEU HOT 115 VAC...
  • Page 40 Model 6050 / 6100 Secondary Operator 6050 1/2 HP - 4.3 amp 6100 1/2 HP - 5.4 amp White Blue Ground 6050 30uf Capacitor 6100 50uf Capacitor Magnetic Limit Sensor Orange Brown Yellow Blue 8. Gray Orange 7. Orange Brown 6.
  • Page 41 Model 6100 Secondary Operator / Convenience Open 1/2 HP White Blue Ground 50uf Capacitor Red/White Red/White DC Power Batteries 6050-065-L-11-08 Magnetic Limit Sensor Orange Brown Yellow Blue Black/White Black Green Orange White Brown Yellow Purple White Blue 2340 8. Gray 7.
  • Page 42 Owner’s Manual Series 6050 and 6100 Series 6050 and 6100 Vehicular Swing Gate Operator DoorKing, Inc. 120 Glasgow Avenue Inglewood, California 90301 U.S.A. Phone: 310-645-0023 Fax: 310-641-1586 www.doorking.com 6050-065-L-11-08...
