- Page 1 M-130 PLUS MULTI STANDARD PROGRAMMABLE 27 MHz CB MOBILE TRANSCEIVER OWNER'S MANUAL...
- Page 2 (to EC Directive 2006/95, 2004/108, 99/5) DECLARATION OF CONFORMITY With the present declaration, we certify that the following products : INTEK M-130 PLUS comply with all the technical regulations applicable to the above mentioned products in accordance with the EC Directives 2006/95/EC, 2004/108/EC, 99/5/EC.
-
Page 3: Table Of Contents
With a correct use of the product in accordance with the operating method described in this manual, the product will offer a trouble free use for many years. INTEK is constantly engaged to develop and provide quality products meeting the customers requirements, however any suggestion or comment on this product that might help us to improve quality are warmly welcome. -
Page 4: Controls, Indicators And Operation

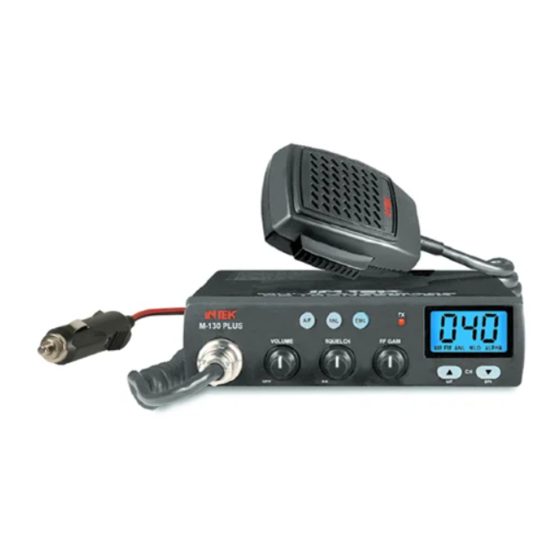

Controls, Indicators and operation Front Panel M-130 PLUS VOLUME SQUELCH RF GAIN AM FM HILO ALPHA A/F Key This key allows to select the AM or FM operating mode, in both TX and RX. The AM/FM operating mode selection is possible only if it if allowed by the programmed frequency band, otherwise the AM/FM selection is not possible. - Page 5 Controls, Indicators and operation LCD Display AM FM HILO ALPHA Channel Number It indicates the operating channel number or the frequency band ID code. ALPHA Icon The ALPHA Icon (B) is lighted when an intermediate channel is selected. This feature is not available on the radios for the European Market. LO Icon The LO Icon (C) is lighted when the transmitter is in LOW POWER mode (1W).
- Page 6 Controls, Indicators and operation AS/SQUELCH Control SQUELCH CONTROL (SQUELCH manual adjustment) The SQUELCH control allows to silent the receiver by cutting the background noise, when no signals are received. Turn the knob clockwise until the background noise is cut. Turn the knob counter clockwise (SQUELCH opening) in order to listen to the weakest signals.
- Page 7 Controls, Indicators and operation Microphone PTT (Push-to-Talk) Key Transmitter key. Press the PTT key (15) to transmit and release it to return to the receive mode. MICROPHONE Plug 4-pin microphone connector with locking ring. Connect it to the microphone connector on the front panel of the radio. IMPORTANT ! Do never attempt to open the cabinet of the transceiver.
-
Page 8: Installation
Installation Installation Before installing the main unit in the vehicle, check and select the most convenient location, in order that the radio will be easy to reach and comfortable to operate, without disturbing or interfering with the vehicle drive. Use the supplied bracket and hardware to install the radio. -
Page 9: Installing And Connecting The Mobile Antenna With Magnet Base (Full Kit Version)
Installing and connecting the mobile antenna with magnet base FULL KIT VERSION Installing and connecting the mobile antenna with magnet base A 27 MHz mobile antenna with magnet base and 4m RG-58/U is included in the kit. Connect the whip (A) to the magnet base and tighten the locking screw (B) using the supplied tool. -
Page 10: Frequency Bands Table - User Information
Frequency bands table - User Information Frequency Bands Table The transceiver INTEK M-130 PLUS includes an advanced multi-standard programmable circuit, which allows to program different frequency bands, specifications and operating modes, in conformity with the regulations in the country where the product is used. 9 programmable frequency bands are available, as per the below table :... -
Page 11: Frequency Band Selection / Programming
Frequency band selection / programming Frequency Band Selection / Programming This two-way CB radio must be programmed and exclusively used on a frequency band allowed in the country where the product is used. When radio is switched ON, the current programmed frequency band code will be displayed (blinking) for about 3 seconds. -
Page 12: Specifications
Specifications Specifications General Channels 40 FM (refer to the frequency bands table at page 8) Frequency range 27 MHz Citizen Band Frequency control P.L.L. Operatine temperature -10°/+55°C DC input voltage 13.2Vdc ±15% Size 140 (L) x 37 (H) x 190 (D) mm Weight 750 gr. -
Page 13: Table Of Restrictions On The Use Of Cb Transceivers
Table of restrictions on the use of CB transceivers COUNTRY CB Introd. Use restrictions and other comments Settings AUSTRIA Not allowed 40 CH - 4W FM - Individual license is required BELGIUM 40 CH - 1W AM - Individual license is required DENMARK 40 CH - 4W FM - Free use 40 CH - 4W FM - Free use...
